Products

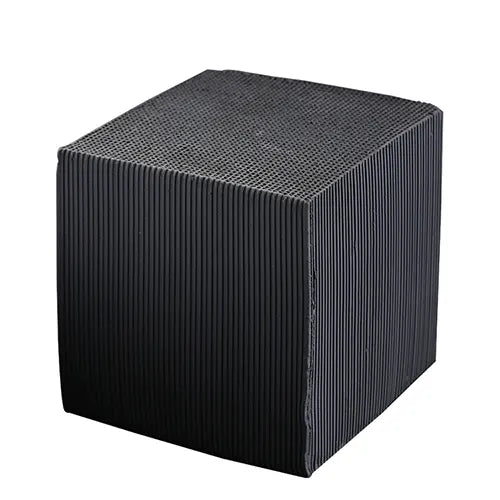

Specification (mm) 100*100*100   100*100*50 100*100*20 Aperture (mm) 1.53 / 1.58 Hole Distance (mm) 2 Filter Resistance ≤250Pa Carbon T...

Technical Data

Technical Data

Technical specifications can be customized based on airflow requirements, installation conditions, and filtration targets. Contact us for detailed ...

Standard sizes and multiple bag configurations are available for different airflow requirements and filtration targets. Custom specifications can a...

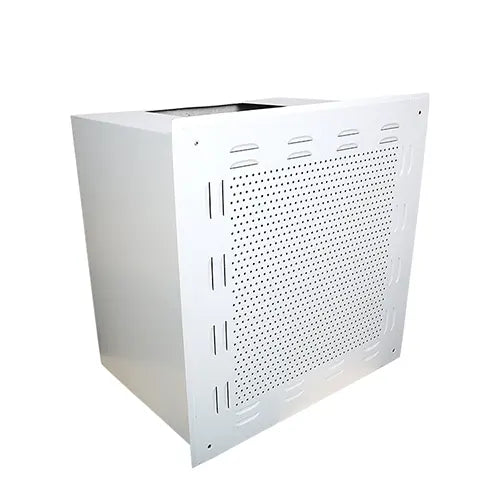

Multiple models are available to meet different airflow capacities, installation directions, and room layout requirements. Customized configuration...

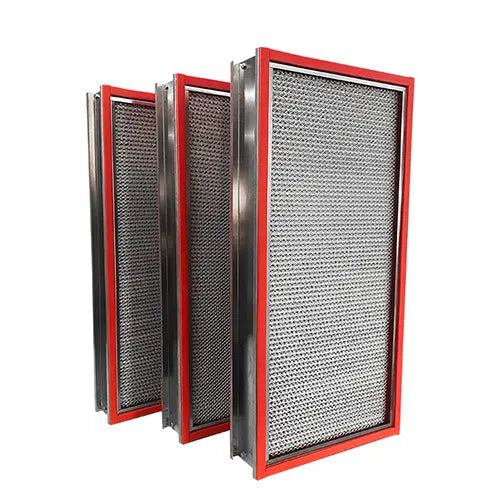

Filtration Grade Dimensions (mm) W*H* D Filter Area (㎡) Rated Air Flow (m³/h) Wind Velocity Test (m/s) Initial Resistance (Pa) H13 610*610*120...

Filtration Grade Dimensions (mm) W*H* D Initial Resistance (Pa) Final Resistance (Pa) Wind Velocity Test (m/s) Average Weight Efficiency G3 50...

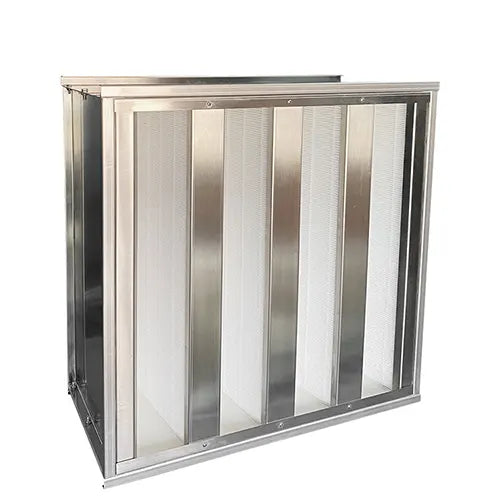

Dimensions (mm) W*H* D 595*595*550 / 6P Filtration Grade G4 M5 M6 F7 F8 F9 Air Flow (m³/h) 3400 3400 3400 3400 3400 3400 Initial Resistanc...

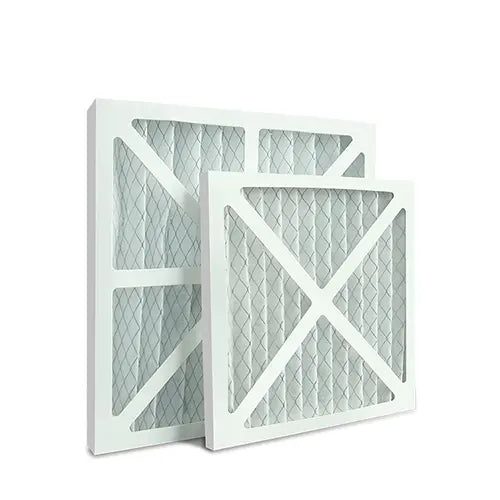

Filtration Grade Arrestance Wind Velocity Test (m/s) Initial Efficiency Initial Resistance (Pa) Dust Holding Capacity (g/㎡) G3 91% 0.2 <15 ...

Technical Data

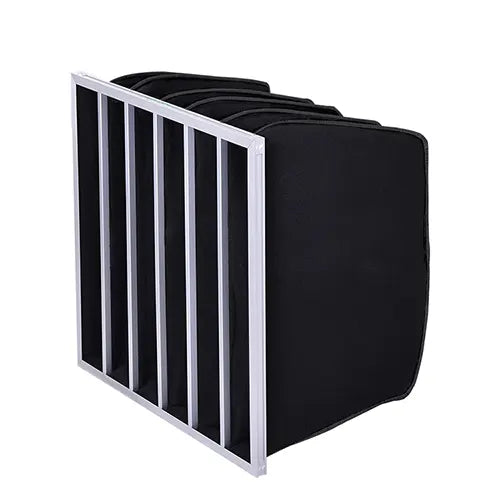

Filtration Grade Dimensions (mm) W*H*D Number of Bags Filtration Area (m²) Rated Air Volume (m³/h) Initial Resistance (Pa) F...

Technical Data

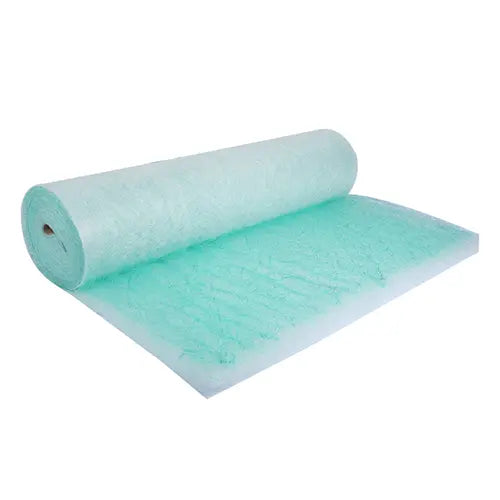

Model PA-50/60 PA-100 Thickness (mm) 50/60 100 Weight (g/㎡) 240 320 Wind Velocity Test (m/s) 0.7-1.5 0.7-1.5 Initial Resistance (Pa) 15 ...

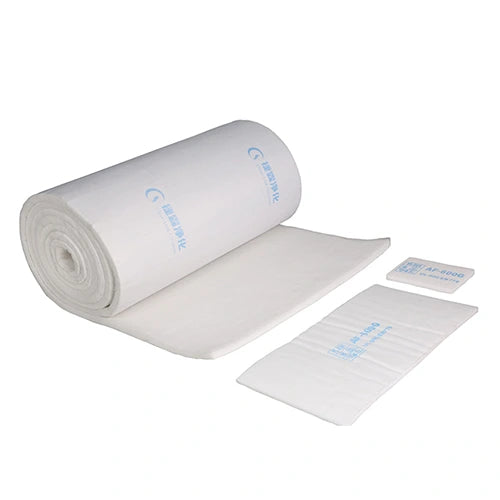

Material 100% POLYESTER FIBRES Model AF-600G Normal Thickness (mm) 20±3 Weight (g/㎡) 600 Wind Velocity Test (m/s) 0.25 Initial Resista...

Material 100% POLYESTER FIBRES Model C-600G Normal Thickness (mm) 20±3 Weight (g/㎡) 600 Wind Velocity Test (m/s) 0.25 Initial Resista...

Material 100% POLYESTER FIBRES Model CL-600G Regular Thickness (mm) 20±3 Weight (g/㎡) 600 Wind Velocity Test (m/s) 0.25 Initial Resist...
