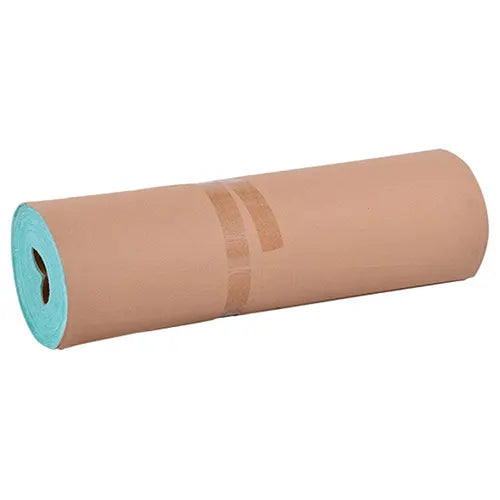

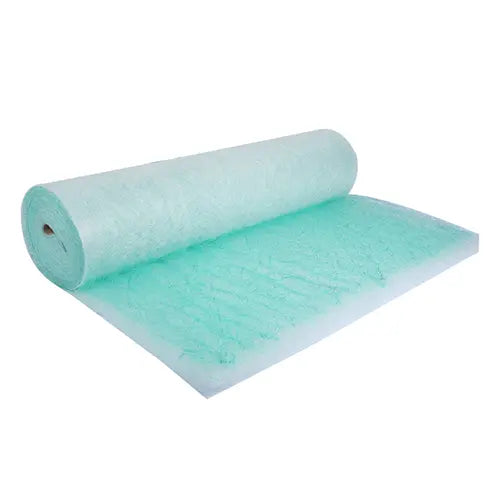

Paint Booth Exhaust Fiberglass Filter overspray arrestor Media roll

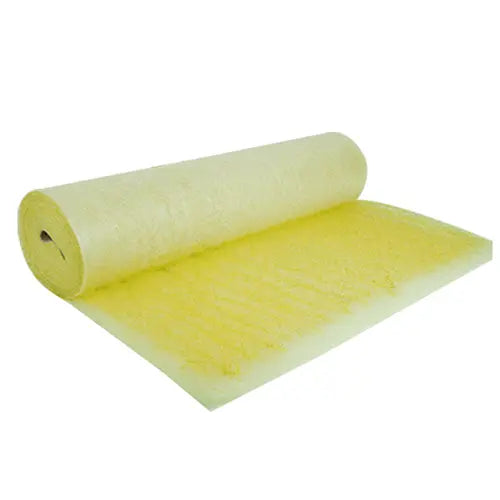

Paint Booth Exhaust Fiberglass Filter overspray arrestor Media roll yellow

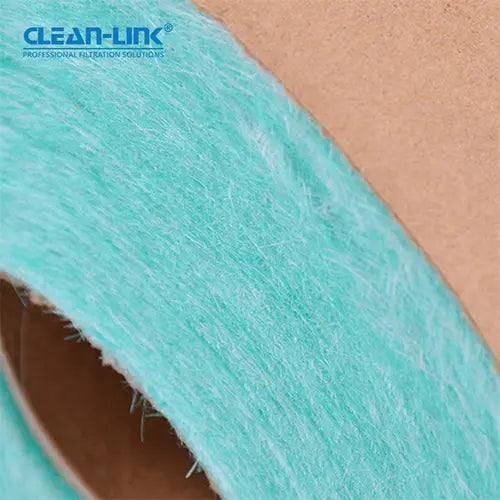

Paint Booth Exhaust Fiberglass Filter overspray arrestor Media roll details

Paint Booth Exhaust Filter Media Roll

EN779:

G3
G4

Features Applications Downloads Data Sheets

Features

商品特点

Grade: G3; MERV5, MERV6
Filter material: Fiberglass
Excellent paint arrestor for paint booths
Fluffy and bouncy structure for high-depth filtration
Graduated density multi-layers ensure high dust-holding capacity
Corrosion resistance: Uniquely suited in high solvent, acid-base, and high-temperature conditions
Customizable media sizes and thicknesses for different spray paint booth/room settings

Applications

商品应用场景

Our Paint Booth Filter Media Roll is a critical component for numerous industries, widely used in:

Automotive Paint Booths: In the automotive refinishing and manufacturing sectors where a pristine finish is non-negotiable, our filter media efficiently captures the heavy overspray generated during priming, base coating, and clear coating. This ensures a flawless, factory-quality finish on every vehicle.
Industrial Coating and Finishing: Ideal for coating lines for machinery, equipment, metal components, and plastics. This Paint Booth Exhaust Filter Media Roll effectively traps a wide array of industrial paints and coatings, helping to minimize the release of Volatile Organic Compounds (VOCs), protect employee health, and ensure environmental compliance.
Woodworking and Furniture Manufacturing: During the staining, varnishing, and painting of furniture, cabinetry, and other wood products, our filter media is essential for controlling overspray and removing fine particulates. This not only results in a smoother, higher-quality finish but also maintains a cleaner and healthier workshop by capturing harmful wood dust and finishing aerosols.

Specifications

Model	PA-50/60	PA-100
Thickness (mm)	50/60	100
Weight (g/㎡)	240	320
Wind Velocity Test (m/s)	0.7-1.5	0.7-1.5
Initial Resistance (Pa)	15	20
Final Resistance (Pa)	250	280
Temperature Resistance (℃)	170	170
Dust Holding Capacity (g/㎡)	3200-3600	3600-4900
Average Weight Efficiency	93%	96%

Technical Data

Paint Booth Exhaust Filter Media Roll data file

Why Choose Our Paint Booth Exhaust Filter Media Roll?

Our filter media is manufactured from unique filament fiberglass using advanced processes, guaranteeing unparalleled filtration performance for your spray booth.

Superior Paint Mist Arrestance: The media consists of bouncy and resilient layers of filament fiberglass. The ample and evenly distributed space between these filaments allows for an immediate bounce-back after compression. This unique physical property is vital for effectively capturing wet paint mist and tacky dust, trapping contaminants deep within the filter media instead of just on the surface.
Graduated Density for Extended Service Life: Our Paint Booth Exhaust Filter Media Roll features a multi-layered structure with a graduated density that increases in the direction of the airflow. This design enables high-depth filtration, where larger particles are trapped in the initial, more open layers, while finer particles are caught in the denser layers deeper inside. This technology prevents premature face-loading and clogging, dramatically increasing the filter's dust-holding capacity, extending its service life, and reducing your operational costs and replacement frequency.
Excellent Durability & Corrosion Resistance: Paint booth environments are harsh, with constant exposure to high-solvent chemicals, acids, bases, and high-temperature curing cycles. Our fiberglass Paint Booth Exhaust Filter Media Roll offers unique chemical stability and corrosion resistance, maintaining its structural integrity and filtration efficiency under these demanding conditions, making it a reliable and long-lasting choice.
Fully Customizable to Your Needs: We understand that every spray booth has unique specifications. That's why we offer a fully customizable Paint Booth Exhaust Filter Media Roll. You can specify the exact width, length, and thickness required for your equipment, ensuring a perfect fit and optimal performance for your specific application.
