Paint Booth Air Quality Can Affect Business and Health
Air filtration in paint booths is essential for maintaining both product quality and worker safety. By capturing airborne contaminants such as overspray, dust, and harmful fumes, air filters ensure that paint finishes remain smooth and free of defects.
They also protect workers from exposure to toxic chemicals, volatile organic compounds (VOCs), and particulate matter, creating a safer and healthier working environment.
Effective air filtration systems are critical in maintaining a controlled atmosphere, reducing environmental impact, and improving the overall efficiency of the paint booth.
Key Challenges in Paint Booths
1. Overspray Control
Paint booths face several challenges that impact both the quality of the finish and the overall operational efficiency.
One of the main issues is managing overspray, dust, and other airborne contaminants that can settle on painted surfaces, leading to imperfections and defects.
Proper filtration is crucial to capture these particles before they affect the quality of the finish.
2. Dust and Airborne Contaminants
Another challenge is maintaining a clean and controlled environment inside the booth.
The presence of dust and contaminants can significantly reduce the quality of the paint job, requiring more frequent touch-ups or rework.
Consistent air filtration helps to ensure that the air remains free of debris and that the environment stays sterile for optimal painting conditions.
3. Paint Fumes and Chemicals
Reducing the environmental impact of paint fumes and chemicals is an ongoing challenge for paint booths. Paints often contain harmful volatile organic compounds (VOCs) and other chemicals that can pose risks to both workers and the environment. Implementing effective air filtration systems, such as activated carbon filters, helps capture harmful fumes and reduce emissions, promoting a safer working environment and ensuring compliance with environmental regulations.
What Are Paint Booth Types?
1. Crossdraft Paint Booth
Airflow Pattern:
Air enters from the front of the booth and flows horizontally toward the exhaust filters at the rear.
Advantages
-
Cost-effective installation
-
Simple airflow design
-
Suitable for small repair shops
Considerations
-
Less uniform airflow distribution
-
Higher risk of overspray recirculation
Typical Filtration Setup
-

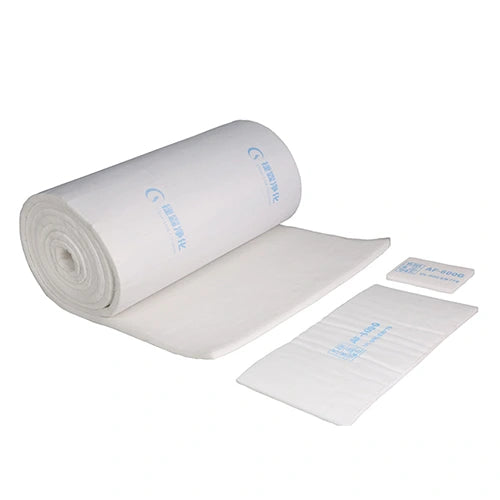

Intake ceiling pre-filters (G4–F5)
-
Rear exhaust paint arrestor filters
-
Optional secondary exhaust filtration
2. Semi-Downdraft Paint Booth
Airflow Pattern:
Filtered air enters from the upper front section of the booth and moves diagonally downward toward rear or floor exhaust.
Advantages
-
Improved finish quality compared to crossdraft
-
Moderate installation cost
-
Popular in automotive body shops
Technical Note
Semi-downdraft is considered a hybrid airflow system, combining horizontal and vertical airflow components.
3. Downdraft Paint Booth (Full Downdraft)
Airflow Pattern:
Air is evenly supplied through the full ceiling and drawn vertically downward through floor-level exhaust grates.
Advantages
-
Most uniform airflow
-
Highest surface finish quality
-
Superior overspray containment
Typical Applications
-
OEM automotive plants
-
High-end collision centers
-
Aerospace finishing
Filtration Requirements
-
High-efficiency ceiling diffusion filters (F5–F8)
-
Floor exhaust paint arrestor media
-
Optional carbon or HEPA post-filtration (VOC-sensitive regions)
Downdraft systems dominate high-performance markets in North America and Europe.
4. Side-Draft (Side-Downdraft) Paint Booth
Airflow Pattern:
Air is supplied from the ceiling and exhausted through lower side wall plenums instead of the floor.
Technical Clarification
Side-draft is considered a modified downdraft configuration.
It offers downdraft-like performance without full floor pit construction.
Benefits
-
Reduced construction complexity
-
Easier retrofit installation
-
Balanced airflow control
5. Updraft (Reverse-Flow) Paint Booth
Airflow Pattern:
Air enters from the floor level and exits through ceiling-mounted exhaust filters.
Market Presence
-
Less common in modern automotive markets
-
Occasionally used in industrial coating lines
Updraft is sometimes referred to as Reverse-Flow, but “Updraft” is the more widely used technical term.
Airflow Types vs. Booth Configurations
It is important to distinguish between:
Airflow Patterns
-
Crossdraft
-
Semi-Downdraft
-
Downdraft
-
Side-Draft
-
Updraft
Structural Configurations
-
Open Face Booth
-
Fully Enclosed Booth
-
Conveyorized Paint Booth
-
Pressurized Booth
These are independent classifications.
What Are The Differences?
Each type of paint booth has a specific performance for the different painting processes.
Check the comparison chart below to learn about the differences.
Paint Booth Types Comparison
Air Filter Types Used in Different Paint Booth Designs
The filtration strategy in a paint booth depends on:
-
Airflow pattern
-
Regulatory requirements
-
Production volume
-
Finish quality expectations
Paint booth filtration is typically divided into three zones:
-
Supply Air Filtration (Ceiling / Intake)
-
Overspray Capture Filtration (Exhaust Zone)
-
Optional Emission Control (VOC / Fine Particulate Stage)
Crossdraft Paint Booth
Typical Filters Used
-
Intake Pre-Filters (G4 / MERV 7–8)
-

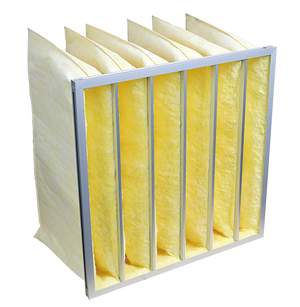

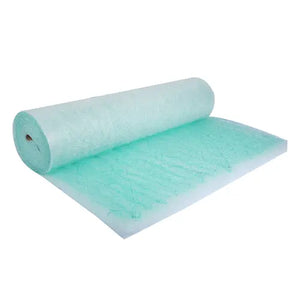

Fiberglass Paint Arrestor Filters (Rear Exhaust)
Description
Crossdraft booths rely primarily on rear-wall exhaust filtration to capture overspray. Ceiling filtration is typically limited to basic pre-filtration.
Why
Horizontal airflow carries overspray directly toward rear filters. The exhaust filters must handle large particle loading and high overspray volume.
HEPA filtration is rarely used unless emission regulations require it.
Downdraft Paint Booth (Full Downdraft)
Typical Filters Used
-
Full Ceiling Diffusion Filters (F5–F8 / MERV 10–13)
-
Floor Exhaust Paint Arrestor Media
-
Optional Secondary Exhaust Filters
-
Optional Activated Carbon (VOC Control)
Description
Downdraft systems require high-efficiency ceiling filtration to ensure uniform airflow and prevent contamination of high-end finishes.
Why
Because airflow is vertical and uniform, any ceiling contamination directly affects surface quality. Therefore, higher-grade intake filters are standard.
HEPA filters are typically reserved for:
-
Aerospace
-
Medical-grade coating
-
Strict emission zones
Side-Draft Paint Booth
Typical Filters Used
-
Ceiling Intake Filters (F5–F8)
-
Lower Side Exhaust Arrestor Filters
-
Optional Secondary Exhaust Filters
Description
Side-draft booths function similarly to downdraft systems but exhaust through side wall plenums instead of floor grates.
Why
Balanced airflow requires controlled intake filtration and effective side exhaust overspray capture.
Semi-Downdraft Paint Booth
Typical Filters Used
-
Partial Ceiling Intake Filters
-
Rear or Lower Exhaust Arrestor Filters
-
Optional Secondary Exhaust Filtration
Description
Semi-downdraft systems use partial ceiling filtration with angled airflow toward rear exhaust zones.
Why
Filtration requirements are moderate compared to full downdraft systems, balancing performance and cost.
Updraft (Reverse-Flow) Paint Booth
Typical Filters Used
-
Floor-Level Intake Filters
-
Ceiling Exhaust Arrestor Filters
-
Optional Secondary Exhaust Filtration
-
Optional Activated Carbon
Description
Updraft booths draw air upward, requiring floor intake protection and ceiling overspray filtration.
Why
Contaminants move upward, requiring durable exhaust media capable of handling concentrated overspray.
