Compact & V-Bank Filters

Clean-Link supplies compact and V-bank filters for commercial HVAC systems, industrial air handling units, data centers, laboratories, public buildings, and other applications where airflow, filtration efficiency, pressure drop, and installation space must be carefully balanced.

With a large media area arranged in compact or V-shaped filter packs, these filters can support high airflow, controlled resistance, and practical service life within a rigid, space-efficient structure.

Available options can include different efficiency requirements, custom dimensions, rigid frame materials, gasket configurations, and project-based airflow and pressure drop review.

Compact & V-Bank Filter Products

Compact V-Bank Filter

A rigid high-media-area filter for commercial HVAC, industrial ventilation, and high-airflow applications.

Typical options:

• Custom dimensions
• Different efficiency levels
• Rigid frame construction
• Multiple V-shaped media packs
• Gasket options
• Airflow and pressure drop review

Compact High-Efficiency V-Bank Filter

Designed for HVAC and industrial systems that require higher filtration efficiency within limited installation space.

Typical options:

• High-efficiency media
• Custom frame dimensions
• High media area
• Rigid construction
• Project-specific airflow
• Gasket configuration

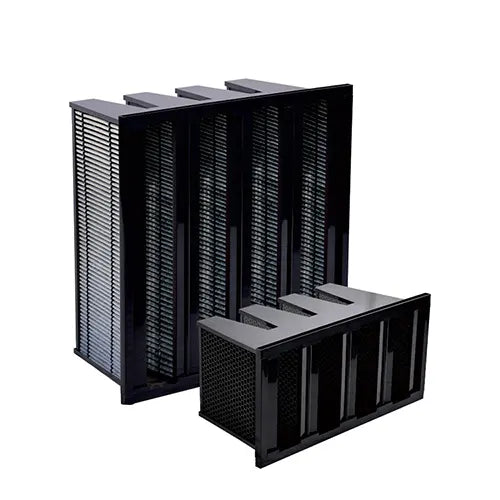

V-Bank Activated Carbon Filter

For applications that require particulate filtration support together with selected odor or gaseous contaminant control.

Typical options:

• V-bank rigid structure
• Activated carbon media
• Custom dimensions
• Commercial HVAC
• Industrial ventilation
• Project-specific carbon configuration

Related category: Activated Carbon Filters

Custom Compact Filter

For non-standard HVAC systems, replacement projects, OEM equipment, or project-specific installation requirements.

Custom options may include:

• Length, width and depth
• Frame material
• Media type
• Efficiency requirement
• Number of V packs
• Gasket
• Rated airflow
• Pressure drop target
• OEM packaging
• Drawing or sample matching

Request Custom Specification →

What Are Compact & V-Bank Filters?

Compact and V-bank filters are rigid air filters designed with multiple pleated media packs arranged in a compact or V-shaped configuration.

This structure increases the effective filtration area within a limited filter footprint.

Compared with a flat panel filter, the larger media area can help support:

• Higher airflow
• Lower media face velocity
• Pressure drop control
• Higher filtration efficiency
• Greater dust-holding potential
• Compact installation
• Rigid structural support

Actual filter performance depends on media type, efficiency, total media area, filter depth, airflow, face velocity, and operating conditions.

Why Use Compact or V-Bank Construction?

High Media Area

One of the main advantages of compact and V-bank construction is the larger amount of filter media that can be installed inside a rigid frame.

More media area can help distribute airflow across the filter and reduce loading intensity on each section of media.

This can be useful in systems that operate at higher air volumes.

High Airflow Capability

Compact and V-bank filters are commonly used in air handling systems where the filter face area is limited but airflow requirements are relatively high.

Typical applications include:

• Commercial AHUs
• Industrial ventilation systems
• Data center cooling
• Public buildings
• Laboratories
• Pharmaceutical HVAC systems
• Airports
• Rail transit
• OEM ventilation equipment

The actual rated airflow should always be confirmed from the product specification.

Pressure Drop Control

The larger media area of a V-bank structure can help support lower media velocity and more practical pressure drop at the required airflow.

However, “V-bank” does not automatically mean low pressure drop.

Actual resistance depends on:

• Filter media
• Efficiency
• Number of media packs
• Pleat geometry
• Filter depth
• Rated airflow
• Face velocity
• Dust loading

Clean-Link can review filter resistance together with system airflow when selecting a compact or V-bank filter.

Compact Filters vs Pocket Filters

Compact filters and pocket filters can both provide higher media area than basic panel filters, but their structure and application are different.

Neither filter type is universally better.

The correct choice depends on:

• Available installation depth
• Airflow
• Dust load
• Efficiency
• Pressure drop
• Service interval
• Housing design

Related category: Pocket Filters

Compact Filters vs Panel Filters

Panel filters are typically used for coarse or intermediate filtration, while compact filters are often selected for higher airflow or higher-efficiency stages.

Compact filters are commonly used downstream of panel or pocket prefilters in staged filtration systems.

Efficiency Options

Compact and V-bank filters can support different efficiency requirements depending on application and media selection.

Possible project requirements may include:

• ISO 16890 classifications
• MERV-related requirements
• Higher-efficiency fine filtration
• Project-specific performance targets

For general ventilation filters, ISO 16890 provides the current international classification framework based on particulate matter efficiency groups such as ePM1, ePM2.5 and ePM10.

Efficiency should be selected together with:

• Airflow
• Pressure drop
• Dust load
• Fan capability
• Filter stage
• Application
• Replacement planning

Higher efficiency alone does not automatically mean better system performance.

Frame Options

Compact and V-bank filters require rigid frames to support multiple media packs.

Depending on project requirements, possible frame options may include:

• Plastic composite frame
• Galvanized steel frame
• Aluminum frame
• Custom rigid frame
• Header frame
• Box-style configuration

Frame selection should consider:

• Housing dimensions
• Filter weight
• Installation method
• Mechanical strength
• Corrosion exposure
• Temperature
• Gasket requirements
• Replacement handling

Gasket and Sealing Options

Proper sealing helps reduce air bypass around the filter.

Clean-Link can support:

• Upstream gasket
• Downstream gasket
• Full-face gasket
• Custom gasket position
• Foam gasket
• EPDM gasket where applicable

The gasket should match the filter housing and compression surface.

Related guide: Air Filter Bypass Leakage

Airflow and Pressure Drop

Compact and V-bank filters are often selected because airflow and installation space must be balanced.

Important parameters include:

For replacement projects, matching external dimensions is not enough. Airflow and pressure drop should also be reviewed.

Related guide: Air Filter Pressure Drop

Compact & V-Bank Filters for Data Centers

Data centers often require high airflow to support cooling systems and protect equipment.

Compact and V-bank filters may be useful where:

• Air volume is high
• Installation space is limited
• Pressure drop matters
• Fine particle control is required
• Stable airflow is important
• Replacement intervals need to be manageable

Filter selection should consider the complete cooling and ventilation strategy rather than only filter efficiency.

Related page: Data Center Air Filtration

Compact Filters for Commercial Buildings

Commercial HVAC systems may use compact filters where higher filtration performance is required within limited AHU space.

Applications can include:

• Office buildings
• Shopping malls
• Hotels
• Schools
• Hospitals
• Airports
• Public buildings
• Transportation hubs

The filter should be selected according to air quality goals, airflow, fan capacity, system resistance, and maintenance requirements.

Industrial V-Bank Filter Applications

Compact and V-bank filters are also used in industrial ventilation systems.

Typical applications include:

• Manufacturing plants
• Pharmaceutical facilities
• Biotechnology facilities
• Electronics production
• Food processing
• Laboratories
• Industrial HVAC
• Process ventilation
• Equipment intake
• OEM systems

For industrial environments, dust concentration and upstream filtration should also be reviewed.

Related page: Industrial Air Filtration Solutions

Staged Filtration with Compact Filters

Compact filters are often used as part of a staged filtration system.

A common arrangement may include:

1. Prefilter
2. Pocket filter or medium-efficiency stage
3. Compact or V-bank filter
4. HEPA filter where required

Staged filtration can help:

• Reduce loading on higher-efficiency filters
• Manage pressure drop
• Support longer service intervals
• Protect downstream components
• Improve maintenance planning

Related guide: Multi-Stage Air Filtration Systems

Standard and Custom Compact Filter Sizes

Clean-Link can support standard and custom compact filter sizes.

Custom requirements may include:

• Length
• Width
• Depth
• Number of V packs
• Frame material
• Header configuration
• Efficiency requirement
• Media type
• Gasket position
• Rated airflow
• Pressure drop target
• OEM packaging
• Labeling
• Drawing-based production

For non-standard or replacement projects, actual dimensions should be confirmed.

Related page: Custom Air Filter Manufacturer

Replacement Compact & V-Bank Filters

Replacing an existing compact filter requires more than matching the outside dimensions.

Buyers should confirm:

If full information is unavailable, start with:

Photo + dimensions + application

How to Select a Compact or V-Bank Filter

Before requesting a quotation, provide as much of the following as possible:

• Application
• Filter dimensions
• Efficiency requirement
• Rated airflow
• Pressure drop target
• Frame type
• Gasket requirement
• Installation depth
• Current filter model or photo
• Dust concentration
• Operating hours
• Prefiltration stage
• Quantity
• Packaging requirement

The key point is:

Compact and V-bank filters should be selected according to airflow, media area, filtration efficiency, pressure drop, and available installation space—not size alone.

Request a Compact & V-Bank Filter Quote

Need compact or V-bank filters for a commercial HVAC system, industrial facility, data center, laboratory, or OEM project?

Send Clean-Link:

• Filter dimensions
• Efficiency requirement
• Rated airflow
• Pressure drop requirement, if available
• Frame type
• Gasket configuration
• Application
• Current filter photo or drawing
• Quantity

If you do not have the complete specification, start with:

Photo + dimensions + application

Clean-Link can help review what should be confirmed next.

Request a Quote →

FAQ

What is a compact air filter?

A compact air filter uses a rigid frame with pleated media packs arranged to provide more filtration area than a flat filter within a controlled installation depth.

What is a V-bank filter?

A V-bank filter uses multiple pleated media packs arranged in a V-shaped configuration to increase media area and support higher airflow within a compact frame.

What are compact and V-bank filters used for?

They are commonly used in commercial HVAC, industrial ventilation, data centers, laboratories, public buildings, pharmaceutical facilities, and other high-airflow systems.

Are compact filters low pressure drop?

Not automatically. Pressure drop depends on filter media, efficiency, media area, airflow, face velocity, filter depth, and loading.

Are compact filters better than pocket filters?

Not universally. Compact filters provide a rigid structure and controlled depth, while pocket filters often provide high dust-holding capacity with flexible bag construction. The better option depends on the system.

Can compact and V-bank filters be customized?

Yes. Custom options may include dimensions, frame material, number of V packs, media, efficiency, gasket, airflow, pressure drop, and packaging.

Which efficiency ratings are available?

Available efficiency depends on filter design and media. Project requirements may reference ISO 16890, MERV, or other specified classifications.

What information is needed for a quote?

Provide dimensions, efficiency requirement, airflow, pressure drop if available, frame type, gasket, application, quantity, and an existing filter photo or drawing where possible.
