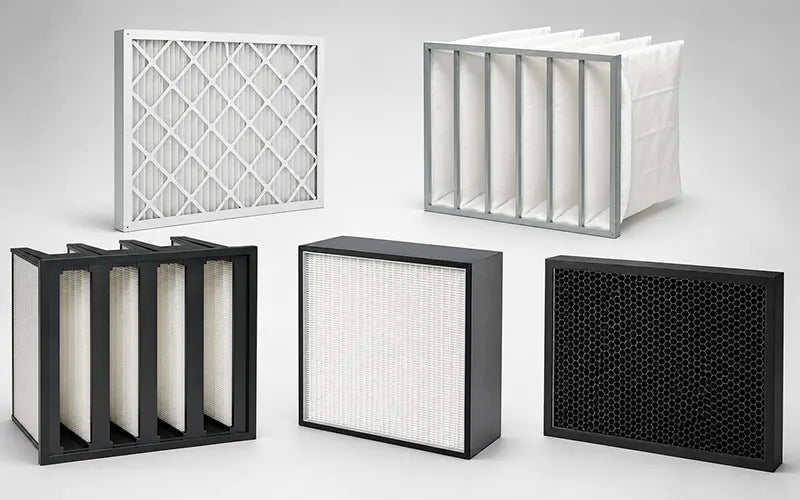

Multi-Stage Air Filtration Systems: Prefilters, Fine Filters, HEPA, and Carbon Layers

A high-efficiency air filtration system is rarely built around one filter alone. In commercial HVAC, industrial ventilation, cleanrooms, paint booths, healthcare facilities, and high-occupancy public buildings, the most reliable approach is usually a staged design.

Multi-stage air filtration systems combine different filter types so that each stage handles a specific part of the contamination load. A prefilter captures larger dust first. A fine filter controls smaller airborne particles. A HEPA filter may be used as a final stage where high particle control is required. Activated carbon can be added when the system also needs to address specific gases, odors, or VOC-related contaminants.

This structure helps protect downstream filters, manage pressure drop, improve service life, and support more stable HVAC performance. It also allows buyers to select the right level of filtration for the application instead of over-specifying every filter stage.

For general ventilation, ISO 16890 classifies particulate filters by PM-related performance, including ISO Coarse, ISO ePM10, ISO ePM2.5, and ISO ePM1. Filters with higher initial efficiency than the scope of ISO 16890 are evaluated under other applicable methods, including ISO 29463 for high-efficiency filters.

What Is a Multi-Stage Air Filtration System?

A multi-stage air filtration system uses two or more filters arranged in sequence inside an air handling unit, ventilation system, or dedicated filtration housing.

A typical arrangement may include:

1. Prefilter for larger dust and debris
2. Fine filter for smaller particulate matter
3. HEPA filter for critical particle-control applications
4. Activated carbon filter for targeted gaseous contaminants

Not every HVAC system needs all four stages. The correct configuration depends on the application, local air quality, contamination source, required cleanliness level, available fan capacity, maintenance plan, and total cost of ownership.

The core purpose is simple: use lower-cost, lower-resistance filters upstream to protect more sensitive and higher-cost filters downstream.

Stage 1: Prefilters for Coarse Dust Protection

Prefilters are the first filtration stage in many HVAC systems. They are designed to capture larger particles such as visible dust, fibers, lint, pollen, and general airborne debris before those contaminants reach downstream filters, coils, fans, and ductwork.

Common prefilter formats include:

• Panel & Pleated filters
• Paper frame filters
• Metal mesh filters
• Coarse synthetic media filters

In general ventilation systems, prefilters may be selected using ISO Coarse or ISO ePM10 performance, depending on the required duty and local dust conditions.

The main role of a prefilter is not to deliver final fine-particle filtration. Its role is to reduce dust loading on the next filter stage. This can improve the service life of pocket filters, compact filters, V-bank filters, and HEPA filters.

Stage 2: Fine Filters for Smaller Particle Control

Fine filters are commonly used after prefilters when a system requires stronger control of smaller particles. They are often selected for commercial buildings, schools, offices, public facilities, laboratories, airports, and industrial ventilation systems.

Typical fine-filter formats include:

• Pocket/Bag filters

• Compact filters


Fine filters may be specified through ISO ePM1, ISO ePM2.5, ISO ePM10, or MERV ratings, depending on the project standard and region.

For example, a facility may use a panel prefilter followed by a pocket or compact filter to reduce fine dust before the air enters occupied areas or sensitive equipment zones.

Fine filters often provide the best balance between efficiency, airflow, and service life for mainstream HVAC systems. They can also function as an important protective stage before a final HEPA filter.

Related Readings:

• ISO 16890 Explained
• MERV Ratings Explained

Stage 3: HEPA Filters for Critical Particle Control

HEPA filters are used where higher-efficiency particle filtration is required, such as cleanrooms, pharmaceutical facilities, laboratories, electronics manufacturing, healthcare applications, and other controlled environments.

Unlike general HVAC filters, HEPA filters are typically used as final-stage filters. They are installed after upstream prefiltration and fine filtration because high-efficiency media can load rapidly if exposed directly to coarse dust.

HEPA selection should consider:

• Required efficiency grade
• Rated airflow
• Initial pressure drop
• Final resistance limit
• Frame and gasket configuration
• Housing compatibility
• Scan-test or integrity-test requirements
• Upstream filter protection

A system should not automatically upgrade to HEPA without checking fan capacity and filter-rack compatibility. ASHRAE notes that increased filtration efficiency can increase pressure drop, which may reduce airflow or increase fan energy use if the HVAC system is not designed for the added resistance.

Related Readings:

• Cleanroom Air Filtration

Stage 4: Activated Carbon Layers for Gas-Phase Filtration

Particle filters and carbon filters perform different jobs.

Panel filters, pocket filters, compact filters, and HEPA filters are primarily selected for particles. Activated carbon filters are used when the target includes certain gases, odors, or VOC-related contaminants.

Activated carbon works through adsorption. Its performance depends on several factors:

• Carbon type
• Carbon quantity
• Media depth
• Contact time
• Airflow rate
• Target gas or vapor
• Humidity and temperature
• Replacement interval

A carbon layer should not be described as a universal solution for every gas or odor. Gas-phase filtration must be selected for the actual contaminant challenge. EPA guidance notes that activated-carbon and other gas-phase filters can address gases, but effectiveness depends on the amount and type of media, and there is no single widely used universal performance-rating system for gas filters.

Activated carbon may be used in:

• Commercial buildings with odor concerns
• Airports and transport facilities
• Laboratories
• Printing and coating areas
• Chemical-adjacent industrial spaces
• Public facilities near traffic or external pollution sources

Typical Multi-Stage Filtration Configurations

Commercial HVAC System

A common commercial HVAC configuration may include:

• Stage 1: Panel or pleated prefilter
• Stage 2: Pocket filter or compact filter
• Optional Stage 3: Activated carbon filter where gas-phase control is needed

This design is often suitable for offices, malls, schools, public facilities, and commercial properties where airflow, maintenance costs, and indoor air quality must be balanced.

High-Airflow Public Building

Airports, rail stations, convention centers, and other high-occupancy facilities may use:

• Stage 1: Coarse prefilter
• Stage 2: Fine pocket or compact filter
• Optional carbon stage for targeted odor or gas concerns

The key selection factors are high airflow volume, pressure drop, replacement access, and filter life.

Cleanroom or Controlled Manufacturing Area

A controlled environment may use:

• Stage 1: Coarse prefilter
• Stage 2: Fine filter
• Stage 3: HEPA final filter

The final HEPA stage should be selected based on the required cleanliness target, system design, sealing approach, and validation requirements.

Paint Booth System

Paint booth filtration may use different stages for intake air, ceiling filtration, and exhaust air. These stages should be selected around the booth design, coating process, overspray load, finish-quality target, and maintenance program.

Why Pressure Drop Matters in Staged Filtration

Pressure drop is the resistance a filter creates against airflow. As filters load with dust, pressure drop rises.

A staged system helps manage this resistance by preventing coarse dust from reaching high-efficiency downstream filters too early. That can extend the service life of fine filters and HEPA filters while helping the system maintain more stable airflow.

When comparing filtration stages, buyers should review:

• Initial pressure drop at rated airflow
• Recommended final pressure drop
• Dust holding capacity
• Filter area and media design
• Number of filters in the bank
• Available fan static pressure
• Maintenance access
• Expected operating hours

Higher efficiency does not always mean better system performance. A filter upgrade that creates too much resistance may reduce airflow or increase energy use. The right design balances filtration efficiency with the ability of the HVAC system to operate effectively.

Internal links:

• Low Pressure Drop Air Filters
• Panel Filters vs Pocket Filters
• Air Filter Replacement Planning

How to Select the Right Filter Stages

Before selecting a multi-stage system, confirm:

• What contaminants need to be controlled?
• Are the main concerns coarse dust, fine particles, gases, odors, or process contaminants?
• What filtration standard is required?
• What is the rated airflow per filter and total airflow?
• What pressure drop can the fan system support?
• Is the system serving people, equipment, products, or a controlled process?
• Is there enough space for multiple filter stages?
• What is the required maintenance interval?
• Does the project require custom dimensions, gaskets, or housing compatibility?

A supplier should review the entire filter sequence rather than recommend a final filter in isolation.

Clean-Link Multi-Stage Air Filtration Support

Clean-Link supplies filtration solutions for commercial HVAC, public buildings, industrial facilities, cleanrooms, paint booths, and specialized ventilation systems.

Available product categories include:

• Panel filters
• Pocket filters
• Compact filters
• V-bank filters
• HEPA filters
• Activated carbon filters
• Paint booth filters
• Custom air filters

For a staged filtration project, provide the existing filter sequence, dimensions, airflow, target efficiency, pressure-drop limits, application, and expected replacement frequency.

Request a Custom Air Filter Quote

FAQ

What is the purpose of a prefilter?

A prefilter captures larger dust before it reaches more expensive downstream filters, helping extend service life and reduce loading on coils and fan components.

Do all HVAC systems need HEPA filters?

No. HEPA filters are typically used where high particle control is required. Many commercial HVAC systems can meet their needs with properly selected prefilters and fine filters.

Can activated carbon replace a HEPA filter?

No. Activated carbon is mainly used for certain gases and odors, while HEPA filters are used for high-efficiency particle filtration.

Why use multiple air filter stages?

Multiple stages distribute the dust load across different filters, protect high-efficiency stages, manage pressure drop, and support longer overall service life.

What should be replaced first in a staged system?

Replacement should be based on pressure drop, visual inspection, maintenance requirements, and system performance. Prefilters often require replacement more frequently than downstream filters.
