Custom Air Filters: What B2B Buyers Should Confirm Before Requesting a Quote

Ordering custom air filters should not begin with price alone. For HVAC, industrial ventilation, cleanroom, paint booth, and OEM projects, the supplier needs enough technical information to match the filter to the actual system.

A filter that looks similar to an existing unit may still have different airflow capacity, pressure drop, frame depth, media efficiency, gasket position, or installation orientation. A small mismatch can cause air bypass, poor fit, reduced airflow, premature loading, or unnecessary replacement costs.

This guide explains what B2B buyers should confirm before requesting a quote for custom air filters. It is designed for facility managers, HVAC contractors, procurement teams, distributors, OEM buyers, and project engineers who need filters matched to a specific application.



When Do Buyers Need Custom Air Filters?

Custom filters are usually required when a standard stock size or standard specification does not fully match the installation or operating condition.

Common reasons include:

• Non-standard filter dimensions
• Special frame depth or header design
• Specific airflow or pressure-drop limits
• Required ISO 16890, MERV, EN 779 legacy, HEPA, or activated-carbon performance
• Gasket or seal configuration requirements
• High humidity, high temperature, corrosive, or industrial conditions
• OEM replacement programs
• Existing filter housings with unusual dimensions
• Repeat orders for a project-specific specification

General ventilation filters may be specified under ISO 16890, which classifies filters based on particulate-matter efficiency. MERV ratings are commonly used under ASHRAE Standard 52.2 for general ventilation air-cleaning devices. Buyers should provide the required rating standard where available rather than relying on a vague description such as “high efficiency.”



Custom Size vs Standard Replacement Filter

Not every replacement filter needs to be custom made. Standard sizes may be suitable when the existing filter housing, airflow, efficiency requirement, and sealing method match a commonly available product.

However, custom production is often the better option when the filter must fit an existing system precisely.

A nominal size is not always the same as the actual size. For example, a filter sold as “24 × 24 × 2” may have an actual outside dimension that is slightly smaller to allow installation in the holding frame.

Before requesting a quote, confirm:

• Nominal width, height, and depth
• Actual outside dimensions
• Acceptable dimensional tolerance
• Frame depth and header size
• Whether the filter must fit inside a holding frame, track, or side-access housing
• Airflow direction and installation orientation

When possible, provide measurements in millimeters and inches. A simple dimensional drawing can prevent costly errors during production or installation.



Information Buyers Should Provide Before Requesting a Quote

1. Exact Dimensions

Provide width, height, and depth. Include whether dimensions are nominal or actual.

For non-standard filters, include:

• Outside dimensions
• Frame depth
• Header thickness
• Flange position
• Required tolerance
• Quantity per shipment

A photo with a tape measure can help, but a drawing is more reliable.

2. Filter Type

Identify the filter construction you need, such as:

• Panel filter
• Pleated panel filter
• Pocket filter
• Compact filter
• V-bank filter
• HEPA filter
• Activated carbon filter
• Paint booth filter
• Special industrial filter

The filter type affects available airflow, media area, pressure drop, dust holding capacity, and installation method.

3. Required Filtration Efficiency

State the required standard and class whenever possible.

Examples include:

• ISO Coarse
• ISO ePM10
• ISO ePM2.5
• ISO ePM1
• MERV rating
• Legacy EN 779 class such as G4, M5, F7, F8, or F9
• H10, H11, H12, H13, or H14 HEPA grade

Do not assume that one rating system can be converted exactly into another. ISO 16890, MERV, and legacy EN 779 use different test approaches and reporting methods. The supplier should review the required application, existing specification, and product data before recommending an equivalent filter.

4. Airflow and System Conditions

Airflow is one of the most important details in custom filter selection.

Provide:

• Rated airflow per filter
• Total system airflow
• Face velocity, if known
• Number of filters in the bank
• Filter housing or AHU configuration
• Fan capacity or available static pressure
• Whether the filter is used as a prefilter, intermediate filter, or final filter

A filter with the correct efficiency but insufficient media area may create excessive resistance. Conversely, a filter with a large media area may reduce pressure drop and improve service life.

For high-airflow applications, review low pressure drop air filters.

5. Initial Pressure Drop and Replacement Limit

Buyers should specify the preferred initial pressure drop or maximum acceptable resistance at rated airflow.

Pressure drop affects:

• Fan energy consumption
• Delivered airflow
• System balance
• Filter service life
• Maintenance intervals
• Total operating cost

A lower initial pressure drop is not always the only goal. The correct filter should balance efficiency, dust holding capacity, and lifecycle cost.

For maintenance planning, link to air filter replacement planning.

6. Frame and Media Material

Frame material affects durability, moisture resistance, installation stability, and disposal requirements.

Common options may include:

• Cardboard or paper frame
• Galvanized steel frame
• Plastic frame
• Aluminum frame
• Stainless steel frame
• Moisture-resistant board frame

Media selection may include synthetic fiber, glass fiber, nonwoven material, activated carbon media, or specialized coating media.

The best material depends on the application. For example, a disposable panel filter in a standard commercial HVAC system has different requirements from a rigid filter used in high humidity, a cleanroom HEPA module, or a paint booth ceiling filter.

7. Gasket and Sealing Requirements

A filter can have the correct efficiency but still perform poorly if air bypasses the media through gaps around the frame.

Confirm:

• Gasket required or not
• Gasket position
• Gasket thickness
• Face seal, side seal, or header seal
• Gel seal requirements for critical applications
• Holding frame or clamping method

This is especially important for HEPA filters, cleanroom applications, and systems where bypass leakage could affect process control.

8. Operating Environment

Explain where the filter will be used.

Useful information includes:

• Indoor or outdoor installation
• Temperature range
• Humidity level
• Exposure to oil mist, moisture, chemicals, or corrosion
• Dust type and loading conditions
• Required fire performance
• Cleaning or replacement frequency
• Whether the application involves occupied spaces, production processes, or equipment protection

Clear application information helps the supplier recommend suitable media, frame, sealant, and structural design.

9. Quantity and Repeat-Order Plans

Tell the supplier whether the requirement is:

• A one-time replacement
• A trial order
• A regular maintenance program
• A project quantity
• An OEM supply requirement
• A distributor or e-commerce replenishment order

Repeat-order forecasts can help standardize dimensions, packaging, labeling, lead time, and quality-control requirements.

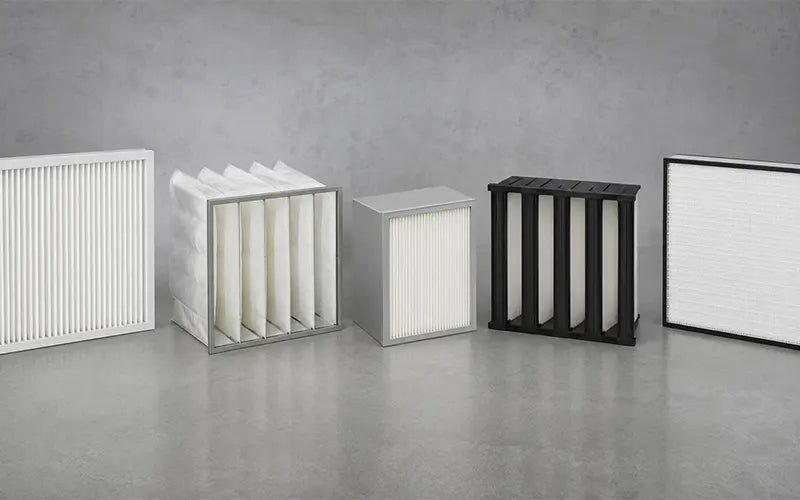

Common Custom Filter Types

Panel Filters

Panel filters are commonly used as first-stage filters for coarse dust capture and general HVAC protection. They can be supplied in standard or custom sizes, frame depths, and media configurations.

Pocket Filters

Pocket filters provide larger media area and are commonly used for medium-to-fine filtration in commercial HVAC systems. Their pocket length, pocket quantity, frame style, and efficiency class can be specified for the application.

Compact and V-Bank Filters

Compact and V-bank filters are often selected for higher airflow systems where space, pressure drop, and media area need to be balanced.

HEPA Filters

HEPA filters are used in controlled environments such as cleanrooms, healthcare facilities, laboratories, electronics manufacturing, and high-performance industrial applications. HEPA projects require more detailed information about dimensions, gasket location, efficiency grade, airflow, scan-test requirements, and housing design.

Clean-Link’s custom air filter manufacturing capabilities include production and testing support for multiple commercial and industrial filter categories.

Activated Carbon Filters

Activated carbon filters may be selected where odor, VOC, gas-phase contaminants, or chemical vapors are a concern. Buyers should identify the target contaminant, airflow, contact time, and expected replacement cycle.

Paint Booth Filters

Paint booth filters may be used for intake air, ceiling filtration, exhaust filtration, or overspray capture. These applications should be specified according to booth layout, coating process, airflow direction, finish-quality target, and maintenance schedule.

For relevant solutions, see paint booth air filtration solutions.



Common Mistakes When Ordering Custom Filters

Avoid these common mistakes:

• Providing nominal dimensions only
• Omitting frame depth
• Requesting a rating without airflow information
• Assuming MERV, ISO, and EN 779 classes are exact equivalents
• Ignoring initial pressure drop
• Forgetting gasket position or sealing requirements
• Copying an old label without checking actual dimensions
• Ordering a high-efficiency filter without confirming fan capacity
• Sending a photo without a measurement reference
• Failing to describe the application environment

A good custom filter request should explain both the physical product and the operating condition.



How to Send a Filter Sample, Drawing, or Photo

The most useful quotation package includes:

1. Photos of the front, back, side, and label
2. Width, height, and depth measurements
3. A simple drawing showing airflow direction
4. Existing product code or rating label
5. Filter quantity and expected annual demand
6. Application description
7. Airflow and pressure-drop information, if available
8. Gasket or seal requirements
9. Delivery location and packaging requirements

If you can send a physical sample, include a reference number and clearly mark whether it is for measurement only or for performance matching.



Custom Filters for Different Applications

Custom requirements vary by application.

For commercial HVAC, dimensions, airflow, efficiency, and pressure drop are often the key factors.

For cleanrooms, filtration grade, gasket position, integrity requirements, and housing compatibility become more important. Explore custom filters for cleanroom applications.

For paint booths, airflow uniformity, overspray capture, intake cleanliness, and filter replacement cycles should be considered.

For industrial facilities, dust type, humidity, temperature, corrosion resistance, and equipment protection may determine the required filter design.



FAQ

What information is needed for a custom air filter quote?

Provide exact dimensions, filter type, efficiency requirement, airflow, pressure drop, frame material, media type, gasket details, application, and quantity.

Can I order a custom filter using only a sample?

A sample can help, but you should also provide measurements, airflow direction, application details, and any rating label or product code.

Are custom filters more expensive than standard filters?

Not always. Cost depends on size, quantity, material, efficiency, frame type, sealing design, testing requirements, and production volume.

Can a supplier match an old EN 779 filter specification?

Yes, but the supplier should review the old rating together with airflow, pressure drop, dimensions, and application conditions. ISO 16890 may be used for current general ventilation specifications.

Can custom filters be used in cleanrooms?

Yes. However, cleanroom filters require more detailed confirmation of efficiency grade, sealing method, housing fit, and testing requirements.
