Low Pressure Drop Air Filters: Why They Matter in High-Airflow HVAC Systems

Low pressure drop air filters help high-airflow HVAC systems maintain stable airflow while reducing unnecessary resistance across the filter bank. In applications such as data centers, airport terminals, rail transit stations, train carriages, office buildings, malls, and schools, HVAC filters must support indoor air quality, equipment protection, and system reliability without creating excessive fan workload.

For HVAC engineers, facility managers, procurement teams, and maintenance departments, the right filter is not simply the filter with the highest efficiency rating. It is the filter that balances filtration efficiency, pressure drop, airflow, dust holding capacity, service life, and system compatibility under real operating conditions.

What Is Pressure Drop in an Air Filter?

Pressure drop is the resistance that air experiences as it passes through an air filter. In an HVAC system, air must move through ductwork, coils, dampers, diffusers, and filter media. When filter media captures dust and particles, resistance increases over time.

A new filter has an initial pressure drop. As it loads with dust, it moves toward a final recommended pressure drop. If the filter is not replaced before resistance becomes too high, the HVAC system may experience reduced airflow, higher fan energy demand, uneven air distribution, or shorter equipment service life.

Low pressure drop air filters are designed to reduce airflow resistance while still supporting the required level of particulate filtration. This is especially important where large air volumes pass through HVAC filters continuously.

Why Low Pressure Drop Matters in High-Airflow HVAC Systems

High-airflow HVAC systems are used where large amounts of air must be moved, cooled, heated, filtered, or recirculated. These systems are common in commercial buildings, transport facilities, data centers, schools, and public environments.

When pressure drop is too high, several issues may occur:

ASHRAE Standard 62.1 is widely referenced for ventilation and acceptable indoor air quality in nonresidential buildings. For high-airflow systems, stable airflow is therefore not only an equipment issue, but also part of the broader indoor air quality strategy.

Low Pressure Drop Does Not Mean Low Efficiency

A common misunderstanding is that a low pressure drop filter must also be a low-efficiency filter. In reality, filter performance depends on media structure, pleat design, media area, frame construction, sealing, dust loading behavior, and airflow velocity.

A well-designed low resistance air filter can provide practical filtration efficiency while helping reduce unnecessary resistance. Filters with larger media area, optimized pleat spacing, or V-bank construction can often support higher airflow with more stable pressure drop than filters with limited media area.

The goal is not to minimize resistance at the expense of particle capture. The goal is to choose a filter design that supports both airflow and filtration performance.

Key Factors That Affect Filter Pressure Drop

1. Filter Media Area

More media area usually allows air to pass through the filter at a lower face velocity. This can help reduce resistance and improve dust holding capacity. V-bank filters and deep pocket filters are often used in high-airflow HVAC systems because they provide extended media area within the filter frame.

2. Filtration Efficiency

Higher-efficiency filters may use denser media or finer fiber structures. This can increase resistance if the filter is not designed for the required airflow. Filter efficiency should be selected according to application conditions, particle load, and HVAC capacity.

ISO 16890 provides an efficiency classification system for air filters used in general ventilation based on particulate matter performance. It is useful when comparing filter performance related to PM1, PM2.5, and PM10.

3. Dust Holding Capacity

Dust holding capacity affects how long a filter can operate before reaching its final pressure drop. In high-traffic or dusty environments, filters with higher dust holding capacity can help extend service intervals and reduce maintenance burden.

4. Airflow Velocity

If airflow velocity through the filter is too high, pressure drop may increase and filter loading may become less stable. Correct filter sizing and air handling unit compatibility are important.

5. Filter Installation and Sealing

Poor sealing, damaged gaskets, gaps in the frame, or incorrect dimensions can cause air bypass and reduce filtration effectiveness. Low pressure drop should never come from leakage around the filter.

Recommended Filter Types for High-Airflow HVAC Systems

For high-airflow HVAC systems, V-bank filters, pocket filters, and well-designed compact filters are often important options because they can support airflow stability while providing practical filtration performance.

Priority Applications for Low Pressure Drop Filters

Data Centers

Data centers require reliable cooling airflow to protect servers, network equipment, and electrical systems. Excessive filter resistance can affect cooling performance and increase fan workload. Low pressure drop filters support airflow stability, equipment protection, and predictable maintenance.

Recommended internal link: air filtration for data centers

Airport Terminals

Airport terminals handle large outdoor air volumes, changing passenger density, baggage movement, food service areas, and long operating hours. Low pressure drop HVAC filters help maintain ventilation performance while managing dust, PM2.5, PM10, and passenger-related particles.

Recommended internal link: air filtration for airport terminals

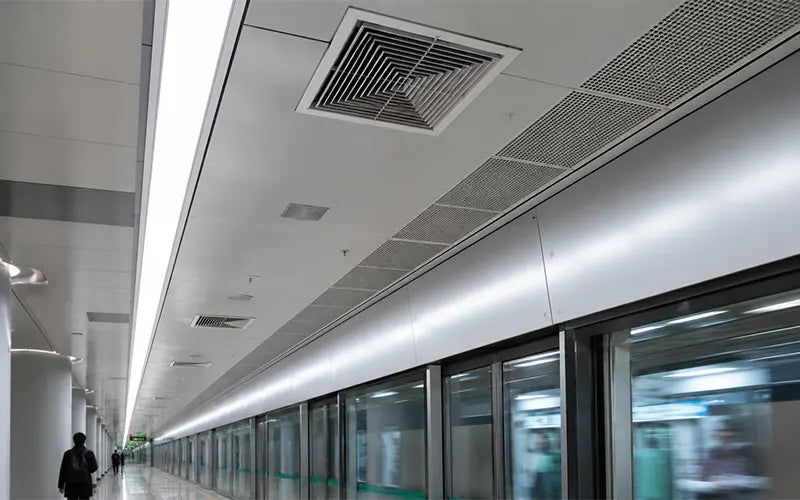

Rail Transit Stations

Rail transit stations face high passenger flow, outdoor air infiltration, platform dust, and continuous ventilation demand. Filters must support stable airflow without creating excessive resistance in station HVAC systems.

Recommended internal link: rail transit air filtration solutions

Train Carriages

Train carriages have limited HVAC space, compact air handling units, and continuous recirculated air movement. Low resistance air filters help maintain airflow in space-constrained systems while supporting passenger comfort.

Office Buildings

Office buildings need to balance indoor air quality, pressure drop, and energy use. Low pressure drop HVAC filters help office systems maintain ventilation while supporting IAQ goals.

Malls

Shopping malls operate with large air volumes, high foot traffic, food courts, retail zones, and long operating hours. Filters with stable pressure drop and high dust holding capacity can help reduce maintenance frequency and support consistent ventilation.

Schools

Schools require practical HVAC filtration for classrooms, corridors, gyms, cafeterias, and administrative spaces. Low pressure drop filters are important because many school HVAC systems have limited fan capacity.

Low Pressure Drop, IAQ, and Energy Use

Indoor air quality depends on ventilation, source control, cleaning, maintenance, and filtration. Air filters can help reduce airborne dust, pollen, fibers, fine particles, and other particulate matter in occupied spaces.

However, filtration must work with the HVAC system, not against it. If a filter is too restrictive, the system may struggle to deliver filtered and conditioned air even if the filter efficiency rating appears suitable.

Filter resistance also affects fan workload. In large HVAC systems, increases in pressure drop can influence energy use over time. This does not mean every system should use the lowest-resistance filter available. Instead, facilities should evaluate total performance:

• Required filtration efficiency
• Required airflow
• Initial and final pressure drop
• Dust holding capacity
• Filter fit and sealing
• Service life
• Equipment protection

Energy-efficient air filters should be selected as part of a system-level strategy, not as a standalone product decision.

Staged Filtration for High-Airflow Systems

A staged filtration system often performs better than relying on one filter stage.

Stage 1: Prefiltration

Panel filters or coarse prefilters capture larger particles before they reach coils, fans, and higher-efficiency filters. This helps protect downstream components and reduce dust load.

Stage 2: Main HVAC Filtration

Pocket filters, compact filters, or V-bank filters capture finer particles while supporting the required airflow. This stage usually determines the balance between IAQ, pressure drop, and service life.

Stage 3: Specialized Filtration

Activated carbon filters or HEPA filters may be used where odor control, gas-phase concerns, or higher particulate control is required. These filters should be selected only after confirming system compatibility and pressure drop limits.

How to Select Low Pressure Drop Air Filters

When selecting low pressure drop air filters for high-airflow HVAC systems, facility teams should review both filter data and system requirements.

Important selection points include:

1. Required airflow and air volume
2. Initial and final pressure drop
3. Filter efficiency classification or rating
4. Dust holding capacity
5. Filter depth, frame type, and gasket design
6. HVAC fan capacity and available static pressure
7. Application-specific particle load and maintenance schedule

A filter that performs well in an office building may not be suitable for a data center, rail station, or airport terminal. Filter selection should match the actual operating environment.

How Clean-Link Supports High-Airflow HVAC Filter Projects

Clean-Link is an air filter manufacturer and air filtration solution provider offering filtration products for commercial buildings, public facilities, HVAC systems, data centers, rail transit, airports, schools, malls, office buildings, cleanrooms, and industrial applications.

For high-airflow HVAC projects, Clean-Link can support filter selection based on:

• Required airflow
• Filter size and frame configuration
• Initial and final pressure drop limits
• Filtration efficiency target
• Dust holding capacity
• HVAC system compatibility
• Application environment
• Maintenance schedule
• Custom dimensions
• OEM and bulk order requirements

Relevant Clean-Link filter options may include panel filters, pocket filters for high-airflow HVAC systems, compact filters, V-bank filters, activated carbon filters, and selected HEPA filters.

The objective is to help engineering, procurement, and maintenance teams select filters that support airflow stability, indoor air quality, equipment protection, and practical long-term operation.

Final Thoughts

Low pressure drop air filters matter because high-airflow HVAC systems must move large air volumes while maintaining filtration performance, energy efficiency, and system reliability. Excessive filter resistance can reduce airflow, increase fan workload, shorten service life, and create uneven ventilation.

For data centers, airport terminals, rail transit stations, train carriages, office buildings, malls, and schools, filter selection should balance pressure drop, filtration efficiency, dust holding capacity, airflow, and system compatibility.

Clean-Link provides application-driven air filtration solutions for high-airflow HVAC systems, helping facility teams choose suitable panel filters, pocket filters, compact filters, V-bank filters, and other filtration products for real operating conditions.

FAQ

1. What are low pressure drop air filters?

Low pressure drop air filters are filters designed to reduce airflow resistance while supporting the required level of particle capture. They help HVAC systems maintain stable airflow and avoid unnecessary fan workload.

2. Why are low pressure drop filters important in high-airflow HVAC systems?

High-airflow HVAC systems move large air volumes. If filter resistance is too high, airflow may decline, fan energy demand may increase, and filter replacement intervals may become shorter.

3. Do low pressure drop filters have lower filtration efficiency?

Not always. A well-designed filter can provide practical filtration efficiency with lower resistance by using optimized media, larger media area, proper pleat design, or V-bank construction.

4. Which filter types are suitable for high-airflow HVAC systems?

Common options include panel filters, pocket filters, compact filters, and V-bank filters. HEPA filters or activated carbon filters may be used in selected areas after confirming system compatibility.

5. How does pressure drop affect energy use?

Higher pressure drop increases resistance in the airflow path. Fans may need more power to maintain target airflow, especially in large commercial or public-building HVAC systems.

6. How can Clean-Link help with low pressure drop filter selection?

Clean-Link can support filter selection based on airflow, pressure drop limits, filter size, efficiency target, dust holding capacity, system compatibility, application environment, and custom size requirements.
