Data Center Air Filtration Solutions



Industrial Air Filters for Data Center HVAC Systems & Cooling Infrastructure

Data centers rely on stable environmental conditions to support servers, networking equipment, and cooling infrastructure. Airborne dust and fine particles can accumulate on electronic equipment and HVAC components, increasing maintenance requirements and potentially affecting cooling performance.

Effective data center air filtration helps control particulate contamination, protect air handling equipment, and support reliable facility operations.

Clean-Link supplies industrial air filters for data center HVAC and ventilation applications, including panel filters, pocket bag filters, compact V-bank filters, and selected high-efficiency filtration products. We support custom dimensions, OEM requirements, replacement filters, and bulk purchasing for HVAC contractors, distributors, and facility operators.

Request a Quote →

Why Air Filtration Matters in Data Centers

Air filtration is an important part of contamination control and HVAC system maintenance in continuously operating data centers.

Equipment & Cooling System Protection

Dust can accumulate on fans, cooling coils, heat-transfer surfaces, and electronic equipment. Suitable filtration helps reduce particulate buildup and supports cleaner operating conditions.

Airflow & Energy Efficiency

Filters must provide adequate particle capture without introducing excessive airflow resistance. Higher pressure drop can increase fan energy requirements or reduce airflow where fan capacity is limited.

Maintenance & Reliability

Properly selected filters help manage dust loading and support predictable maintenance schedules. Efficiency, filter service life, installation conditions, and allowable final pressure drop should all be considered.

Air Filtration Applications in Data Centers

Outdoor Air Intake Systems

Outdoor air can introduce dust, pollen, fine particles, and other contaminants into data center ventilation equipment.

Facilities using outdoor air ventilation or air-side economizers may require staged filtration to manage incoming particulate loads.

Filter selection depends on local air quality, required airflow, efficiency, available fan capacity, and maintenance conditions.

Learn more: Data Center Air Intake Systems

HVAC & Cooling Systems

Air handling units and certain CRAC or CRAH configurations use filters to help protect cooling components and maintain cleaner circulating air.

Replacement filters should match existing equipment dimensions, airflow requirements, efficiency specifications, and allowable pressure drop.

Learn more: Data Center HVAC & Cooling Systems

Server Rooms & Technical Spaces

Server rooms and supporting technical spaces may require filtration to reduce airborne particulate contamination.

The appropriate filtration strategy depends on the facility's ventilation design, equipment sensitivity, contamination sources, and cleanliness requirements.

Recommended Air Filter Types for Data Centers

Clean-Link offers several air filter categories that may be suitable for data center HVAC applications.

Filter Type	Typical Application	Selection Considerations
Panel & Pleated Filters	HVAC pre-filtration	Size, efficiency, airflow, dust loading
Pocket & Bag Filters	AHU secondary filtration	ISO 16890, pocket configuration, pressure drop
Compact & V-Bank Filters	Space-constrained or high-airflow HVAC systems	Filter depth, airflow, resistance
Activated Carbon Filters	Selected gaseous contamination applications	Target contaminants, media capacity

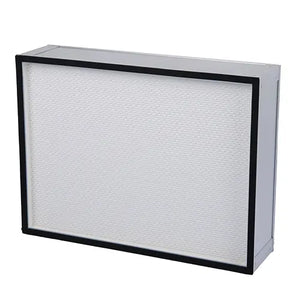

HEPA Filters	Specialized applications requiring high-efficiency filtration	Efficiency, sealing, airflow compatibility

Not every data center requires HEPA or activated carbon filtration. Filter selection should follow actual contamination risks, equipment specifications, and system requirements.

Data Center Air Filtration Standards & Selection Considerations

Data center filtration requirements vary according to facility design, outdoor air conditions, equipment specifications, and contamination control objectives.

ASHRAE Guidance

ASHRAE's Gaseous and Particulate Contamination Guidelines for Data Centers (2011) discusses ISO 14644-1 Class 8 cleanliness and provides filtration recommendations for certain data center configurations, including MERV 8 for recirculated room air and MERV 11–13 for incoming air.

These are historical guideline recommendations, not universal mandatory requirements. Actual filter selection should follow applicable project specifications and current technical guidance.

Air Filter Efficiency Standards

Common filtration classifications include:

• ASHRAE 52.2 / MERV: Particle removal efficiency for general ventilation filters.

• ISO 16890: General ventilation filter classification based on ePM1, ePM2.5, and ePM10 performance.

• EN 1822 / ISO 29463: High-efficiency filter classification and testing, where applicable.

Different standards use different test methods and should not be treated as directly interchangeable without supporting test data.

Key Filter Selection Parameters

Parameter	What to Confirm
Application	Outdoor intake, AHU, cooling equipment, or technical room
Dimensions	Length × width × depth
Efficiency	Required MERV, ISO 16890, or other classification
Airflow	Design airflow and available fan capacity
Pressure Drop	Initial and allowable final resistance
Construction	Media, frame, gasket, and sealing requirements
Maintenance	Dust loading, replacement access, and service interval

For multi-stage systems, adding a pre-filter may reduce downstream dust loading, but it also increases total airflow resistance. The complete filtration arrangement must be compatible with the system.

Clean-Link Manufacturing & Custom Air Filter Support

Clean-Link supplies industrial and commercial HVAC filtration products for equipment manufacturers, distributors, contractors, and facility maintenance teams.

We support standard and custom filter sourcing based on confirmed technical specifications.

Custom Filter Configurations

Depending on the product type and manufacturing requirements, customization options may include:

• Filter dimensions and depth

• Media and efficiency requirements

• Frame materials and construction

• Pocket quantity and configuration

• Gaskets and sealing options

• Packaging and labeling

Quality & Specification Control

For custom and repeat orders, Clean-Link coordinates production according to confirmed specifications, including dimensions, materials, construction, and agreed inspection requirements.

Quality checks may include dimensional inspection, structural examination, and other product-specific requirements. Performance claims are subject to applicable test documentation.

OEM & Bulk Supply

Clean-Link supports OEM orders, replacement filter programs, custom packaging, and bulk purchasing requirements.

Customers can provide product drawings, existing filter specifications, or samples for technical review and quotation.

Learn more:

• Air Filter Manufacturing Facilities

• Custom Air Filter Manufacturer

• OEM Air Filter Manufacturing

Frequently Asked Questions

What types of air filters are used in data centers?

Depending on the HVAC system, data centers may use panel filters, pocket bag filters, compact filters, and other suitable filtration products for particulate control.

Do data centers need HEPA filters?

Not all data centers require HEPA filtration. HEPA filters may be appropriate for specialized applications, but conventional HVAC systems generally require filtration selected according to their specific contamination control and airflow requirements.

How does pressure drop affect data center HVAC performance?

Excessive filter resistance can increase fan energy requirements or reduce airflow where fan capacity is limited. Both filtration efficiency and pressure drop should be evaluated during selection.

Can Clean-Link supply custom replacement air filters?

Yes. Clean-Link supports custom filter inquiries based on dimensions, efficiency, construction, airflow conditions, and purchasing quantities, subject to technical and manufacturing confirmation.

Request Data Center Air Filters

Looking for a reliable supplier of data center HVAC filters or custom replacement air filters?

Clean-Link supports standard and custom industrial air filter requirements for data center HVAC applications, OEM projects, and bulk purchasing.

For a quotation, please provide:

• Filter type and application

• Dimensions (L × W × D)

• Required efficiency

• Airflow and pressure drop, if available

• Quantity and delivery destination

• Drawings, datasheets, or existing filter references, if available

Our team can review your requirements and discuss suitable filter configurations, manufacturing options, and quotation details.

Request a Quote →

Filter selection and performance depend on product specifications and actual system operating conditions.
