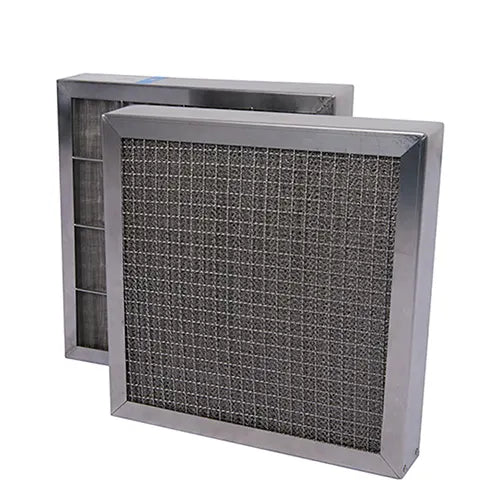

Washable Metal Mesh Panel Filters

Why Use a Metal Mesh Prefilter?

Metal mesh panel filters are mainly used as a first-stage filter. Their purpose is not to replace fine filters or HEPA filters. Instead, they remove larger debris before it reaches more sensitive downstream filtration stages.

Using a washable metal mesh prefilter can help:

• reduce dust loading on downstream filters
• extend the service life of pocket filters and compact filters
• protect coils and fans from debris buildup
• reduce maintenance frequency
• maintain more stable airflow
• lower long-term filter replacement costs in suitable applications

For systems requiring higher particle capture efficiency, metal mesh prefilters can be combined with [panel filters for HVAC prefiltration], [pocket filters for fine filtration], or [HEPA filters for critical environments].

Available Filtration Grades

Typical coarse filtration options may include:

• EN 779: G3 / G4
• ISO 16890: ISO Coarse

The final classification depends on media configuration, mesh structure, test method, airflow conditions, and product design.

For projects requiring a specific efficiency level, please provide your target standard, airflow requirement, and installation conditions.

Customization Options

Clean-Link can support customized metal mesh panel filters based on your HVAC system, ventilation unit, or industrial equipment requirements.

Available customization options include:

• width, height, and depth
• aluminum frame or stainless steel frame
• corrugated aluminum mesh
• expanded stainless steel mesh
• stainless steel wire mesh
• SUS 304 or SUS 316 material
• single-layer or multi-layer mesh design
• washable construction
• high-temperature-resistant configuration
• gasket and sealing options
• reinforced frame design
• customized packaging and labeling

For repeat orders or project-based supply, buyers can also provide an existing filter sample, drawing, photo, or equipment specification.

Important Note on Pressure Drop

Initial resistance and final resistance should not be copied from another filter type.

For metal mesh panel filters, pressure drop depends on:

• filter size
• frame depth
• mesh material
• mesh density
• number of mesh layers
• rated airflow
• installation method
• dust loading conditions

Maintenance and Cleaning

Washable metal mesh filters should be inspected regularly according to dust conditions and system operating hours.

Typical maintenance steps include:

1. Remove the filter from the system.
2. Remove loose debris with low-pressure air or gentle brushing.
3. Wash with water or a suitable mild cleaning solution when required.
4. Allow the filter to dry completely before reinstalling.
5. Check the frame, mesh, and sealing condition before reuse.

Avoid damaging the mesh structure during cleaning. Replace the filter if the frame becomes deformed, the mesh is damaged, or airflow is restricted after cleaning.
