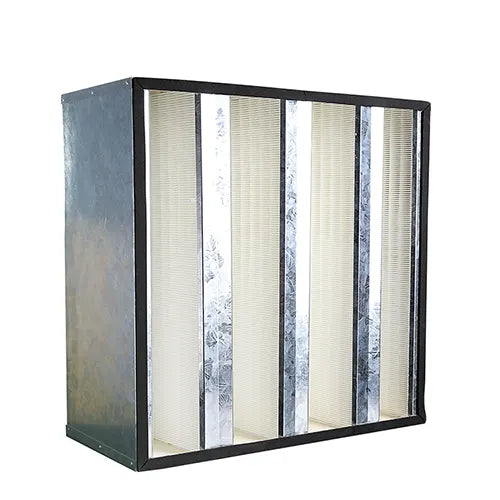

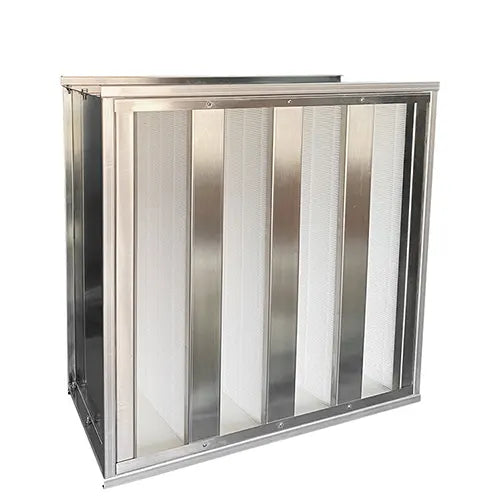

V-bank Medium Efficiency Filter
V-bank Medium Efficiency Filter
V-bank Medium Efficiency Filter
V-bank Medium Efficiency Filter

Compact High-Efficiency V-Bank Filter

商品简介
    V-Bank Filters are engineered for superior air filtration performance. The innovative V-shaped design increases the available surface area of the filter media, allowing for better capture of a wide range of airborne particles. These filters are highly efficient in trapping contaminants like dust, pollen, mold spores, bacteria, and fine particulate matter (PM2.5).

    V-Bank high-efficiency filters are ideal for use in both exhaust air and recirculation applications, providing additional protection for air handling units. The V-shaped structure ensures that airflow is maintained within HVAC systems, with the exception of systems designed for turbulent air.
EN779:
ISO16890:
FeaturesApplicationsDownloads Data Sheets
GET A FREE QUOTE

Features

商品特点
    • Grades: M6, F7, F8, F9, H10, H11, H12, H13, H14; H15, H16, UH17, UH18, UH19
    • MERV Ratings: MERV11, MERV12, MERV13, MERV14, MERV15, MERV16-19
    • Frame Options: Galvanized steel, aluminum, stainless steel, or ABS plastic
    • Filtration Materials: Fiberglass or polypropylene
    • Design: V-shaped for maximized surface area
    • Efficiency: High-efficiency filtration with a high airflow rate
    • Cost-Effective: Low operating and maintenance costs, easy installation
    • High Dust-Holding Capacity: Extended performance
    • Temperature Resistance: Up to 80°C
    • Humidity Resistance: Up to 80%

Applications

商品应用场景
    • HVAC Systems: Used to filter airborne particles in heating, ventilation, and air conditioning systems, maintaining air quality and protecting equipment.
    • Industrial Air Handling: Ideal for protecting air handling units in industrial facilities, ensuring clean air circulation in environments with higher particulate levels.
    • Cleanrooms and Laboratories: Provides high-efficiency filtration in sensitive environments, such as research labs and pharmaceutical manufacturing, to maintain clean air standards.
    • Exhaust Air Systems: Effectively filters exhaust air in commercial and industrial settings to prevent the release of contaminants into the environment.
    • Recirculation Applications: Used in systems that recirculate air, helping to maintain the quality of indoor air in both residential and commercial buildings.

Specifications

Liquid Tank High Efficiency HEPA Filter data
Liquid Tank High Efficiency HEPA Filter data

    Technical Data

    Liquid Tank High Efficiency HEPA Filter data 3



    Custom Solutions

    Please send us your requirements for custom sizes and thicknesses.
