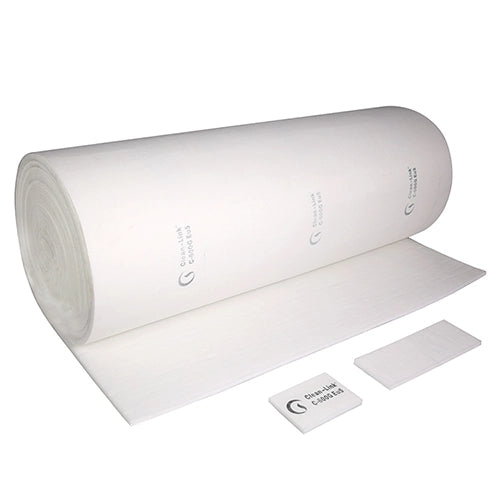

Paint Booth Intake Ceiling Filter Media S-600G

商品简介
    The Paint Booth Intake Ceiling Filter Media S-600G is an M5 grade ceiling filter media made from 100% polyester fibers, specifically designed for industrial applications requiring high air purity, such as spray painting booths and clean-air ventilation systems.

    Its multi-layer structure, featuring a surface glue treatment and a fabric mesh outlet, ensures efficient fine dust capture (96% average weight efficiency) and promotes a uniform, laminar airflow critical for high-quality finishes.

    It offers a high dust holding capacity (450 g/m²) and complies with flame retardancy standards DIN53438-F1 and UL900-Class2.
EN779:
ISO16890:
FeaturesApplicationsDownloads Data Sheets
GET A FREE QUOTE

Features

商品特点
    • M5 Grade Filtration: Effectively captures fine dust particles.
    • Surface Glue Treatment: Enhances particle adhesion and airflow uniformity.
    • High Dust Holding Capacity: 450 g/m² for extended filter life.
    • Laminar Airflow Optimized: Ideal for superior spray painting results.
    • Flame Retardant: Meets DIN53438-F1 & UL900-Class2 standards.
    • 100% Polyester Fibers: Durable and reliable construction.
    • High Average Efficiency: 96% particle capture by weight.
    • Operating Temp: Up to 100°C.

Applications

商品应用场景
    • Spray Painting and Finishing Booths:

      Automotive manufacturing and refinishing.
      Aerospace and marine coating.
      Furniture and cabinetry finishing.
      Industrial equipment and machinery painting.
      Crucial for preventing particle contamination and achieving flawless, high-gloss finishes.

    • Industrial Ventilation and Air Makeup Systems:

      Electronics Manufacturing: Provides clean air to protect sensitive electronic components during assembly and testing.
      Chemical Plants: Helps maintain controlled environments and air purity.
      Pharmaceuticals: Contributes to cleaner air in production and packaging areas.
      Food Processing: Aids in maintaining hygienic conditions by filtering intake air.
      Mineral Processing and Smelting: Filters air for ventilation systems, improving workplace air quality and protecting equipment.

    • General Industrial Use:

      Workshops and manufacturing plants requiring a higher level of air cleanliness.
      As a final intake filter in HVAC systems to protect downstream components and improve indoor air quality.

Specifications

Material 100% POLYESTER FIBRES
Model S-600G
Normal Thickness (mm) 20±3
Weight (g/㎡) 600
Wind Velocity Test (m/s) 0.25
Initial Resistance (Pa) 30
Final Resistance (Pa) 450
Average Weight Efficiency 96%
Rated Air Flow (m³/h) 900
Dust Holding Capacity (g/㎡) 450
Temperature Resistance (℃) 100
Filtration Grade M5

Technical Data

paint booth ceiling filter media C-600 data sheet

Custom Solutions

Please send us your requirements for custom sizes and thicknesses.
