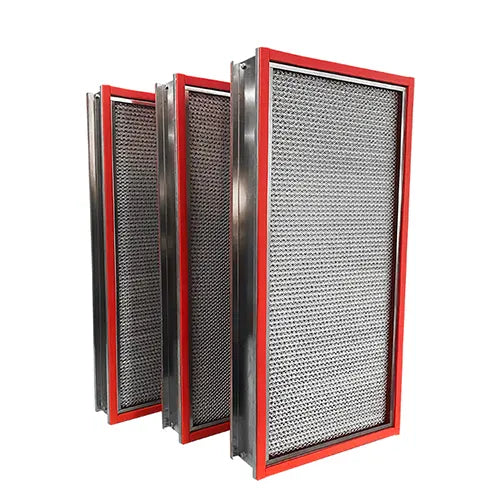

High temperature High Efficiency Pleated Filter
商品简介
-
High-Temperature High-Efficiency filters are the ultimate solution for air filtration in extreme conditions. These specialized filters are engineered to perform flawlessly in environments with elevated temperatures, providing exceptional filtration efficiency. Capable of capturing at least 99.97% of particles as small as 0.3 microns, they are designed to withstand temperatures ranging from 250°C to 350°C (482°F to 662°F), and even higher in some cases.
Built with durability in mind, HTHE filters feature stainless steel frames, heat-resistant gaskets, and specialized filter media that can endure thermal stress without compromising performance. These filters are indispensable in industries that demand high precision and sterility, such as aerospace, pharmaceuticals, laboratories, and manufacturing processes, ensuring that air quality remains pristine even under extreme heat conditions.
Features
商品特点
Applications
商品应用场景
Specifications
| Filtration Grade | Dimensions (mm) W*H* D | Filter Area (㎡) | Rated Air Flow (m³/h) | Wind Velocity Test (m/s) | Initial Resistance (Pa) |
| H13 | 610*610*120 | 7.04 | 750 | 0.56 | 190 |
| H13 | 610*610*292 | 21.25 | 2200 | 1.64 | |
| H13 | 610*1220*292 | 45.5 | 4450 | 1.66 | |
| H14 | 610*610*120 | 7.04 | 750 | 0.56 | 220 |
| H14 | 610*610*292 | 21.25 | 2200 | 1.64 | |
| H14 | 610*1220*292 | 45.5 | 4450 | 1.66 |
Technical Data
