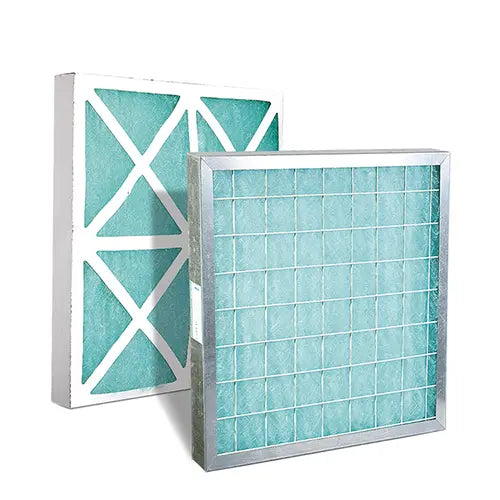

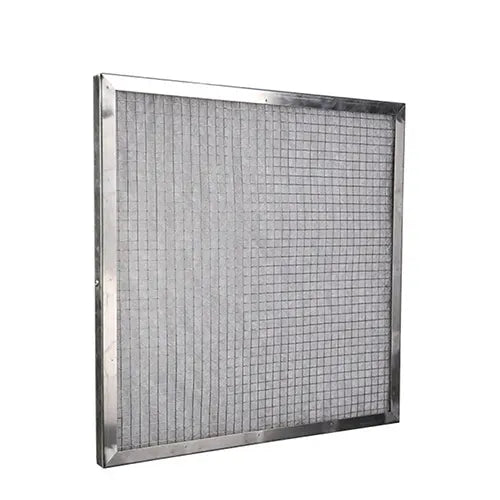

High-Temperature Fiberglass Panel Air Filter
商品简介
-
Clean-Link’s fiberglass panel air filters are engineered for high-temperature applications, withstanding temperatures up to 300°C (575°F). The multi-layered filter media is made from a random array of glass fibers, offering excellent chemical and thermal resistance. These filters are ideal for air filtration systems exposed to extreme heat, providing reliable performance even in harsh operating conditions. Additionally, they are highly resistant to chemical corrosion and have a low liquid loading rate.
The fiberglass panel filters maintain consistent high efficiency throughout their service cycle, offering a longer lifespan and stable performance. Available with frames in aluminum, stainless steel, or galvanized metal, these filters are self-extinguishing and customizable to meet specific needs.
ISO16890:
Features
商品特点
Applications
商品应用场景
Specifications
| Filtration Grade | Dimensions (mm) W*H* D | Initial Resistance (Pa) | Final Resistance (Pa) | Wind Velocity Test (m/s) | Average Weight Efficiency |
| G3 | 500*500*15 | 45 | 250 | 1.0 | 86% |
| G3 | 500*500*21 | 45 | 250 | 1.0 | 86% |
| G3 | 500*500*96 | 60 | 280 | 1.0 | 86% |
