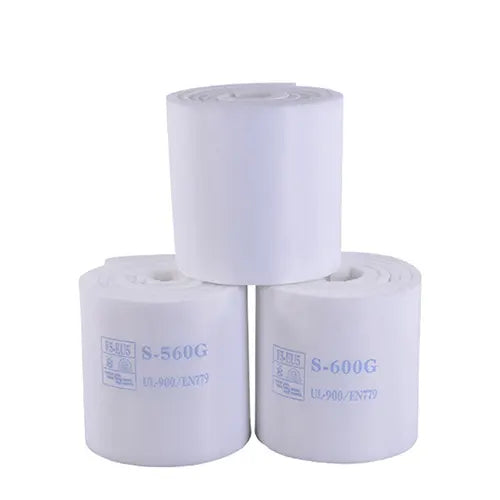

Paint Booth Intake Ceiling Filter Media C-600G

商品简介
    The paint booth ceiling filter media C-600G is a high-performance ceiling filter media, meticulously engineered from 100% polyester fibers to deliver superior air filtration in demanding industrial environments. With an M5 filtration grade, it provides an excellent barrier against fine dust particles, ensuring cleaner air and optimal operational outcomes.
EN779:
ISO16890:
FeaturesApplicationsDownloads Data Sheets
GET A FREE QUOTE

Features

商品特点
    • M5 Grade Filtration: Efficiently captures fine dust particles.
    • High Dust Holding Capacity: Ensures long service life (450 g/m²).
    • Uniform Laminar Airflow: Adhesive-impregnated for optimal spray painting.
    • Flame Retardant: Complies with DIN53438-F1 & UL900-Class2.
    • Durable Polyester Fibers: 100% polyester construction.
    • Reinforced Outlet Scrim: Prevents fiber migration.
    • High Average Efficiency: 96% average weight efficiency.

Applications

商品应用场景
    • Spray Painting & Coating Booths:

      Automotive refinishing and manufacturing.
      Furniture and wood finishing.
      Metal fabrication and industrial coating.
      Ensures a dust-free environment for impeccable paint jobs and surface finishes.

    • Industrial Ventilation & Air Handling Systems:

      Electronics Manufacturing: Protects sensitive components from particulate contamination.
      Chemical Processing: Maintains air purity in controlled environments.
      Pharmaceutical Production: Contributes to cleanroom standards and product integrity.
      Food & Beverage Industry: Helps ensure hygienic conditions and prevent product contamination.
      Mineral Processing & Smelting Operations: Filters intake air for equipment and improves workplace air quality.

    • General Industrial Workshops: Provides cleaner air in assembly areas, metalworking shops, and other manufacturing facilities.
    • Pre-filtration for Higher Efficiency Filters: Can be used as an effective pre-filter to extend the life of more expensive final filters in multi-stage filtration systems.

Specifications

    Material 100% POLYESTER FIBRES
    Model C-600G
    Normal Thickness (mm) 20±3
    Weight (g/㎡) 600
    Wind Velocity Test (m/s) 0.25
    Initial Resistance (Pa) 30
    Final Resistance (Pa) 400
    Average Weight Efficiency 96%
    Rated Air Flow (m³/h) 900
    Dust Holding Capacity (g/㎡) 450
    Filtration Grade M5


    Technical Data

    paint booth ceiling filter media C-600 data sheet





    Custom Solutions

    Please send us your requirements for custom sizes and thicknesses.
