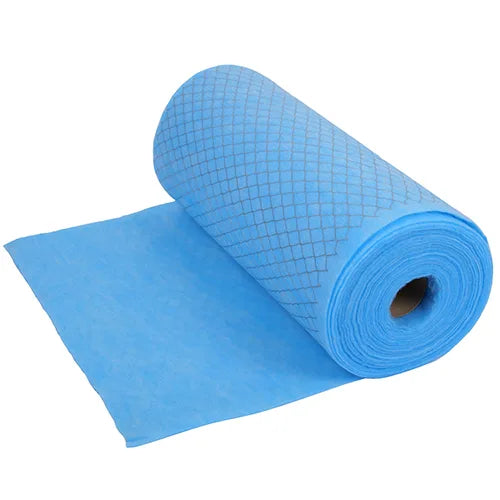

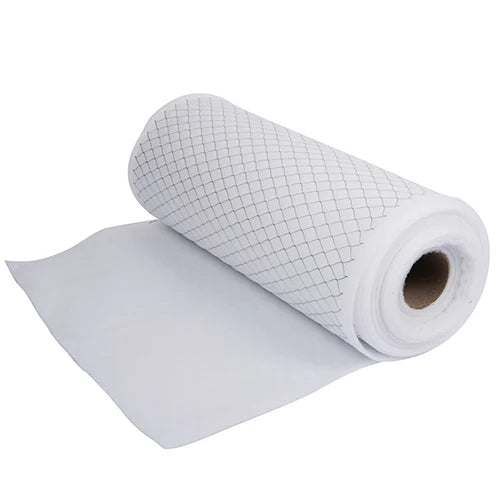

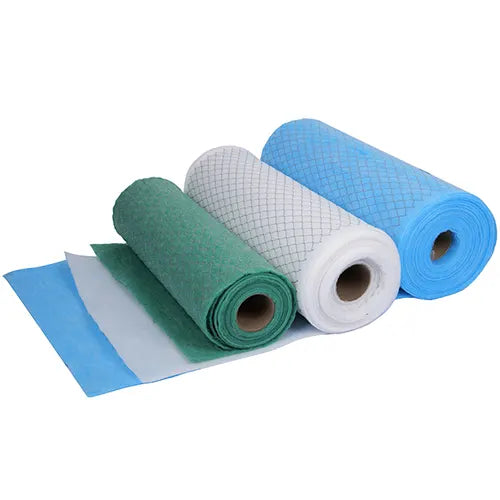

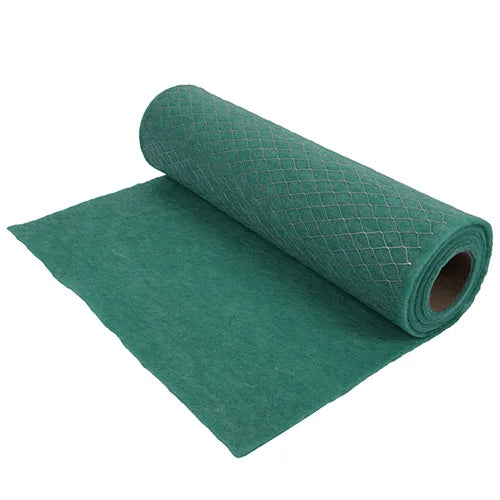

Laminated Air Filter Media
商品简介
-
Laminated air filter media is crafted from high-quality, durable, non-breakable synthetic fibers and is reinforced with a mesh layer to enhance its stiffness and structural integrity. This design makes it exceptionally effective in environments with high levels of air pollution and contamination.
The reinforced construction not only boosts filtration efficiency but also extends the filter’s lifespan, reducing the frequency of replacements and lowering overall maintenance costs. Its robust design ensures enhanced durability, prolonged service life, and superior dust-holding capacity.
Ideal for use as pre-filters or primary filters in HVAC systems, this filter media is an excellent choice for maintaining clean and healthy air quality.
Features
商品特点
Applications
商品应用场景
Specifications
| Filtration Grade | Arrestance | Wind Velocity Test (m/s) | Initial Efficiency | Initial Resistance (Pa) | Dust Holding Capacity (g/㎡) |
| G3 | 91% | 0.2 | <15 | 3 | 135 |
| G4 | 91% | 0.5 | <10 | 10 | 135 |
| M5 | 92% | 0.4 | <20 | 20 | 138 |
| M6 | 96% | 0.3 | <30 | 30 | 138 |
| F7 | 97% | 0.15 | <55 | 40 | 142 |
| F8 | 98% | 0.1 | <80 | 50 | 142 |
| F9 | 99% | 0.1 | <90 | 55 | 150 |
| Standard Size: 610mm*150mm、510mm*150mm Thickness: 3mm | |||||
