H13 air filters are part of the high-efficiency particulate air (HEPA) filtration system and play a critical role in environments where controlled air quality is required in HVAC systems, cleanrooms, healthcare facilities, and industrial applications.

Certified under EN 1822 and ISO 29463, H13 filters are engineered to capture at least 99.95% of airborne particles at the Most Penetrating Particle Size (MPPS)—typically between 0.1 and 0.3 microns.

These particles include fine dust, allergens, bacteria, and many airborne contaminants that require high-efficiency filtration beyond standard HVAC filters.

In HVAC system design, H13 filters are not standalone solutions—they are typically part of a multi-stage air filtration system designed to balance efficiency, airflow, and pressure drop.

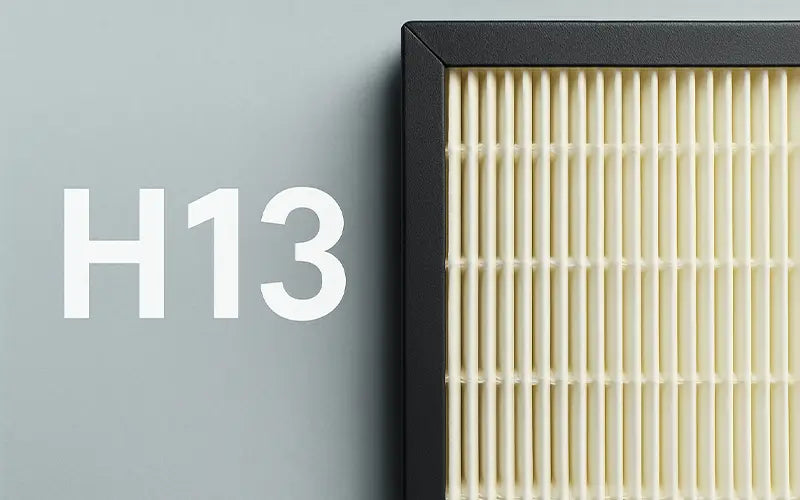

What Is an H13 Air Filter?

An H13 air filter is a HEPA-grade high-efficiency filter defined under international standards such as EN 1822 and ISO 29463.

These standards evaluate filters based on their ability to capture particles at the Most Penetrating Particle Size (MPPS), typically between 0.1 and 0.3 microns.

To qualify as H13, a filter must achieve: ≥99.95% efficiency at MPPS

This places H13 between:

• H12 (≥99.5%)
• H14 (≥99.995%)

H13 filters are widely used where high but not extreme air purity is required, making them suitable for HVAC systems, cleanrooms, and controlled industrial environments.

Filtration Efficiency of H13

H13 filters are designed to capture fine airborne particles at MPPS conditions, which represent the most difficult particle size to filter.

Compared to lower and higher HEPA grades:

H13 filters are especially effective at removing:

• PM2.5 fine particles
• Pollen and mold spores
• Bacteria and microbial carriers
• Fine combustion-related aerosols

However, in real HVAC applications, performance also depends on:

• airflow velocity
• system sealing
• pressure drop
• installation quality

Where H13 Filters Are Used (B2B Applications)

H13 filters are widely deployed in commercial, industrial, and controlled environments requiring high air cleanliness levels.

Cleanrooms, Pharmaceuticals, and Healthcare

H13 filters are commonly used in:

• ISO Class 5–7 cleanrooms
• Pharmaceutical production areas
• Biotechnology laboratories
• Hospital HVAC systems (including operating rooms)

Electronics Manufacturing & Controlled Production

Used in environments where microscopic contamination can affect product quality:

• Semiconductor manufacturing
• Optical production
• Precision electronics assembly

Industrial Air Filtration Systems

H13 filters support fine particle control in industrial HVAC systems where contamination protection is required.

Commercial Buildings & HVAC Systems

H13 filters are used in high-performance HVAC systems for:

• Office buildings
• Laboratories
• Public facilities
• High-end commercial environments

Data Centers

In data centers, H13 filtration helps reduce airborne particles that may affect:

• cooling systems
• electronic equipment stability
• airflow consistency

Technical Standards That Define H13

H13 filters are defined by two major international standards:

EN 1822 Standard

EN 1822 classifies HEPA and ULPA filters based on:

• MPPS efficiency testing
• leak detection (scan testing)
• full filter integrity validation

Key parts include:

• classification (EPA, HEPA, ULPA)
• particle counting methods
• leak testing procedures

ISO 29463 Standard

ISO 29463 harmonizes HEPA classification globally and ensures consistency across regions and industries.

It includes:

• HEPA classification system (E10–U17)
• flat-sheet media testing
• global HVAC applicability

Leak Testing Importance

For H13 filters used in HVAC and cleanroom systems:

• scan testing ensures no bypass leakage
• each filter may be individually certified
• integrity is as important as efficiency

HVAC System Design: Why H13 Is Not Used Alone

In HVAC systems, H13 filters are typically used as final-stage filters, not standalone components.

A standard staged filtration system includes:

Stage 1

• Panel filters for coarse dust removal

Stage 2

• Pocket filters for medium particle load

Stage 3

• Compact or V-bank filters for fine prefiltration

Stage 4 (Final Stage)

• H13 HEPA filter

Why staged filtration is important:

• reduces pressure drop across HVAC system
• extends HEPA filter service life
• stabilizes airflow in AHUs
• reduces total energy consumption
• improves system reliability

When Should You Use H13 Filters?

Suitable applications:

• Cleanrooms (ISO 5–7)
• Pharmaceutical production
• Hospitals and operating rooms
• Controlled industrial environments
• High-performance HVAC systems

When H13 may NOT be optimal:

• General office ventilation systems without contamination risk
• Low static pressure HVAC systems
• Cost-sensitive commercial buildings

In these cases, lower resistance filters (H10–H12) or compact filtration systems may be more appropriate.

Pressure Drop and System Performance

One of the key considerations for H13 filters is pressure drop.

Because of dense filter media:

• airflow resistance increases
• fan energy demand increases
• system design becomes critical

Improper application can lead to:

• reduced airflow
• higher energy consumption
• shorter filter lifespan

Therefore, H13 must always be selected as part of a system-level HVAC design decision, not just a product upgrade.

Clean-Link Air Filtration Solutions

Clean-Link provides HVAC and industrial air filtration solutions for commercial and controlled environments.

Product range includes:

• HEPA filters (H13 / H14)
• Panel filters
• Pocket filters
• Compact filters
• V-bank filters
• Activated carbon filters
• Custom air filters

We support:

• HVAC system design optimization
• cleanroom filtration planning
• industrial air filtration systems
• OEM and custom manufacturing
• application-based filter selection

Key Takeaways

• H13 filters capture ≥99.95% of particles at MPPS
• They are widely used in HVAC, cleanrooms, and industrial systems
• They must be part of staged filtration design
• System design is as important as filter efficiency
• Proper selection reduces energy cost and improves performance

FAQ

What is an H13 HEPA filter?

A high-efficiency filter capturing ≥99.95% of particles at MPPS, used in HVAC and cleanroom systems.

Is H13 better than H12?

Yes, but it also has higher pressure drop and energy demand.

Can H13 be used in all HVAC systems?

No. System airflow capacity must be evaluated before use.

Where are H13 filters commonly used?

Cleanrooms, hospitals, industrial HVAC systems, and controlled environments.
