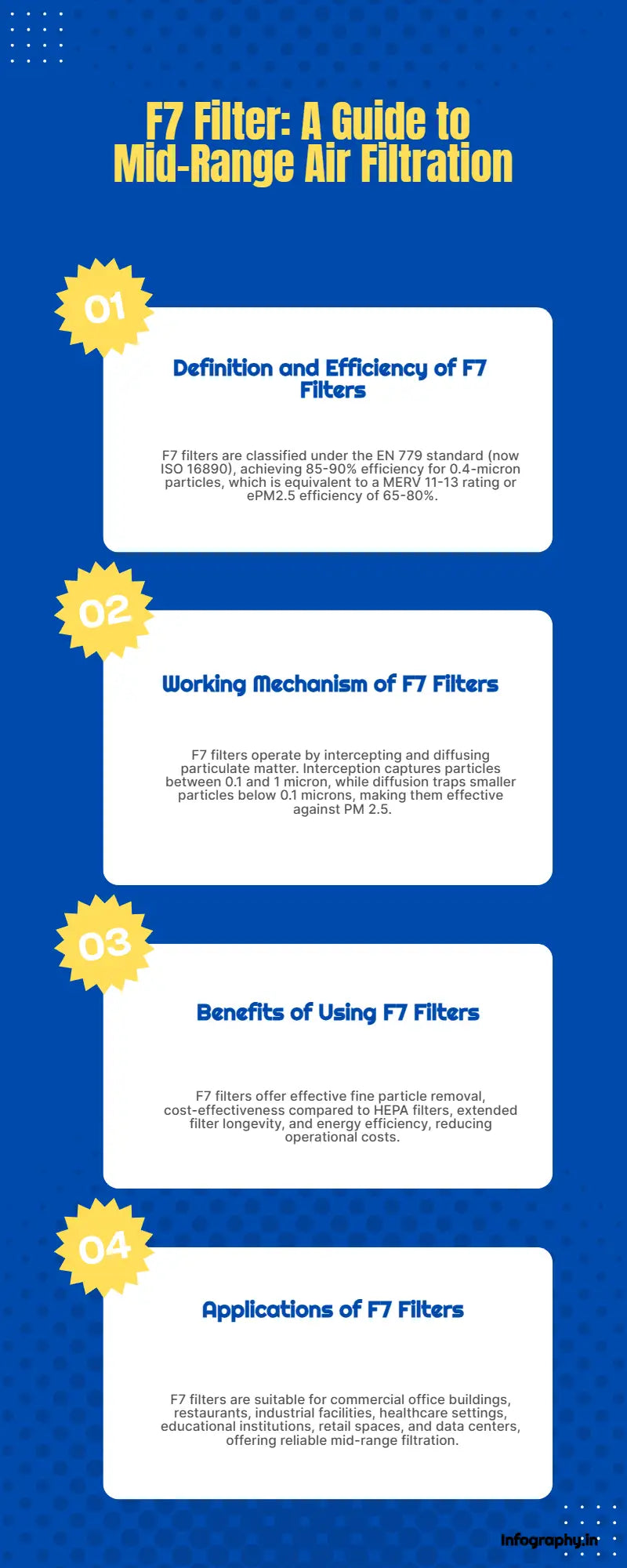

What Is an F7 Filter? Your Guide to Mid-Range Air Filtration
Air quality remains a critical concern for industries worldwide, with fine particulate matter such as PM 2.5 posing significant health and operational challenges.
Among the solutions available, the F7 filter stands out as an effective mid-range option for enhancing indoor air quality (IAQ) without excessive strain on HVAC systems.
Clean-Link Air Filtration Technology specializes in providing replacement air filters and filter media for commercial, industrial, and institutional HVAC applications.
This guide examines the F7 filter—its definition, functionality, benefits, and applications—to assist professionals in optimizing air filtration strategies.
What Is an F7 Filter?
An F7 filter is classified under the EN 779 standard, a former European metric for air filter performance, now largely replaced by ISO 16890.
It achieves an efficiency of 85-90% for particles sized 0.4 microns, effectively capturing fine particulates such as PM 2.5, smoke, and pollen. In contemporary terms, this corresponds to a MERV 11-13 rating under ASHRAE guidelines or an ePM2.5 efficiency of 65-80% per ISO 16890.
This positions the F7 filter as a robust intermediary between low-efficiency filters (e.g., MERV 8) and high-efficiency options like HEPA (99.97% at 0.3 microns).
Constructed typically from synthetic fibers or microglass, F7 filters are engineered with pleated or pocketed designs to maximize surface area.
This configuration enhances particle capture while maintaining acceptable airflow resistance, making them suitable for a wide range of HVAC systems requiring balanced performance and cost-effectiveness.
How F7 Filters Work
The operational efficacy of an F7 filter relies on established filtration principles: interception and diffusion.
For particles between 0.1 and 1 micron—such as PM 2.5—interception occurs as these contaminants follow airflow paths and are captured upon contact with filter fibers.
Smaller particles, below 0.1 microns, are trapped through diffusion, where random Brownian motion causes them to collide with the dense filter media and adhere via molecular forces.
Larger particles (above 3 microns) may also be retained through impaction, though the F7 filter excels primarily with fine particulates.
This mechanism enables the F7 filter to address PM 2.5, a known contributor to respiratory and cardiovascular issues, as identified by regulatory bodies like the EPA.
Compared to higher-efficiency filters, the F7 filter maintains a lower pressure drop, reducing the energy demand on HVAC systems while still delivering substantial air quality improvements.
Benefits of Using an F7 Filter
The adoption of an F7 filter offers several advantages for professional environments:
-
- Effective Fine Particle Removal: With a capture rate of 65-80% for PM 2.5, it significantly reduces airborne allergens, smoke, and dust, enhancing IAQ.
-
- Cost-Effectiveness: It provides a high level of filtration at a lower cost than HEPA or ULPA filters, appealing to budget-conscious operations.
-
- Extended Filter Longevity: By trapping fine particles efficiently, it delays clogging compared to denser filters, reducing replacement frequency.
-
- Energy Efficiency: Its moderate resistance to airflow minimizes fan energy consumption, potentially lowering operational costs by 10-15% in high-use settings.
Where F7 Filters Shine
The F7 filter is highly adaptable, serving a variety of professional applications. In commercial office buildings, it mitigates urban pollutants such as vehicle exhaust and pollen, maintaining a healthy work environment.
Restaurants utilize F7 filters within HVAC systems to address fine particles from cooking processes, ensuring consistent air quality in dining areas when paired with appropriate pre-filters.
Industrial facilities, such as manufacturing plants, employ them to capture fine dust from production activities, preserving equipment and air cleanliness without excessive airflow restriction.
In healthcare settings, F7 filters often function as pre-filters to higher-efficiency systems (e.g., HEPA), removing larger contaminants to optimize overall performance.
Educational institutions and retail spaces also benefit, leveraging the F7 filter to manage dust in high-traffic areas while controlling energy expenditures.
While not suited for ultra-clean environments requiring HEPA or ULPA standards, the F7 filter excels in scenarios demanding reliable mid-range filtration.
Clean-Link’s F7-Grade Filtration Options
Clean-Link Air Filtration Technology recognizes the strategic importance of mid-range solutions like the F7 filter. Our portfolio of replacement air filters and custom filter media includes options achieving 85-90% efficiency at 0.4 microns, designed to meet the specific requirements of diverse HVAC systems.
Applications of F7 Filters
The F7 filter, rated at 85-90% efficiency for 0.4-micron particles (MERV 11-13), offers versatile mid-range filtration. Below are its primary applications across industries:
-
- Commercial Office Buildings: Captures PM 2.5 from urban pollutants like exhaust and pollen, ensuring consistent IAQ with minimal HVAC strain.
-
- Restaurants: Filters fine cooking particles and external dust in dining-area HVAC, supporting comfort and regulatory compliance.
-
- Industrial Facilities: Removes fine dust (e.g., from manufacturing) in HVAC systems, maintaining airflow and equipment safety.
-
- Healthcare Settings: Acts as a pre-filter to HEPA, trapping larger contaminants to enhance system efficiency and IAQ.
-
- Educational Institutions: Reduces allergens and dust in high-traffic spaces, aligning with budget and air quality needs.
-
- Retail and Public Spaces: Manages PM 2.5 in busy areas, providing cost-effective filtration for customer comfort.
-
- Data Centers: Protects electronics from fine dust in cooling systems, balancing cleanliness and airflow efficiency.
The F7 filter delivers reliable performance across these sectors, making it a valuable solution from Clean-Link Air Filtration Technology.
Conclusion
The F7 filter represents a highly effective mid-range filtration option, capable of addressing PM 2.5 and other fine particulates while maintaining HVAC system efficiency.
Its adaptability across commercial, industrial, and institutional applications underscores its value to professionals managing air quality.
Clean-Link Air Filtration Technology remains committed to delivering advanced filtration solutions, ensuring that businesses can achieve cleaner, safer air.
Reach out today to explore how an F7 filter can elevate your facility’s performance.
