Understanding HEPA Filter Efficiency: Standards, Testing Methods, and Critical Applications

In cleanrooms, pharmaceutical facilities, hospitals, laboratories, and electronics manufacturing environments, air filtration is not simply an HVAC detail. It is part of contamination control, equipment protection, process stability, and risk management.

HEPA filters are widely used in critical air systems because they can remove a very high proportion of airborne particles. However, selecting the right HEPA filter requires more than checking a single efficiency number.

Filter class, pressure drop, airflow compatibility, leak integrity, installation quality, and maintenance planning all affect real-world performance.

This guide explains how HEPA filter efficiency is measured, how major standards differ, how HEPA filters are tested, and what buyers should consider before selecting filters for critical applications.

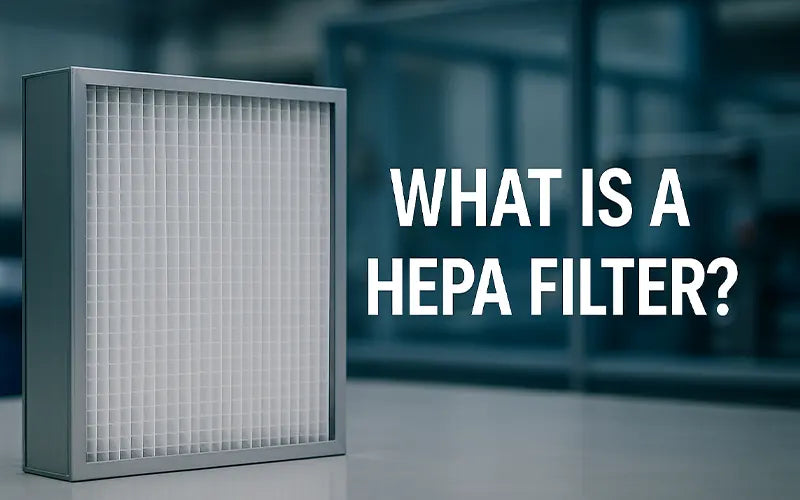

What Is a HEPA Filter?

HEPA stands for High Efficiency Particulate Air.

A HEPA filter is a high-efficiency particulate filter designed to capture very small airborne particles from supply, recirculation, or exhaust air streams. HEPA filters are commonly used where particle contamination can affect product quality, environmental control, safety, or process reliability.

Depending on the standard and market, HEPA performance may be expressed in different ways.

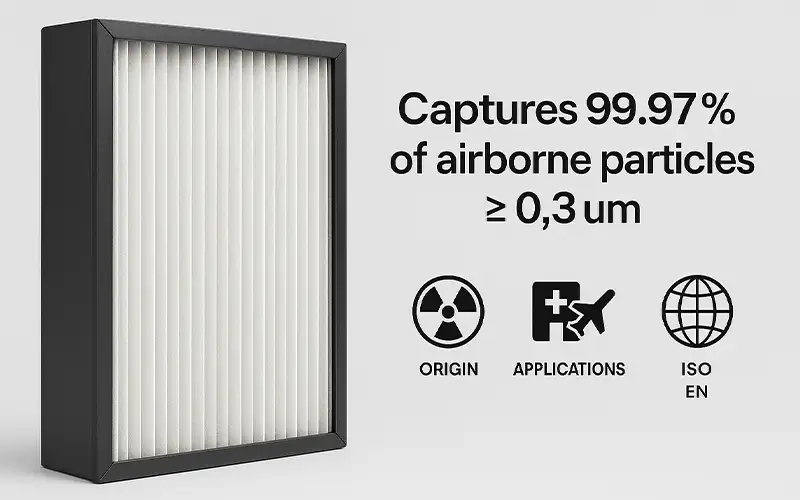

In North American practice, HEPA is commonly associated with a minimum efficiency of 99.97% at 0.3 μm under defined test conditions.

In EN 1822 and ISO 29463 classifications, filters are evaluated at their Most Penetrating Particle Size, or MPPS. Under this system, H13 and H14 are classified as HEPA filters, while U15 to U17 are classified as ULPA filters.

For this reason, buyers should not compare HEPA ratings from different standards without confirming the test method, particle size, airflow, and classification system.

Why HEPA Filter Efficiency Is Not Just “99.97% at 0.3 Microns”

The phrase “99.97% at 0.3 microns” is widely used, but it should not be treated as the only way to describe HEPA performance.

Different standards use different classification approaches.

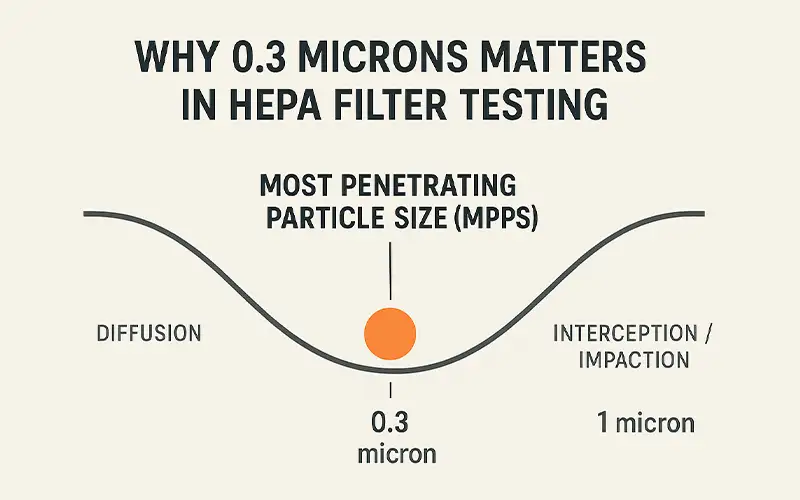

Under EN 1822 and ISO 29463, high-efficiency filters are tested at the MPPS. This is the particle size that penetrates the filter media most easily under the test conditions.

For many glass-fiber filter media types, the MPPS may be closer to approximately 0.1 to 0.2 μm rather than exactly 0.3 μm. The actual MPPS can vary depending on media construction, airflow velocity, and other test conditions.

This matters because a filter may perform differently across particle sizes. In general:

• Larger particles are often captured through interception and impaction.

• Smaller particles are often captured more effectively through diffusion.

• The MPPS is the range where filtration efficiency is usually lowest.

A properly tested HEPA filter should be evaluated according to the relevant standard and intended application, not only by a broad marketing claim.

HEPA, EPA, and ULPA Filter Classes

Under EN 1822, filters are divided into EPA, HEPA, and ULPA categories.

H13 and H14 are commonly selected for cleanroom and critical process applications because they provide high particulate efficiency while remaining practical for many HVAC and terminal filtration systems.

ULPA filters provide even higher efficiency, but they may also create higher pressure drop and more demanding airflow requirements. A ULPA filter is not automatically the best choice for every critical application.

The right filter should match the required cleanliness level, system capacity, pressure-drop limits, maintenance strategy, and total cost of ownership.

EN 1822 and ISO 29463: What Is the Difference?

EN 1822 is widely used in Europe for EPA, HEPA, and ULPA filter classification, performance testing, and marking.

ISO 29463 is an international series covering high-efficiency filters and filter media. It is closely aligned with EN 1822 in its use of MPPS-based testing and classification principles.

For international projects, both standards are important because they help define:

• filter classification

• efficiency testing methods

• leakage testing methods

• marking and documentation

• production testing expectations

When comparing suppliers, buyers should ask whether the filter is tested to EN 1822, ISO 29463, IEST recommended practice, or another applicable method.

A datasheet should clearly state the filter class, rated airflow, initial pressure drop, final resistance recommendation, dimensions, media type, frame construction, gasket configuration, and test standard.

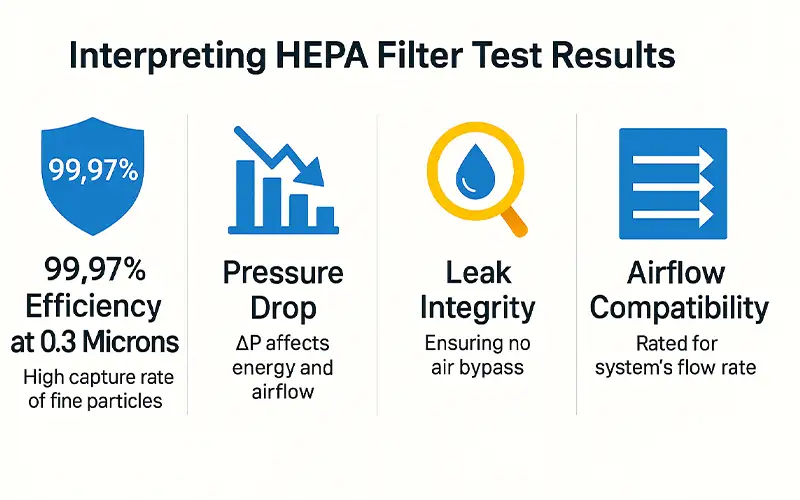

How HEPA Filters Are Tested

HEPA filter testing typically evaluates two separate issues:

1. Media efficiency

2. Filter integrity

A filter can have high-efficiency media but still fail in service if air bypasses the media through a damaged seal, frame leakage, poor installation, or a defect in the filter pack.

Efficiency Testing

Efficiency testing measures how effectively the filter captures aerosol particles.

Depending on the test method, common challenge aerosols may include:

• DEHS

• PAO

• NaCl

The exact aerosol, instrument, airflow, and test procedure depend on the standard and application.

For EN 1822 and ISO 29463 testing, the focus is on filter performance at MPPS.

Scan Testing and Leak Testing

Scan testing moves a probe across the filter face and perimeter to identify local defects, media damage, seal leakage, or frame bypass.

This type of testing is especially important for individually tested HEPA and ULPA filters used in cleanrooms and other controlled environments.

Integrity testing may also be carried out after installation to verify that the filter, gasket, frame, housing, and installation arrangement are functioning correctly as a system.

Photometers and Particle Counters

Photometers are commonly used for aerosol challenge and leak-detection testing.

Particle counters are used to measure airborne particle concentrations and may support cleanroom classification, monitoring, and size-resolved measurement.

The right test method depends on the product standard, the facility validation plan, and the application risk level.

Pressure Drop: Why It Matters

Efficiency is important, but pressure drop is equally important in system design.

Pressure drop is the resistance a filter creates as air passes through it. A higher pressure drop can increase fan energy demand, reduce available airflow, and place added strain on the HVAC system.

For critical environments, filter selection should balance:

• filtration efficiency

• rated airflow

• initial pressure drop

• dust-holding capacity

• expected replacement interval

• fan capability

• energy use

• contamination-control requirements

A filter with the highest possible efficiency is not always the best system choice if it causes excessive resistance or does not match the design airflow.

This is why cleanroom and critical HVAC filter selection should be based on the full air system, not just the filter label.

Why Filter Integrity and Installation Matter

A HEPA filter only performs as intended when the complete installation is sound.

Potential leakage points include:

• damaged media

• frame defects

• poor gasket compression

• housing leakage

• incorrect clamping

• installation damage

• bypass around the filter

Even a high-efficiency filter cannot protect a critical zone if unfiltered air can bypass the media.

For critical applications, buyers should consider not only the filter itself but also:

• housing design

• gasket or gel-seal configuration

• installation method

• access for testing and replacement

• in-situ leak testing requirements

• maintenance procedures

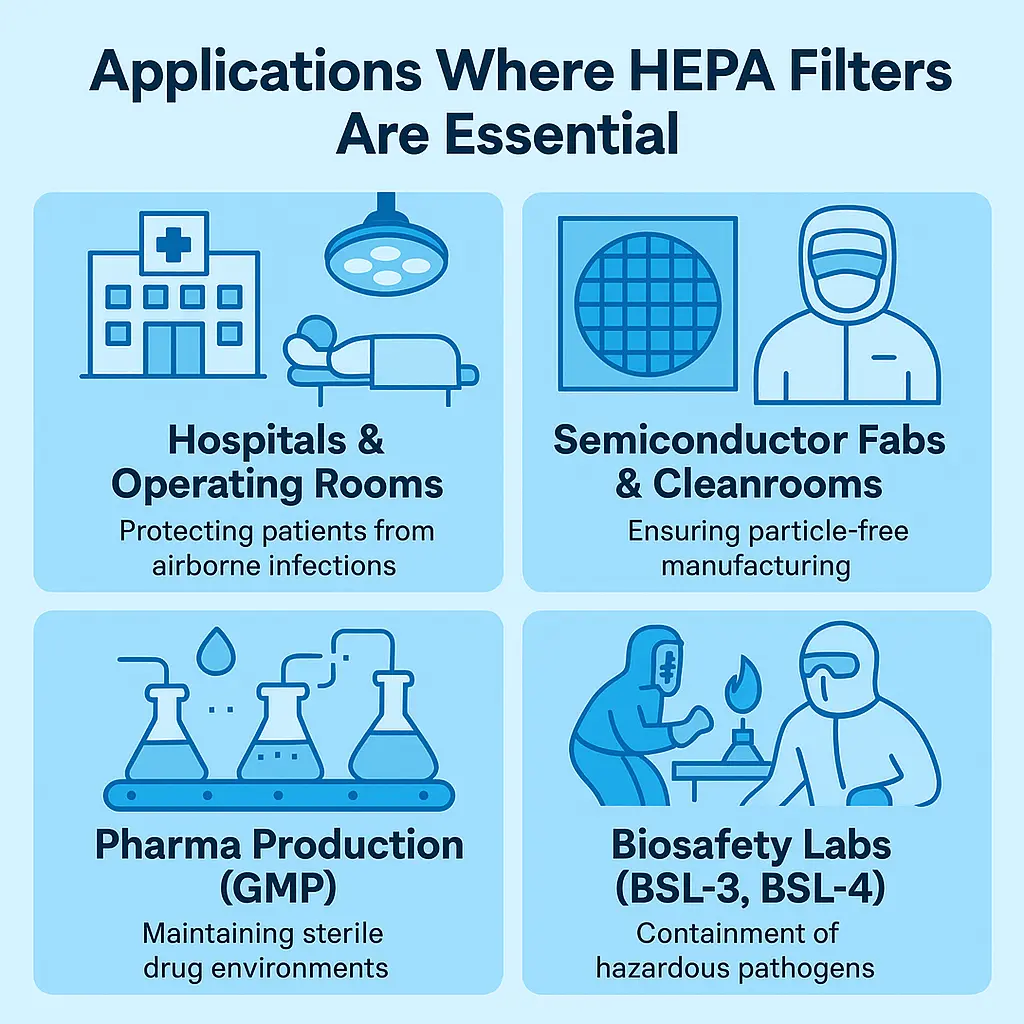

Where HEPA Filters Are Commonly Used

Cleanrooms and Electronics Manufacturing

Electronics and semiconductor environments require strict particulate control because airborne contamination can affect yields, component reliability, and process stability.

HEPA or ULPA filters may be used in ceiling terminal units, fan filter units, recirculation systems, and process-specific air handling systems.

For these applications, airflow uniformity, pressure stability, filter integrity, and cleanroom classification are often as important as nominal efficiency.

Pharmaceutical and Aseptic Processing

Pharmaceutical environments require careful control of particulate and microbial contamination.

HEPA filtration is commonly used in cleanrooms, filling areas, aseptic processing zones, and controlled HVAC systems. The required filtration arrangement depends on the process, facility design, applicable GMP requirements, and contamination-control strategy.

Healthcare and Isolation Applications

HEPA filtration may be used in protective environments, selected isolation applications, mobile filtration systems, and other healthcare spaces where risk assessment or facility standards require high-efficiency particulate control.

However, HEPA use should be based on the specific room function, airflow design, pressure relationship, and applicable healthcare ventilation guidance.

Biosafety and High-Containment Laboratories

In biosafety and containment applications, HEPA filters may be used in supply and/or exhaust systems depending on the containment design and regulatory requirements.

These systems often require additional measures such as bag-in/bag-out housings, redundant filtration stages, controlled pressure relationships, and verified leak integrity.

HEPA vs. ULPA: Which Should You Choose?

ULPA filters offer higher particle-removal efficiency than HEPA filters, but they can also create higher resistance and require more careful system design.

Choose HEPA when the application requires high particulate efficiency with practical airflow and energy performance.

Consider ULPA when the process requires a stricter contamination-control level and the HVAC or fan filter system is designed to handle the higher resistance.

The decision should be based on:

• cleanliness classification

• process sensitivity

• airflow requirements

• pressure-drop limits

• maintenance planning

• lifecycle cost

• applicable standards

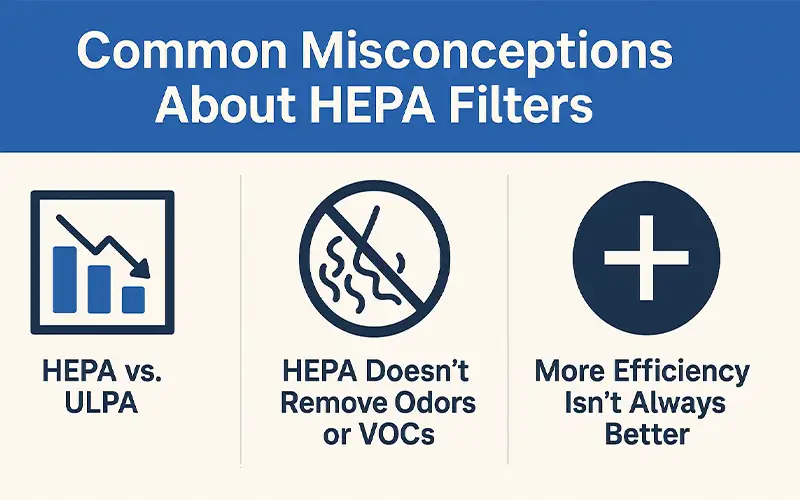

Common HEPA Filter Misconceptions

“Higher efficiency is always better.”

Not necessarily.

Higher efficiency can mean higher pressure drop, greater energy demand, and shorter service life if the system is not designed for it.

“HEPA filters remove odors and VOCs.”

HEPA filters capture particles. They do not remove gases, odors, or volatile organic compounds unless the system also includes activated carbon or another gas-phase filtration media.

“A HEPA filter rating guarantees cleanroom performance.”

A HEPA filter is only one part of cleanroom performance.

Room cleanliness also depends on airflow design, air change rate, pressure relationships, leakage control, operational behavior, cleaning procedures, maintenance, and monitoring.

How to Choose the Right HEPA Filter

Before selecting a HEPA filter, confirm:

• required standard and filter class

• rated airflow

• initial pressure drop

• final pressure-drop recommendation

• filter dimensions

• frame and gasket type

• media construction

• temperature and humidity conditions

• chemical resistance requirements

• fire performance requirements

• installation configuration

• testing and certification requirements

• replacement and maintenance plan

For critical applications, it is also important to confirm whether individual scan testing, integrity documentation, or in-situ leak testing is required.

Final Thoughts

HEPA filtration is essential in many critical air systems, but the right filter is not determined by efficiency alone.

A reliable solution should balance particulate performance, airflow, pressure drop, integrity, installation quality, maintenance planning, and application-specific requirements.

Whether the application is a cleanroom, electronics manufacturing area, pharmaceutical facility, healthcare space, or high-containment laboratory, proper filter selection should start with the system and process requirements.
