MERV 14 Filters Explained: What They Capture & Why They Matter

When wildfire smoke blankets cities or spring pollen triggers allergies indoors, particle size becomes the deciding factor in how well an HVAC filter can protect occupants.

Many contaminants in smoke and allergen clouds fall into the fine-particle range known as PM 2.5—tiny aerosols that penetrate deep into lungs and enter the bloodstream.

A MERV 14 filter, by definition, removes at least 90 percent of particles around 1 micron, capturing most PM 2.5 as well as bacteria-sized droplets that lower-rated filters miss.

Understanding this “mid-high” filtration level helps facility managers and homeowners balance air-quality gains against energy costs, making MERV 14 an attractive step up from common MERV 11 or 13 media.

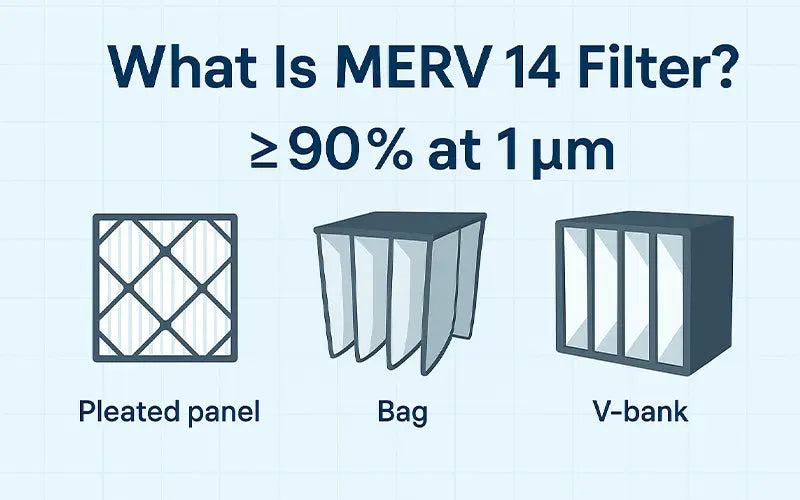

What Is a MERV 14 Filter?

ASHAE Standard 52.2 assigns Minimum Efficiency Reporting Values (MERV) from 1 to 16, and MERV 14 sits just below hospital-grade HEPA. To qualify, a filter must capture at least 90 percent of particles measuring 1 micron—encompassing fine dust, many bacteria, and a substantial share of PM 2.5 that contributes to respiratory problems.

Common media constructions include deep-pleated synthetic microfibers, micro-glass fibers, or hybrid blends layered in a progressively denser pattern. This design maximizes surface area, allowing high particle efficiency without an excessive pressure drop. For large commercial air handlers, rigid V-bank cassettes and multi-pocket bag filters offer greater dust-holding capacity while keeping resistance in check.

When properly sealed in an HVAC rack of sufficient depth, a MERV 14 filter markedly improves indoor air quality compared with MERV 11 or 13 media, yet typically avoids the costly fan upgrades required for HEPA filtration.

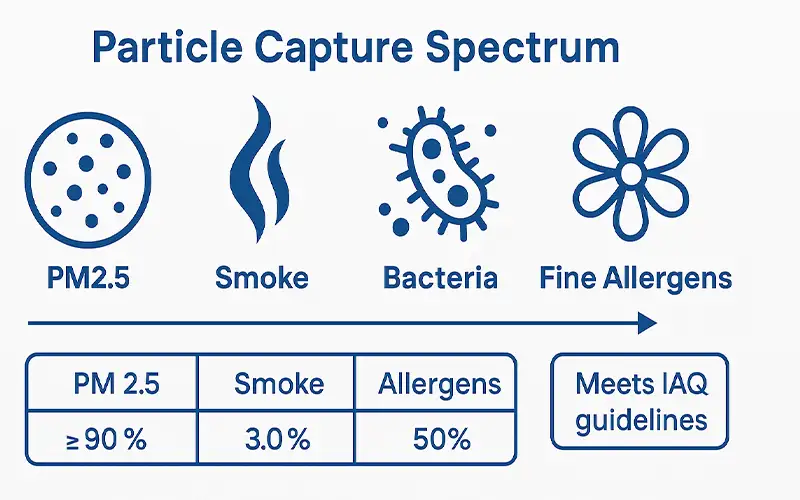

Particle Capture Spectrum: How MERV 14 Tackles PM2.5 and More

MERV 14 filters excel in the 0.3–1 micron range, removing the pollutants that most directly affect indoor air quality (IAQ).

Fine particulate matter (PM2.5) from wildfire smoke and diesel exhaust is trapped at a ≥90 percent rate, helping buildings meet WHO and EPA guidelines that cap 24-hour PM2.5 exposure at 35 µg/m³.

The same high-efficiency media intercepts airborne bacteria such as Streptococcus or Legionella, lowering infection risk in schools, offices, and outpatient clinics.

Fine allergens—including mold fragments and pet dander—fall well within the capture curve, easing symptoms for sensitive occupants.

By controlling these ultra-fine contaminants, MERV 14 filters align with ASHRAE Standard 62.1 IAQ goals and serve as a bridge between mid-tier MERV 13 and full HEPA filtration.

Clean-Link offers High Quality MERV14 Air Filters

Clean-Link offers a range of high-performance air filtration products designed for commercial and industrial applications.

MERV 14 vs. MERV 13 and MERV 15

Rating	Efficiency @ 1 µm	Typical ΔP (Pa)	Relative Filter Cost	Best Fit
MERV 13	≥ 75 %	90–110	$	Mid-grade IAQ, schools
MERV 14	≥ 90 %	120–150	$$	PM2.5 control, clinics, offices
MERV 15	≥ 95 %	150–190	$$$	Pre-HEPA hospitals, clean labs

MERV 13 offers solid everyday protection with modest pressure drop and low cost, making it the workhorse for most commercial buildings that need better-than-basic filtration.

MERV 15 nears HEPA performance but brings higher resistance and price, often requiring fan or motor upgrades.

MERV 14 sits in the sweet spot: it captures the bulk of fine particulate pollution and bacteria with only a moderate jump in ΔP and filter cost, delivering a cost-effective boost to indoor air quality without major HVAC modifications.

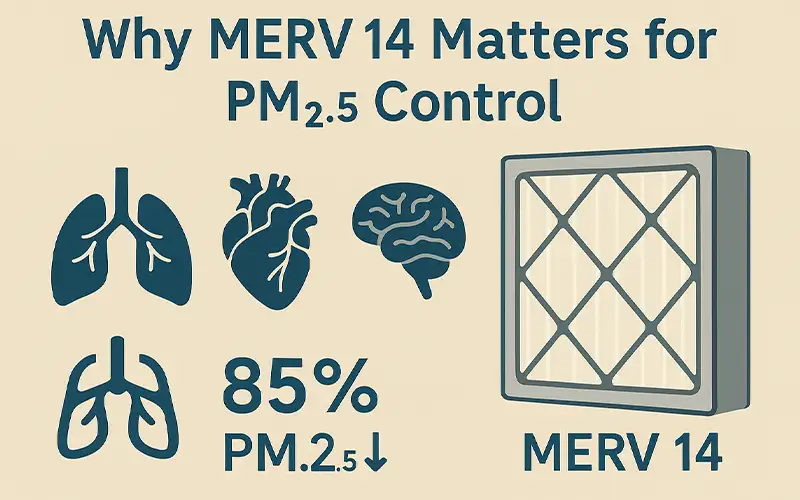

Why MERV 14 Matters for PM2.5 Control

Health Risks of PM2.5 Exposure

Particles smaller than 2.5 microns bypass nasal defenses, lodge deep in the lungs, and even enter the bloodstream.

Prolonged exposure is linked to asthma flare-ups, cardiovascular disease, and elevated mortality—especially during wildfire events and heavy traffic days.

Real-World Reductions with MERV 14 Filtration

Because a MERV 14 filter captures at least 90 percent of particles around 1 micron and roughly 80 percent down to 0.5 microns, it significantly lowers indoor PM2.5 levels.

A California school retrofit showed a 60 percent drop in classroom PM2.5 when upgrading from MERV 11 to MERV 14 during peak smoke periods.

In a controlled office study, 24-hour averages fell by 55 percent, keeping concentrations below the EPA’s 35 µg/m³ limit—without the cost or fan upgrades required for HEPA units.

Ideal Applications for MERV 14 Filtration

Schools and Universities

Classrooms and lecture halls benefit from high turnover rates and MERV 14 filters that cut PM 2.5 and airborne bacteria, supporting healthier attendance and academic performance.

Corporate Offices

Open‐plan workspaces rely on clean air to reduce sick days; MERV 14 balances fine-particle removal with moderate pressure drop, making it a cost-effective upgrade over MERV 11.

Outpatient Clinics

Waiting rooms and exam areas use MERV 14 as a pre-HEPA stage, lowering pathogen load and meeting ASHRAE 170 recommendations without full isolation‐room costs.

Data Centers

Electronics fail prematurely when coated with fine dust; MERV 14 protects sensitive servers while maintaining acceptable airflow and energy profiles.

Museums and Archives

Fine art and historical documents degrade in polluted air; MERV 14 captures smoke and sulfur aerosols that accelerate corrosion and fading.

Maintenance Best Practices

Monitor Differential Pressure in Real Time

Install ΔP gauges or digital sensors across each MERV 14 filter bank. Record readings weekly and plot them on a loading curve. A rise of 60–80 Pa above the clean baseline signals rising resistance and higher fan energy use.

Schedule 3–4 Month Change-Outs

In average schools and offices, MERV 14 filters hit the ΔP threshold within three to four months. Rely on pressure data—rather than a fixed calendar—to optimize replacement timing. Swap filters promptly once ΔP approaches the limit to maintain airflow and indoor air quality.

Keep a Maintenance Log

Track installation dates, ΔP readings, and change-outs in a centralized log. Consistent records support energy audits, warranty claims, and compliance with IAQ standards.

Regulatory and Certification Perks

LEED and WELL Credits

Installing MERV 14 filters supports LEED v4 EQc Enhanced Indoor Air Quality by assuring PM 2.5 levels remain below 12 µg/m³, earning the filtration pathway point. In the WELL Building Standard, MERV 14 meets Air Feature A05 (Filter Efficiency) and helps maintain ongoing compliance with A08 Air Quality Monitoring thresholds.

Meeting Local PM2.5 Mandates

States such as California, Washington, and Oregon require MERV 13 or higher in new commercial HVAC systems when outdoor PM 2.5 exceeds 35 µg/m³. Specifying MERV 14 comfortably surpasses these regulations, future-proofing projects against stricter air-quality codes.

MERV 14 Filters Explained What They Capture & Why They Matter

Conclusion

MERV 14 filters deliver a hard-to-beat mix of ≥90 % efficiency at 1 µm, strong PM 2.5 reduction, and manageable pressure drop—making them an ideal upgrade for schools, offices, clinics, and more.

Before ordering, confirm your HVAC fan curve, rack depth, and gasket seals can handle the 120–150 Pa initial resistance.

Engage an indoor-air-quality professional to size the filters correctly, set ΔP monitoring thresholds, and optimize change-out schedules for lasting performance.
