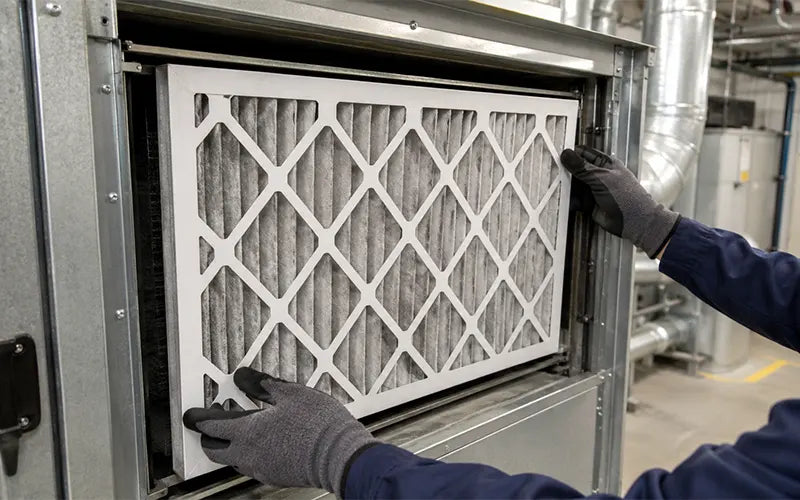

Air Filter Bypass Leakage: How Frames, Gaskets, and Installation Affect Performance

When buyers compare air filters, they often focus on efficiency rating, pressure drop, airflow, and service life. These parameters are important, but they do not tell the full story.

Even a high-efficiency filter may underperform if part of the airflow passes around the filter instead of through the filter media. This problem is called air filter bypass leakage.

In HVAC systems, cleanrooms, laboratories, industrial ventilation systems, data centers, and high-efficiency filtration applications, bypass air can reduce real filtration performance, contaminate downstream equipment, and create performance problems that are not visible from the filter datasheet alone.

That is why filter sealing should be considered part of system performance, not only a small installation detail.

ASHRAE notes that if air goes around a filter through leakage or bypass, that air is not cleaned by the filter. This is a simple but important principle for HVAC filtration performance.

What Is Air Filter Bypass Leakage?

Air filter bypass leakage happens when air flows around the filter instead of passing through the filter media.

This may occur through gaps between:

• The filter frame and filter housing
• The filter and retaining clips
• The gasket and sealing surface
• Adjacent filters in a filter bank
• The filter frame and access door
• Damaged or uneven holding frames
• Incorrectly installed filters

In simple terms, bypass air is unfiltered or less-filtered air that avoids the intended filtration path.

This can happen in commercial HVAC systems, industrial air handling units, cleanroom filtration systems, and HEPA filter installations.

Bypass leakage is especially important when the system requires higher filtration performance. The higher the required cleanliness level, the more important sealing and installation become.

Why Rated Efficiency Alone Is Not Enough

A filter efficiency rating is usually based on testing air passing through the filter under defined conditions.

However, real HVAC systems include more than the filter media.

They also include:

• Filter frames
• Gaskets
• Clips and locking systems
• Filter banks
• Housings
• Access doors
• Installation tolerances
• Maintenance practices

If part of the air bypasses the filter, the effective system performance can be lower than the rated filter efficiency.

For example, a filter may be rated for a specific efficiency class, but if gaps exist around the frame, some air may pass through those gaps with little or no filtration. This reduces the practical benefit of using the higher-efficiency filter.

This is why buyers should review both:

1. Filter performance
2. System sealing and installation quality

For HEPA and other high-efficiency filters, this becomes even more important. ISO 29463-1 covers classification, performance, testing, and marking for high-efficiency filters, while ISO 29463-4 addresses leakage testing using scan methods and other leak test approaches for high-efficiency filter elements.

Frame Fit and Dimensional Tolerance

The filter frame is the first part of the sealing system.

If the filter does not fit correctly, bypass leakage may occur even when the filter media itself is suitable.

Important frame-related factors include:

• Actual filter length, width, and depth
• Dimensional tolerance
• Frame rigidity
• Frame squareness
• Corner sealing
• Frame material
• Resistance to deformation
• Fit inside the filter track or holding frame

A filter that is slightly undersized may leave gaps. A filter that is oversized may be difficult to install correctly or may deform during installation. A weak frame may bend under airflow pressure or during handling, creating leakage paths around the filter edge.

This is why buyers should confirm both nominal size and actual size.

For replacement filters, old labels may not always be reliable. Existing systems may have used substitute sizes over time. Photos, drawings, measured dimensions, or samples can help avoid fit problems.

Related Reading: air filter specifications guide

Air Filter Gasket Position and Material

An air filter gasket helps create a seal between the filter frame and the housing or holding frame.

The gasket may be installed on:

• Upstream side
• Downstream side
• Full perimeter
• One side of the filter frame
• Gel-seal or knife-edge systems for some HEPA applications

The correct gasket design depends on how the filter is installed and where the sealing surface is located.

A gasket may fail to seal properly if:

• It is placed on the wrong side
• It does not contact the housing surface
• It is too thin for the gap
• It is too hard to compress
• It is damaged during installation
• It becomes aged, cracked, or compressed over time
• The housing surface is uneven or dirty

Common gasket materials may include foam, neoprene, EPDM, PU, silicone, or gel systems depending on application requirements.

For commercial HVAC filters, a standard gasket may be enough. For cleanroom, HEPA, pharmaceutical, laboratory, or critical process environments, gasket selection and installation requirements should be reviewed more carefully.

Filter Housing Condition

Even a well-made filter cannot seal properly if the housing is damaged or poorly maintained.

The filter housing or filter bank should provide a flat, stable sealing surface and a secure holding mechanism.

Potential housing problems include:

• Bent filter tracks
• Rusted or damaged holding frames
• Loose clips or clamps
• Missing retaining hardware
• Uneven sealing surfaces
• Dirty gasket contact areas
• Warped access doors
• Gaps between filter modules
• Poor alignment in filter banks

In many field problems, the filter itself is blamed first. But the real issue may be the filter housing, old frame tracks, incorrect installation, or poor access design.

For B2B buyers and facility teams, checking the housing condition is an important part of filter replacement planning.

Common Installation Mistakes

Air filter bypass leakage often comes from simple installation issues.

Common mistakes include:

• Installing the wrong filter size
• Forcing a filter into a tight slot
• Leaving gaps around the frame
• Installing the gasket on the wrong sealing side
• Not compressing the gasket properly
• Damaging the gasket during installation
• Leaving the access door loose
• Mixing different filter depths in one filter bank
• Installing filters in the wrong airflow direction
• Using filters without required clips or retainers
• Allowing filters to shift during operation
• Reusing damaged frames or gaskets

These problems can reduce real filtration performance even when the filter product is correct.

Installation quality is especially important after filter upgrades. A higher-efficiency filter may increase resistance. If the frame, gasket, or housing is not secure, air may take the easier path around the filter.

Related Reading: air filter pressure drop

HEPA Filter Sealing Considerations

HEPA filters require more careful sealing than general HVAC filters.

They are used in applications such as:

• Cleanrooms
• Pharmaceutical facilities
• Laboratories
• Electronics manufacturing
• Healthcare-related ventilation systems
• Critical process environments

In these systems, bypass leakage may compromise the purpose of high-efficiency filtration.

HEPA filter sealing should consider:

• Frame rigidity
• Full-perimeter gasket or gel seal
• Knife-edge compatibility where used
• Holding frame condition
• Correct compression force
• Filter-to-housing alignment
• Leak testing requirements
• Installation inspection
• Prefiltration to protect HEPA service life

The EPA describes HEPA as a pleated mechanical air filter type, and high-efficiency applications require attention not only to filter media but also to system fit and use conditions.

For critical HEPA installations, buyers should not rely on product class alone. They should also confirm the sealing method, housing design, installation procedure, and project testing requirements.

Related Reading: HEPA vs ULPA filters

How Bypass Leakage Affects System Performance

Air bypass can affect both air quality and equipment protection.

Possible impacts include:

• Lower effective filtration performance
• Dust accumulation downstream of the filter
• Coil contamination
• Fan and duct loading
• Shorter service life of downstream filters
• Reduced cleanroom or process protection
• Unstable system performance
• Misleading pressure drop readings
• More frequent cleaning or maintenance

Bypass leakage can also make troubleshooting difficult.

For example, a facility may upgrade to a higher-efficiency filter but still see dust downstream. The problem may not be the filter efficiency. It may be gaps, gasket failure, poor housing fit, or installation problems.

This is why a complete review should include the filter, the housing, and the installation method.

Why Same-Efficiency Filters May Perform Differently

Two filters with the same efficiency rating may perform differently in actual systems.

Differences may include:

• Frame strength
• Frame dimensions
• Gasket design
• Media pack sealing
• Corner construction
• Filter depth
• Installation compatibility
• Housing fit
• Resistance to deformation
• Quality control consistency

For standard HVAC filters, these differences may affect downstream cleanliness and maintenance needs. For HEPA filters, they may affect leak control and installation performance.

This is why buyers should compare more than the label.

A better comparison should include:

• Efficiency rating
• Rated airflow
• Pressure drop
• Frame material
• Actual dimensions
• Dimensional tolerance
• Gasket type and position
• Sealing surface requirements
• Installation method
• Test data where applicable
• Project requirements

Related Reading: air filter test data

Air Filter Sealing Inspection Checklist

Use this checklist when reviewing HVAC filter sealing or replacement filters.

This checklist is useful for facility teams, HVAC contractors, cleanroom operators, and maintenance teams.



What Buyers Should Provide Before Ordering

To help Clean-Link recommend filters with suitable sealing and installation compatibility, buyers should provide:

If the buyer is not sure about gasket position or frame compatibility, photos of the installed filter and housing are often very helpful.
