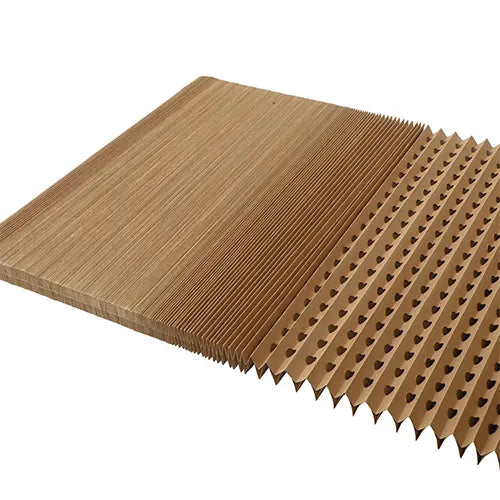

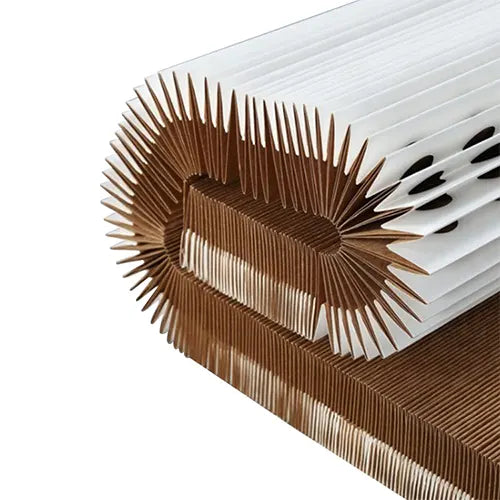

Paint Overspray Arrestor Paper Filter Media
商品简介
-
The paper arrestor filter is highly effective at capturing and retaining overspray generated during spray painting and powder coating processes, commonly used in automotive and other industrial applications.
Crafted from eco-friendly hard kraft paper, this filter media efficiently collects overspray and powder residues, ensuring safe recycling without the risk of re-contamination. Compared to other filter types, the paper arrestor filter offers a significantly longer service life—up to six times longer than alternatives.
Laboratory tests demonstrate its low pressure drop, high performance, and cost-effectiveness in spray paint booth applications. The strategically placed holes on the top layer help direct airflow, improving the filter’s ability to trap and hold overspray.
EN779
Features
商品特点
Applications
商品应用场景
Specifications
| Model | JL075 | JL090 | JL100 |
| Specification (m) | 0.75*10 | 0.90*10 | 1.00*10 |
| Thickness (mm) | 55 | 55 | 55 |
| Wind Velocity Test (m/s) | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
| Rated Air Flow (m³/h) | 3600 | 3600 | 3600 |
