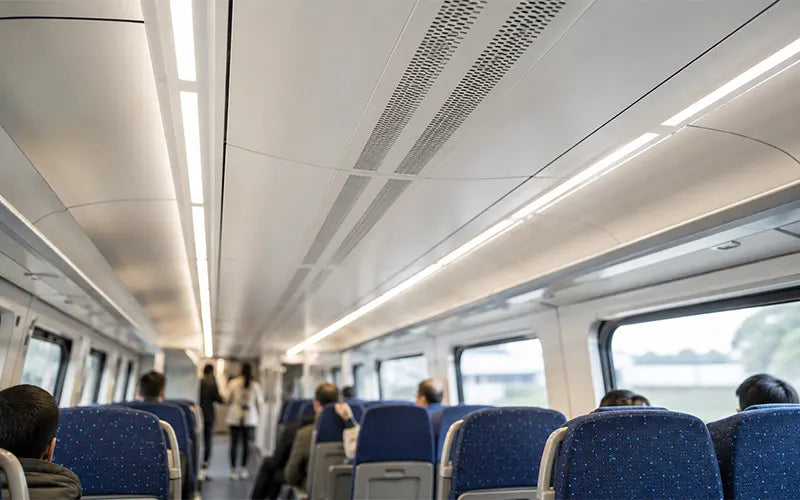

HVAC Filters for Train Carriages: Compact Design and Stable Airflow

Train carriages are compact, high-occupancy environments where air quality and airflow stability directly affect passenger comfort, HVAC performance, and system reliability.

 Unlike large building ventilation systems, carriage HVAC units must operate within limited installation space while handling changing passenger loads, outdoor air intake, tunnel dust, fine particles, and frequent door-opening cycles.

For rail transit operators, choosing the right HVAC filters is not only about filtration efficiency. It is also about balancing particle capture, pressure drop, airflow volume, replacement frequency, and equipment protection within a compact mechanical system.



Why Air Filtration Matters in Train Carriages

Train carriages operate in a demanding air environment. Airborne particles can enter the HVAC system from outdoor air, station platforms, tunnels, passenger activity, and recirculated cabin air. In underground or urban rail systems, fine particles and dust can accumulate quickly due to frequent operation, braking activity, and high passenger turnover.

Effective HVAC filtration helps:

• Reduce dust and airborne particle circulation inside the carriage
• Protect HVAC coils, fans, ducts, and internal components
• Support stable airflow under limited system space
• Improve passenger comfort in crowded cabin environments
• Reduce contamination buildup inside compact HVAC units
• Extend maintenance intervals when filters are properly selected

For train carriages, the filter must do more than “clean the air.” It must also fit the system, maintain airflow, and perform reliably under vibration, movement, and frequent operating cycles.



Common Air Quality Challenges in Train Carriages

Train carriage HVAC systems face a different set of challenges compared with commercial buildings or station ventilation systems.



Because the available installation space is limited, train carriage filters must be selected carefully. A filter with high efficiency but excessive resistance may reduce airflow and affect passenger comfort. A filter with low resistance but poor dust-holding capacity may require frequent replacement.

Fine particles such as PM2.5 and PM10 are important air quality indicators in public transportation environments. The WHO global air quality guidelines for PM2.5 and PM10 highlight the health relevance of controlling exposure to fine particulate matter in occupied spaces.

The correct choice is a balanced filter configuration.



Compact Design Requirements for Carriage HVAC Filters

Train carriage HVAC units usually have stricter space limitations than fixed building systems. Filters must fit within narrow compartments while still providing enough filtration area to manage airflow and dust loading.

Important design factors include:

1. Limited Installation Depth

Carriage HVAC units often have shallow filter slots or compact air-handling sections. This makes filter depth, frame design, and media structure especially important.

A suitable filter should:

• Fit the available filter slot
• Maintain sealing around the frame
• Avoid air bypass
• Allow quick replacement during maintenance
• Provide enough media area for the required airflow

2. Lightweight and Durable Construction

Rail applications require filters that are easy to install but durable enough to withstand vibration and frequent operation.

Common requirements include:

• Stable frame structure
• Secure media bonding
• Low risk of deformation
• Resistance to handling damage
• Reliable sealing under airflow pressure

3. High Airflow in a Small Footprint

Train carriage HVAC systems must supply enough conditioned air to passengers within a limited mechanical space. The filter needs to support airflow without creating unnecessary system resistance.

This is why low pressure drop is a key selection factor.



Why Stable Airflow Is Critical

Stable airflow is essential for passenger comfort and HVAC system performance. If the filter creates too much resistance, the system may struggle to deliver enough air to the cabin.

Poor airflow can lead to:

• Uneven cabin temperature
• Reduced ventilation effectiveness
• Higher fan energy demand
• Increased system noise
• Shorter filter service life
• More frequent HVAC maintenance
• Passenger discomfort during peak hours

For train carriages, filtration efficiency should always be evaluated together with pressure drop and dust-holding capacity. The best filter is not always the filter with the highest rating. It is the filter that can maintain the required airflow while providing the right level of particle control.



Recommended HVAC Filter Types for Train Carriages

Different rail systems may require different filter configurations depending on HVAC design, operating environment, air quality targets, and maintenance schedules.

For most train carriage systems, filters should be selected based on:

• Required airflow volume
• Available filter size
• Allowable pressure drop
• Target particle range
• HVAC unit design
• Replacement interval
• Operating environment
• Maintenance access



Key Selection Factors for Train Carriage HVAC Filters

Filtration Efficiency

The filter should match the required air quality target. In many carriage HVAC systems, the goal is to reduce dust and fine particles while protecting the HVAC unit.

Higher-efficiency filters may be used where fine particle control is required, but they must be checked against the system’s airflow capacity.

When comparing filter efficiency, buyers should review test data rather than relying only on general product labels. The ASHRAE Standard 52.2 filter testing method provides a recognized framework for evaluating particle-size removal efficiency and pressure drop.

Pressure Drop

Pressure drop is one of the most important factors in compact carriage HVAC systems. A filter with excessive resistance can reduce airflow and increase fan load.

When selecting filters, operators should consider:

• Initial pressure drop
• Final recommended pressure drop
• Airflow rate
• Filter loading speed
• Fan capacity
• Replacement schedule

Dust-Holding Capacity

Train carriages may operate for long hours in dusty environments. A filter with better dust-holding capacity can help extend service life and reduce maintenance frequency.

Frame Strength

Filters used in rail HVAC systems should remain stable during movement, vibration, and repeated maintenance handling. Weak frames may deform, create bypass gaps, or reduce sealing performance.

Size and Customization

Rail carriage HVAC systems often require customized filter dimensions. Standard commercial HVAC filter sizes may not always fit. Custom sizing can help improve system compatibility and avoid air leakage.

Maintenance Efficiency

Rail operators need filters that are easy to inspect, remove, and replace. Maintenance-friendly filter design can reduce service time and support more consistent HVAC operation.

Low Pressure Drop vs High Efficiency: Finding the Balance

In train carriage HVAC systems, airflow is limited by fan capacity, duct layout, filter area, and available space. A filter upgrade should not be based only on efficiency rating.

For example, using a higher-efficiency filter may improve particle capture, but if the filter creates too much resistance, it can reduce airflow and affect cabin comfort.

Filter upgrades should be checked against the HVAC unit’s airflow capacity. ASHRAE guidance on filtration and pressure drop notes that increasing filter efficiency can increase pressure drop, which may reduce airflow and increase fan energy use if the system is not designed for it.

A balanced filter strategy may include:

• A prefilter stage to capture coarse dust
• A fine filter stage for smaller particles
• Larger effective media area where space allows
• Low-resistance media design
• Proper sealing to prevent bypass
• Replacement based on pressure drop, not only time

This approach helps maintain stable airflow while improving filtration performance.



Where Train Carriage HVAC Filters Are Used

HVAC filters can be used in several parts of train carriage ventilation systems:

Fresh Air Intake

Fresh air intake filters help reduce outdoor dust, fine particles, and pollutants before air enters the HVAC unit.

Return Air or Recirculation Air

Return air filters help control particles generated inside the cabin from passenger movement, clothing fibers, dust, and general activity.

HVAC Unit Protection

Filters protect fans, coils, heat exchangers, and internal components from dust accumulation. Cleaner HVAC components can support more stable heat exchange and lower maintenance burden.

Odor Control Sections

Where odor or gaseous contaminants are a concern, activated carbon filters may be used as part of the system design.



Clean-Link Filter Solutions for Train Carriage HVAC Systems

Clean-Link supports rail transit HVAC applications with filter solutions designed around system compatibility, airflow stability, and practical maintenance.

Relevant filter options may include:

• Panel filters for compact HVAC prefiltration
• Pleated filters for improved media area in limited space
• Pocket filters for higher dust-holding capacity where space allows
• Compact filters for high-airflow HVAC systems
• Activated carbon filters for odor and gaseous contaminant control
• Customized filter sizes for rail carriage HVAC units

Clean-Link can provide filter recommendations based on project requirements such as airflow, filter dimensions, pressure drop limits, target efficiency, operating environment, and maintenance schedule.



Recommended Filter Configuration Example

A typical train carriage HVAC filtration setup may include:

The exact configuration should be confirmed according to the HVAC system design and available installation space.



Common Mistakes When Selecting Train Carriage HVAC Filters

Choosing Only by Efficiency Rating

A high-efficiency filter may not be suitable if the HVAC unit cannot handle the added resistance.

Ignoring Pressure Drop

Pressure drop directly affects airflow, fan load, and passenger comfort. It should be checked before changing filter grade.

Using Building HVAC Filters Without Adaptation

Train carriage systems are compact and mobile. Filters designed for commercial buildings may not always fit rail HVAC units without customization.

Replacing Filters Only by Calendar Date

Replacement should consider actual operating conditions, dust load, pressure drop, and route environment.

Overlooking Sealing and Bypass

Even a high-quality filter will not perform properly if air can bypass the filter frame.



FAQ: HVAC Filters for Train Carriages

What type of filters are used in train carriage HVAC systems?

Train carriage HVAC systems commonly use panel filters, pleated filters, compact filters, and sometimes activated carbon filters depending on the system design and air quality requirements. The selected filter must fit the available space and support stable airflow.

Why is low pressure drop important in train carriage HVAC?

Low pressure drop helps maintain airflow in compact HVAC systems. If resistance is too high, the fan may not deliver enough air to the cabin, which can affect passenger comfort and system performance.

Can train carriage HVAC filters be customized?

Yes. Train carriage HVAC systems often require customized filter sizes, frame designs, media types, and sealing options due to limited space and specific installation requirements.

How often should train carriage HVAC filters be replaced?

Replacement frequency depends on dust load, operating hours, route conditions, airflow requirements, and pressure drop. For better maintenance planning, filters should be inspected regularly and replaced when they reach the recommended final resistance.

Are activated carbon filters useful in train carriages?

Activated carbon filters may be useful where odor or gaseous contaminants are a concern. They are usually used as part of a combined filtration strategy rather than as the only filter stage.



Final Thoughts

HVAC filters for train carriages must deliver more than basic particle capture. They need to fit compact systems, maintain stable airflow, protect HVAC components, and support passenger comfort under changing operating conditions.

For rail transit operators and HVAC system suppliers, the right filter selection should consider filtration efficiency, pressure drop, dust-holding capacity, frame strength, sealing, and maintenance access.

Clean-Link provides air filtration solutions for rail transit applications, including customized HVAC filters for train carriages, station ventilation systems, and other compact high-airflow environments.

For project-specific requirements, contact Clean-Link to request a rail transit HVAC filter recommendation.
