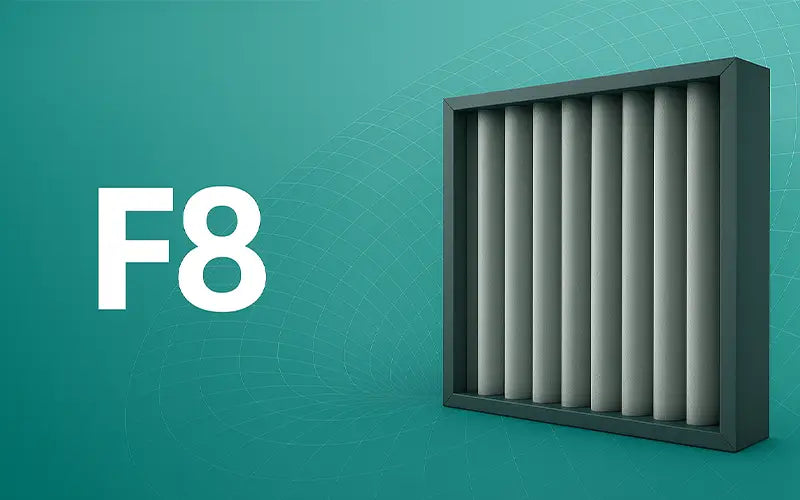

What Does “F8” Really Mean? An In-Depth Guide to ISO 16890 Fine Filters

Fine airborne particles—especially PM2.5—can slip deep into the lungs, aggravating asthma, raising cardiovascular risk, and coating sensitive equipment with conductive dust.

While coarse pre-filters (G4/MERV 8) stop larger debris and true HEPA blocks 99.97 % of sub-micron contaminants, many HVAC and industrial systems need a middle ground: high particulate capture without the steep pressure penalties of HEPA.

That middle ground is the F8 filter class (≈ ISO 16890 ePM₂.₅ 65-75 % | MERV 14). Positioned between pre-filters and final HEPA stages, an F8 filter intercepts more than two-thirds of PM2.5, dramatically improving indoor air quality and prolonging the life of downstream filters—yet its initial resistance typically remains below 160 Pa.

Understanding where F8 sits in the filtration hierarchy is the first step toward cost-effective compliance with today’s stricter IAQ standards.

F8 Air Filter in today’s standards

F8 classification under ISO 16890

ISO 16890 replaced the old single-point EN 779 method with a real-dust protocol, rating filters by average capture of ePM₁₀, ePM₂.₅ and ePM₁ fractions.

Most filters once labeled F8 now test in the ePM₂.₅ 65–75 % band, meaning they remove roughly two-thirds of respirable PM2.5 at standard face velocity. Full details of the ISO 16890 procedure are available from the International Organization for Standardization at iso.org.

Legacy EN 779 F8 → ISO mapping

Under EN 779:2012, an F8 filter had to achieve 90 % average efficiency when challenged with 0.4 µm test aerosol after dust loading.

When the same media is re-tested to ISO 16890, the wider particle-size spectrum and dust-conditioning step typically shift the label to ePM₂.₅ ≈ 70 %.

This conversion helps engineers update legacy specifications without over- or under-filtering critical zones.

Correspondence to MERV 14

For North-American projects, ASHRAE Standard 52.2 remains common. Lab correlation shows that an ISO ePM₂.₅ 70 % filter aligns closely with MERV 14, capturing ≥ 90 % of 0.3–1 µm particles.

The MERV table and efficiency ranges are detailed in ASHRAE’s filtration guidelines (ashrae.org).

Together, these references define F8 in today’s language: an intermediate fine filter that bridges coarse pre-filters and high-efficiency grades, delivering substantial PM2.5 control without the high pressure drop of true HEPA stages.

What Does F8 Really Mean An In-Depth Guide to ISO 16890 Fine Filters

F8 Air Filter Testing Evolution

From single-point testing under EN 779

For more than two decades, Europe’s EN 779 standard classified medium-to-fine filters by measuring efficiency at one particle size—0.4 µm di-ethyl-hexyl-sebacate (DEHS) aerosol—after a dust-loading cycle.

An F8 filter, for example, had to reach 90 % average efficiency at that single diameter Eurovent. While straightforward, the 0.4 µm focus ignored larger PM10 dust and the ultrafine fraction below 0.1 µm that drives many health concerns.

ISO 16890’s broad-spectrum approach

Published in 2016, ISO 16890 replaced EN 779 with a protocol that measures fractional efficiencies from 0.3 to 10 µm, both before and after media discharge. Filters are now grouped by the percentage of mass they remove from three real-world fractions: ePM₁₀, ePM₂.₅ and ePM₁.

A legacy F8 product typically scores ePM₂.₅ 65–75 %, reflecting its ability to capture the respirable particles most closely linked to cardiovascular and pulmonary risk.

The broader spectrum aligns with World Health Organization PM targets and allows specifiers to match filters to outdoor pollution profiles rather than a lab aerosol.

Why the new method is more realistic

• Multiple-size data reveal how a filter behaves across the full indoor-air hazard range, not just at 0.4 µm.
• Efficiency is averaged after IPA discharge, so electrostatic media cannot inflate results.
• Ratings correlate directly with PM₂.₅ mass—making HVAC energy models and IAQ compliance calculations simpler.

By shifting from a single “snapshot” to a real-dust panorama, ISO 16890 gives engineers a truer picture of filter performance and supports data-driven choices for energy, health and regulatory goals.

What Does F8 Really Mean An In-Depth Guide to ISO 16890 Fine Filters

F8 Air Filter Construction & Media Options

Filter formats for F8 performance

F8 filters are offered in three main geometries. Pocket filters (bag style) use six to ten sewn or welded pockets that expand under airflow, delivering large dust-holding capacity at moderate face velocity—ideal for variable-air-volume AHUs.

Rigid-cell cassettes fit legacy 595 × 595 mm tracks and provide consistent airflow under high static pressure, making them popular in data-centre or paint-booth supply units.

V-bank modules multiply media area within the same footprint by arranging four to eight mini-pleat packs in a W pattern; the extra surface cuts initial pressure drop by up to 30 percent compared with flat-panel designs.

Media choices: glass-fiber versus synthetics

Glass-fiber papers rely on purely mechanical capture, so efficiency remains stable even after electrostatic charge dissipates. They resist temperatures above 200 °C and are inherently non-combustible, but initial resistance is 10–15 percent higher than modern synthetics.

Synthetic melt-blown or nanofibre layers combine mechanical and electrostatic effects to achieve ePM2.5 70 percent at lower pressure drop, a benefit for systems with limited fan headroom.

However, efficiency may decline in oily or high-humidity airstreams, and additives are needed to meet stringent fire codes.

Meeting UL 900 and EN 13501 fire ratings

Most jurisdictions require fine filters to pass UL 900 Class 1 (United States) or EN 13501-1 B-s1,d0 (Europe).

Glass-fiber media usually comply without treatment, while synthetic media must incorporate flame retardants and low-smoke binders.

Always request a current certificate and verify that metal frames and sealants are silicone-free if the filter will operate in paint-spray or cleanroom environments.

By matching format, media, and fire rating to the application, facility managers can extract maximum life-cycle value from an F8 installation.

Ideal applications for F8 air filters

Commercial HVAC systems

Office towers, airports and shopping centres rely on F8 (ePM₂.₅ ≈ 70 %) filters to meet ever-stricter PM₂.₅ limits without the fan upgrades that HEPA would force.

The lower pressure drop keeps energy costs manageable while boosting indoor air quality well beyond what MERV 13 pre-filters can achieve.

Hospitals and healthcare sites

In general wards and diagnostic rooms, F8 serves as the final stage before supply diffusers or as a pre-filter upstream of terminal HEPA units in surgery suites.

This dual role extends HEPA life by trapping most fine dust and bacteria carriers, helping facilities comply with ASHRAE 241 and WHO air-cleanliness targets.

Data centres

Server halls need clean, cool air yet cannot afford high static pressure that inflates PUE. V-bank F8 cartridges deliver fine-dust protection at ≤ 160 Pa initial resistance, preventing contact corrosion on circuit boards and maintaining stable airflow through hot-aisle containment systems.

Paint-spray makeup air

Automotive and furniture booths use fire-rated F8 pockets to block overspray-sized particulates (0.3–3 µm) entering the cabin, reducing finish defects while keeping booth fans within design pressure.

Across these scenarios, F8 hits the “sweet spot”: high capture of respirable particles, moderate resistance, and certification options for fire safety—making it a cost-effective upgrade between coarse pre-filters and energy-intensive HEPA grades.

Drop & Energy Cost

Typical pressure drop range

A factory-fresh F8 filter presents an initial pressure drop of 110–160 Pa at 2.5 m s⁻¹ face velocity. Manufacturers usually set 350 Pa as the final change-out limit; beyond that point, fan energy rises steeply and media bypass risk increases.

Design choices that trim energy

• Pleat geometry – Deep-pleat and V-bank modules more than double media area versus flat bags, lowering air velocity inside each channel. This geometry alone can cut starting ΔP by 25 %.
• Synthetic nanofibre media – With fibre diameters below 300 nm, these layers capture PM₂.₅ mechanically while allowing higher porosity. Compared with legacy glass-fiber, nanofibres deliver equal ePM₂.₅ efficiency at roughly 15 % lower resistance.
• Correct face velocity – Operating at 1.8 m s⁻¹ instead of 2.5 m s⁻¹ drops ΔP by another 20–25 %, yet still meets most airflow targets in VAV systems.

ROI snapshot

A 20 000 m³ h AHU running 6 000 h yr⁻¹ swaps 140 Pa pocket filters for 110 Pa nanofibre V-banks:

Parameter Before After

Fan power @ 65 % efficiency 2.1 kW 1.7 kW

Annual energy 12 600 kWh 10 200 kWh

Cost at €0.18 kWh⁻¹ €2 268 €1 836

Parameter	Before	After
Fan power @ 65 % efficiency	2.1 kW	1.7 kW
Annual energy	12 600 kWh	10 200 kWh
Cost at €0.18 kWh⁻¹	€2 268	€1 836

The €432 annual saving offsets the higher filter cost in under 14 months, while extended life reduces maintenance visits. By combining smart geometry, low-resistance media, and static-pressure monitoring, facility managers can meet PM₂.₅ targets without inflating fan bills.

Maintenance & Change-Out Cycles

Dust-load categories and life expectancy

Filter life varies dramatically with ambient dust concentration. In a low-dust office (≤ 0.15 mg m⁻³), an F8 pocket or V-bank unit can run nine to twelve months before reaching 300 Pa.

Light industrial spaces (0.3 mg m⁻³) shorten that window to six-nine months, while paint shops or woodworking lines (≥ 0.6 mg m⁻³) may require change-out in as little as three months—even with prefilters installed.

Setting ΔP sensor triggers

Install differential-pressure probes across each filter bank and connect them to the BMS. Recommended alarm levels:
• 300 Pa – advisory notice for inspection and spare-parts planning
• 350 Pa – mandatory replacement point for most F8 designs
Logging ΔP against run-time allows engineers to graph loading curves and forecast the exact week a bank will hit its limit, preventing emergency shutdowns.

Condition-based versus calendar schedules

Calendar swaps—e.g., “change every six months”—ignore real dust load and often waste usable media life or risk overload during seasonal peaks.

Condition-based maintenance uses live ΔP data, running hours and ambient PM readings to trigger orders only when needed.

A hospital case study showed a 22 % reduction in annual filter spend and 9 % fan-energy savings after switching to sensor-driven scheduling.

Combining dust-class assessment, precise ΔP alarms and data-driven planning ensures F8 filters deliver consistent PM₂.₅ control while minimising inventory, labour and energy costs.

Common misconceptions about F8 filters

“F8 is the same as HEPA.”

HEPA (H13) captures 99.95 % at MPPS; F8 delivers ePM₂.₅ ~70 %. Great for PM₂.₅ control, not suitable for sterile or ISO Class 5 zones.

“F8 filters always drive up fan energy.”

Modern V-bank units start at 120 Pa—only 25 Pa above many MERV 13 panels. Nanofibre media plus proper face velocity keeps energy rise under 6 %.

“One F8 grade fits all commercial kitchens.”

Grease-laden exhaust requires metal mesh spark arrestors and hydrophobic prefilters. F8 supply air helps, but discharge air often needs F9 plus carbon or ESP stages.

“Electrostatic charge loss makes F8 useless.”

Most industrial F8 products combine mechanical and electrostatic capture; even when charge fades, efficiency stays above ePM₂.₅ 60 % while dust cake boosts capture.

“F8 cost is nearly HEPA level.”

Unit price averages 40 % of H13; longer life and lower ΔP often cut total cost per m³ of clean air by half.

Final Thoughts

F8 filters occupy the sweet spot between coarse pre-filters and energy-hungry HEPA, capturing roughly 70 % of PM₂.₅ while keeping pressure drop and fan power in check.

Their flexible formats—pocket, rigid-cell and V-bank—suit everything from commercial HVAC to hospital supply air and data-centre cooling. By pairing modern low-resistance media with ΔP sensors, facilities can extend service life, slash energy bills and avoid unplanned shutdowns.

Start by auditing your current filter grades, pressure readings and change-out intervals. Compare those figures with ISO 16890 ePM₂.₅ targets and local IAQ guidelines.

Then consult a trusted filtration supplier to model life-cycle cost and identify whether an F8 upgrade— or a mixed F8 + HEPA strategy—delivers the best performance-to-energy ratio for your plant.
