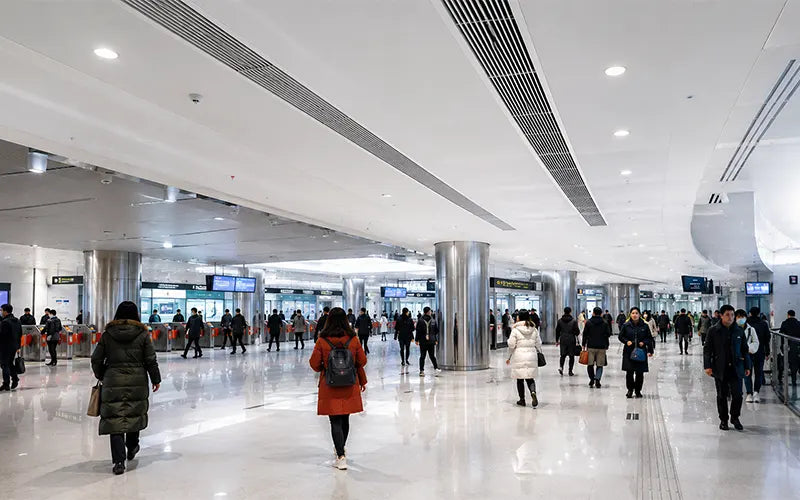

Air Filtration for Rail Transit Stations: Managing Dust, PM2.5, and Passenger Comfort

Air filtration for rail transit stations helps manage airborne dust, PM2.5, PM10, and ventilation-related particle load in high-traffic public transport environments. In metro stations, subway platforms, ticket halls, transfer corridors, and equipment rooms, a well-designed filtration strategy supports cleaner supply air, more stable HVAC performance, and better passenger comfort without creating excessive pressure drop.

Rail transit stations face a unique combination of outdoor pollution, passenger-generated particles, tunnel dust, brake and rail wear particles, and continuous air movement. Clean-Link provides application-driven HVAC air filters, prefilters, pocket filters, compact filters, and HEPA filters for commercial and public-building ventilation systems, including staged filtration solutions for rail transit facilities.

Why Air Filtration Matters in Rail Transit Stations

Rail transit stations are semi-enclosed public environments with frequent passenger movement, high ventilation demand, and changing air quality conditions. Airborne particles can enter from outdoor air intakes, tunnel ventilation, platform screen door gaps, maintenance activities, and crowded passenger zones.

PM stands for particulate matter, a mixture of solid particles and liquid droplets in the air; EPA explains that some particles are visible as dust, dirt, soot, or smoke, while smaller particles require advanced detection methods.

 Fine particles such as PM2.5 and inhalable particles such as PM10 are important air quality indicators for public environments, and WHO’s global air quality guidelines cover PM2.5 and PM10 alongside other common pollutants.

For rail transit operators, filtration is not only about air cleanliness. It also affects HVAC coil protection, fan energy performance, maintenance frequency, filter replacement planning, and passenger experience. When filters are poorly selected, high particle load can lead to rapid clogging, increased pressure drop, unstable airflow, and reduced system efficiency.

Common Air Quality Challenges in Rail Transit Stations

Rail stations experience multiple sources of particulate contamination. The filtration system should be selected based on actual site conditions, airflow design, occupancy level, and HVAC equipment capacity.

Key Areas That Benefit from Rail Transit Station Filtration

1. Outdoor Air Intake Systems

Outdoor air intakes bring fresh air into the station HVAC system, but they may also introduce PM2.5, PM10, road dust, pollen, and urban pollution. For rail stations located near roads, bus terminals, industrial zones, or dense city centers, intake air filtration is a critical first control point.

A staged system may use panel filters or prefilters as the first stage, followed by pocket filters or compact filters for finer particle control.

2. Platforms and Waiting Areas

Platforms and waiting areas often have high passenger density and variable airflow conditions. In underground metro stations, air may be affected by tunnel dust, mechanical wear particles, and recirculated air from connected spaces.

Filtration for these areas should balance fine particle capture with stable airflow. A filter with too much resistance may reduce air volume and affect comfort. A filter with insufficient efficiency may allow fine particles to pass through the system.

3. Ticket Halls and Transfer Corridors

Ticket halls and transfer corridors usually experience continuous pedestrian movement. Dust can be resuspended from floors, stairs, escalators, and public surfaces. In large interchange stations, airflow patterns may shift throughout the day as passenger traffic changes.

For these spaces, medium- to high-efficiency HVAC filters can help support more stable indoor air quality while protecting ventilation equipment.

4. Equipment Rooms and Ventilation Rooms

Mechanical rooms, electrical rooms, and ventilation rooms need dust control to reduce contamination around fans, motors, control panels, and HVAC components. While passenger comfort is not the main purpose in these rooms, filtration supports equipment protection and maintenance stability.

5. Maintenance and Service Areas

Rail station maintenance areas may generate additional dust during cleaning, repair, replacement, or inspection activities. Depending on the activity, local exhaust filtration or separate air handling may be needed to prevent contamination from spreading into public zones.

Recommended Filtration Strategy for Rail Transit Stations

A practical rail transit filtration strategy should be based on staged filtration. Instead of relying on one high-efficiency filter to handle all particle sizes, staged filtration uses multiple filter levels to capture coarse dust first and finer particles later.

Stage 1: Prefiltration for Coarse Dust

The first stage should capture larger particles and protect downstream filters. Prefilters and panel filters are commonly used at outdoor air intakes and air handling unit entrances.

Benefits include:

• Reducing large dust load on higher-efficiency filters
• Supporting longer service life of downstream filters
• Helping protect coils, fans, and ductwork
• Lowering maintenance burden in dusty station environments

Stage 2: Medium- to High-Efficiency Filtration

The second stage targets finer airborne particles, including PM2.5-related particle fractions. Depending on airflow, HVAC design, and local air quality, operators may choose pocket filters, compact filters, or V-bank filters.

ISO 16890 provides a classification context for general ventilation filters based on particulate matter efficiency, including PM-related particle size fractions. This makes it useful when comparing filters for applications where PM1, PM2.5, and PM10 performance matters.

Stage 3: HEPA Filtration for Specific High-Cleanliness Zones

Most general station areas do not require HEPA filtration throughout the entire HVAC system. However, HEPA filters may be relevant for specific control rooms, sensitive equipment areas, healthcare-related station spaces, or special public safety applications.

HEPA filters should be selected carefully because they typically create higher resistance than general ventilation filters. System compatibility, fan capacity, sealing method, and maintenance access should be reviewed before installation.

Optional: Activated Carbon Filtration for Odor and Gas-Phase Concerns

Where stations are affected by traffic exhaust, nearby industrial emissions, underground odor, or specific gaseous contaminants, activated carbon filters may be considered as part of the filtration system. These filters are used for gas-phase adsorption, not as a replacement for particulate filtration.

Technical Factors for Filter Selection

Pressure Drop

Pressure drop is one of the most important design factors in rail station HVAC filtration. A filter with high efficiency but excessive resistance can reduce airflow, increase fan load, and affect passenger comfort.

Filter selection should consider both initial pressure drop and final recommended pressure drop. A lower initial resistance is useful, but dust holding capacity and service life are also important.

Airflow and Air Volume

Rail transit stations require stable air volume across large public spaces. Filters must match the air handling unit design airflow. Undersized or overly restrictive filters can reduce ventilation effectiveness and cause uneven air distribution.

ASHRAE Standard 62.1 is widely used as a ventilation and indoor air quality reference for nonresidential buildings, specifying minimum ventilation rates and other measures for acceptable IAQ.

Dust Holding Capacity

Dust holding capacity is especially important in rail stations because filters may face continuous particle loading from passengers, outdoor air, and tunnel systems. Filters with suitable dust holding capacity can help reduce replacement frequency and stabilize system performance.

Filtration Efficiency

Higher efficiency can improve particle capture, but it must be matched with HVAC capacity. For PM2.5-focused filtration, operators should review filter efficiency classification, expected particle load, airflow rate, and pressure drop behavior.

Maintenance Access

Rail stations often operate long hours, and maintenance windows may be limited. Filters should be easy to inspect and replace. Standard dimensions, custom sizes, stable supply, and clear replacement planning can help reduce operational disruption.

Suitable Clean-Link Filter Solutions for Rail Transit Stations

Clean-Link supports rail transit station air filtration with product options designed for public-building HVAC systems, commercial air handling units, and application-specific ventilation projects.

Explore Clean-Link air filtration for rail transit for application-specific recommendations.

How Rail Station Filtration Supports Passenger Comfort

Passenger comfort depends on more than temperature. Air movement, perceived freshness, dust levels, odor, humidity, and ventilation stability all influence the experience inside a station.

Air filtration can support passenger comfort by:

• Helping reduce visible dust near supply air outlets
• Supporting more stable airflow through protected HVAC components
• Reducing the particle load entering occupied areas
• Helping maintain cleaner ducts, coils, and diffusers
• Supporting better indoor air quality management in high-traffic zones
• Reducing maintenance-related disruptions caused by dirty HVAC systems

Filtration should be integrated with ventilation design, cleaning schedules, tunnel ventilation management, and real-time air quality monitoring where available.

Practical Filter Selection Example

For a busy underground metro station, a practical filtration system may include:

1. Outdoor air intake prefilters to capture coarse dust and protect the system
2. Pocket filters or compact filters in the main air handling unit for fine particle reduction
3. Activated carbon filters where odor or traffic-related gas-phase concerns exist
4. HEPA filters only for specific sensitive rooms where high-efficiency filtration is justified
5. Regular inspection and replacement planning based on pressure drop and operating conditions

This approach helps balance particle capture, airflow, pressure drop, maintenance cost, and passenger comfort.

Why Choose Clean-Link for Rail Transit Station Air Filtration

Clean-Link is an air filter manufacturer and air filtration solution provider supporting industrial, commercial, public-building, HVAC, cleanroom, and application-specific filtration needs.

For rail transit station projects, Clean-Link can support:

• Application-based filter selection
• HVAC system compatibility review
• Staged filtration recommendations
• Custom dimensions for existing air handling units
• Bulk order and project supply support
• Filter options for dust, PM2.5, PM10, and equipment protection
• Technical consideration of pressure drop, airflow, and service life

Clean-Link helps facility teams, engineering contractors, procurement departments, and maintenance teams select filtration products that match real operating conditions rather than relying on one-size-fits-all filter choices.

FAQ

1. What is air filtration for rail transit stations?

Air filtration for rail transit stations refers to the use of HVAC air filters, prefilters, pocket filters, compact filters, HEPA filters, and related filtration products to help manage airborne dust, PM2.5, PM10, and particle load in metro stations, subway stations, platforms, ticket halls, and ventilation systems.

2. Why is PM2.5 filtration important in rail stations?

PM2.5 is a fine particle category associated with air quality and health-related concerns. Rail stations can be affected by outdoor pollution, tunnel air, mechanical wear particles, and passenger movement, so suitable filtration helps reduce fine particle transfer through the HVAC system.

3. Which filters are commonly used in rail transit station HVAC systems?

Common options include prefilters, panel filters, pocket filters, compact filters, V-bank filters, activated carbon filters, and HEPA filters for selected sensitive areas. The final selection depends on airflow, pressure drop, particle load, maintenance access, and required filtration efficiency.

4. Do all rail stations need HEPA filters?

No. HEPA filters are not always required for general public areas. They may be useful for specific sensitive rooms or high-cleanliness zones, but they should be applied only after checking fan capacity, pressure drop, sealing requirements, and system compatibility.

5. How does pressure drop affect rail station air filtration?

Pressure drop affects how easily air passes through a filter. If pressure drop becomes too high, airflow may decrease and fan energy demand may increase. Rail station filters should balance efficiency, dust holding capacity, and resistance.

6. How often should rail transit station filters be replaced?

Replacement frequency depends on outdoor air quality, passenger volume, tunnel dust, filter type, operating hours, and final pressure drop limits. Many facilities use pressure drop monitoring and scheduled inspections to decide when filters should be replaced.

7. What standards are relevant for rail station HVAC filters?

ISO 16890 is relevant for general ventilation air filter classification, while ASHRAE 62.1 provides ventilation and indoor air quality context for nonresidential buildings. HEPA applications may refer to EN 1822 or ISO 29463 classification context, depending on project requirements.

8. How can Clean-Link help with rail transit station filter selection?

Clean-Link can provide filter selection support based on station layout, HVAC airflow, particle load, pressure drop requirements, filter size, replacement planning, and application goals such as dust reduction, PM2.5 control, equipment protection, and passenger comfort.
