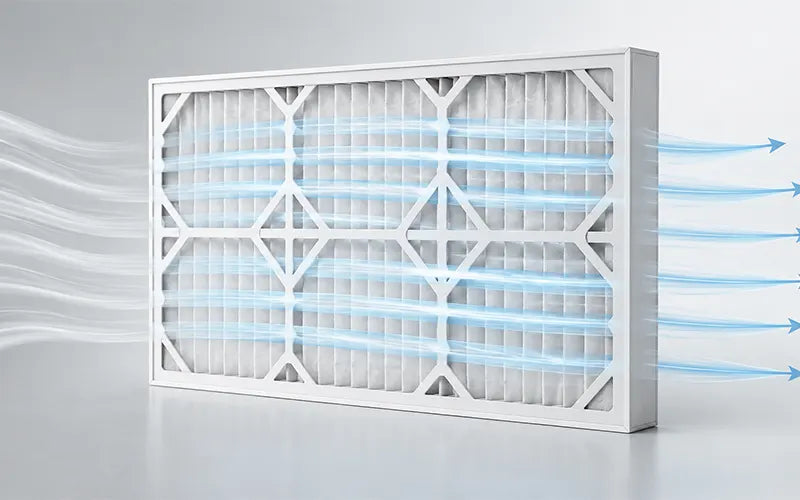

Air Filter Face Velocity Explained: How It Affects Pressure Drop and Filter Life

When comparing HVAC air filters, buyers often focus on efficiency rating, pressure drop, and filter size. However, one important factor is often overlooked: air filter face velocity.

Face velocity affects how air passes through the filter, how much resistance the filter creates, how particles load into the media, and how long the filter may last in real operation.

Two filters may have the same size and the same efficiency class, but they can perform differently if their media area, depth, pleat design, or airflow conditions are different.

Understanding HVAC filter face velocity helps facility teams, HVAC contractors, and procurement buyers compare filters more accurately and avoid selection problems.

What Is Air Filter Face Velocity?

Air filter face velocity is the speed of air passing through the front face area of a filter.

It is usually expressed in:

• feet per minute, or FPM
• meters per second, or m/s

Face velocity is not the same as total airflow.

Airflow tells you how much air passes through the system. Face velocity tells you how fast that air is moving across the filter face.

For example, two filters may both handle the same airflow, but if one filter has a smaller face area, the air must move faster through that filter opening. This creates a higher face velocity.

Higher face velocity can affect:

• pressure drop
• dust loading behavior
• particle capture performance
• filter service life
• airflow stability
• replacement interval

That is why filter velocity should be reviewed together with filter size, airflow, efficiency, and media design.

Face Velocity Calculation

The basic face velocity calculation is:

Face Velocity = Airflow ÷ Filter Face Area

In imperial units:

Face Velocity, FPM = Airflow, CFM ÷ Filter Face Area, ft²

In metric units:

Face Velocity, m/s = Airflow, m³/s ÷ Filter Face Area, m²

Example:

If a filter handles 2,000 CFM and the filter face area is 4 ft², then:

2,000 CFM ÷ 4 ft² = 500 FPM

This means the air velocity through the filter face is 500 feet per minute.

For B2B buyers, the exact number should be compared with the filter manufacturer’s rated airflow and test data. A filter tested at one airflow condition may not perform the same way at a much higher or lower operating airflow.

Why Face Velocity Matters in HVAC Filter Selection

Face velocity matters because filters are tested and applied under airflow conditions.

A filter is not only a frame with media inside. Its performance depends on how much air is forced through the available face area and media structure.

If face velocity is too high, the filter may experience:

• higher initial pressure drop
• faster increase in resistance
• shorter service life
• reduced dust-holding performance
• less stable airflow
• more frequent replacement
• higher operating cost

If face velocity is lower, the filter may have more time and media area to handle airflow and dust loading. However, lower velocity is not always possible because system space, filter bank size, and equipment design may limit the available filter area.

The goal is not simply to reduce velocity as much as possible. The goal is to match filter velocity with the system airflow, filter design, and performance requirement.

Impact on Pressure Drop

Face velocity has a direct relationship with pressure drop.

When air moves faster through a filter, resistance usually increases. This is because the air must pass through the filter media, fiber structure, pleats, pockets, or mini-pleat packs at a higher speed.

Higher pressure drop can affect:

• fan workload
• system airflow
• energy use
• filter loading rate
• maintenance planning
• comfort or process stability

This is especially important when upgrading to a higher-efficiency filter. A higher efficiency class may be suitable, but only if the HVAC system can handle the added resistance.

The EPA explains that higher MERV ratings generally indicate stronger particle capture, but filter selection should also consider what the system fan and filter slot can accommodate.

For commercial and industrial systems, buyers should compare both efficiency and pressure drop at rated airflow, not efficiency alone.

Related Reading: air filter pressure drop

Impact on Filtration Efficiency

Face velocity can also affect filtration efficiency.

When air moves through the filter too quickly, particles have less residence time within the filter media. Depending on media type and particle size, this may influence how particles interact with fibers inside the filter.

For general ventilation filters, efficiency classification is commonly evaluated using ISO 16890, which classifies particulate air filters based on PM-related efficiency groups such as ePM1, ePM2.5, ePM10, and coarse. ISO 16890 applies to particulate air filter elements for general ventilation within the defined scope of the standard.

However, a filter’s real operating performance depends not only on the classification label. It also depends on:

• actual airflow
• filter face area
• media area
• filter depth
• installation condition
• leakage or bypass
• loading condition
• system maintenance

This is why filter test data should be reviewed with airflow conditions included.

Related Reading: air filter test data

Impact on Dust Loading and Service Life

Face velocity affects how dust loads into a filter.

At higher velocity, particles may reach the media faster and loading may become more concentrated. This can cause pressure drop to rise more quickly, especially if the filter has limited media area or shallow depth.

At lower velocity, dust loading may be distributed more gradually across the media, depending on filter design. This may help extend service life and support more stable pressure drop over time.

Dust loading and service life are influenced by:

• dust concentration in the air
• operating hours
• airflow rate
• face velocity
• media area
• filter depth
• pleat spacing
• pocket depth
• media structure
• prefiltration condition

A filter with a larger media area, such as a pocket filter or compact filter, may help reduce velocity through the media compared with a shallow filter of the same face size. This can support better dust-holding capacity and longer service life in suitable systems.

However, the correct filter must still match the available installation depth and fan capacity.

Related Reading: air filter lifecycle cost

Why Two Same-Size Filters May Perform Differently

Many buyers assume that two filters with the same external dimensions and efficiency rating will perform the same way.

This is not always true.

Two same-size filters may differ in:

• media area
• pleat depth
• pleat spacing
• number of pockets
• pocket depth
• mini-pleat pack design
• frame construction
• sealing method
• media type
• dust-holding capacity
• pressure drop at rated airflow

For example, a 24 × 24 × 2 inch panel filter and a 24 × 24 × 12 inch pocket filter have the same face dimensions, but the pocket filter usually has much more media area because the filter media extends into deep pockets.

Similarly, two compact filters may have the same frame size but different media pack depths, pleat counts, and airflow resistance.

This is why buyers should not compare only:

• size
• efficiency class
• price

They should also compare:

• rated airflow
• initial pressure drop
• final pressure drop
• media area
• dust-holding capacity
• test conditions
• expected replacement interval

Related Reading: air filter specifications guide

Face Velocity and Filter Type

Different filter types respond differently to face velocity.

Panel Filters

Panel filters are commonly used for first-stage filtration and general HVAC protection.

They are practical, easy to replace, and suitable for many commercial systems. However, shallow panel filters may have limited media area compared with deeper filter formats.

When airflow is high, a panel filter may load faster if the filter area is not sufficient.

Pocket Filters

Pocket filters, also called bag filters, provide larger media area through extended filter pockets.

They are often used when buyers need higher dust-holding capacity, better service life, or improved airflow performance in commercial and industrial HVAC systems.

Compact Filters

Compact filters and V-bank filters provide large media area in a rigid structure.

They are often used in high-airflow HVAC systems, data centers, hospitals, laboratories, and industrial air handling units where efficiency, pressure drop, and space limitations must be balanced.

HEPA Filters

HEPA filters are used for high-efficiency final filtration in cleanrooms, laboratories, pharmaceutical facilities, electronics manufacturing, and other critical environments.

For HEPA systems, airflow, face velocity, sealing, prefiltration, and pressure drop must be reviewed carefully. A HEPA filter should not be selected only because of its efficiency class.

Face Velocity and Total Operating Cost

Face velocity can influence operating cost because it affects pressure drop, loading rate, service life, and maintenance frequency.

A filter with a low purchase price may not provide the lowest total cost if it operates at high face velocity and loads quickly.

Higher face velocity may lead to:

• faster pressure drop increase
• shorter replacement interval
• more maintenance labor
• higher fan energy demand
• more frequent downtime
• greater downstream equipment cleaning

A filter with larger media area or better dust-holding design may cost more initially but may support longer service life and more stable operation.

This is why total operating cost should include:

• filter price
• replacement frequency
• labor cost
• energy impact
• disposal cost
• downtime
• downstream equipment protection

Related Reading: air filter lifecycle cost

Information Buyers Should Provide

To help Clean-Link recommend a suitable filter, buyers should provide more than only the filter size.

Useful information includes:



If airflow is not available, buyers can still provide filter size, system photos, equipment model, current filter label, and application details. Clean-Link can help review the available information and suggest what should be confirmed next.

Practical Example: Same Airflow, Different Filter Area

Consider two HVAC filter banks handling the same total airflow.

If one system has fewer filters or a smaller filter face area, the air velocity through each filter will be higher.

Higher face velocity may increase pressure drop and shorten filter life.

If another system has more filter area or uses deeper filters with larger media area, airflow may be distributed more effectively. This can help reduce resistance and improve replacement planning.

This is why increasing filter area, using deeper filters, or changing filter type can sometimes improve system performance—if the equipment has enough space and the filter is properly selected.

Clean-Link Support for Application-Based Filter Selection

Clean-Link supports HVAC contractors, facility teams, engineering companies, OEM buyers, and industrial customers with application-based air filter selection.

Our available solutions include:

• panel filters
• prefilters
• pocket filters
• compact filters
• V-bank filters
• HEPA filters
• activated carbon filters
• custom air filters
• different media options
• custom dimensions
• project-based quotation
• technical selection support

For face velocity review, buyers can send filter dimensions, total airflow, airflow per filter, efficiency requirement, current filter type, installation depth, and operating conditions.






Final Thoughts

Air filter face velocity is an important factor in HVAC filter selection.

It affects pressure drop, airflow stability, filtration performance, dust loading, service life, and total operating cost.

The right filter should not be selected by size, efficiency, or price alone. It should be selected based on application, airflow, face area, media design, system capability, and replacement goals.

For commercial HVAC, industrial ventilation, cleanrooms, data centers, and manufacturing facilities, understanding air velocity through filter systems helps buyers make more practical filtration decisions.

Send Clean-Link your filter dimensions, airflow, efficiency requirement, current filter type, and quantity for application-based filter recommendations.

FAQ

What is air filter face velocity?

Air filter face velocity is the speed of air passing through the front face area of a filter. It is calculated by dividing airflow by filter face area.

How do you calculate filter face velocity?

Use this formula: Face Velocity = Airflow ÷ Filter Face Area. In imperial units, FPM = CFM ÷ ft².

Why does face velocity matter?

Face velocity affects pressure drop, dust loading, filtration performance, airflow stability, and filter service life.

Does higher face velocity increase pressure drop?

In general, higher air velocity through a filter increases airflow resistance. The actual pressure drop depends on filter type, media design, depth, airflow, and loading condition.

Can two same-size filters have different pressure drop?

Yes. Two filters with the same external dimensions may have different media area, pleat design, filter depth, pocket structure, and media type, which can lead to different pressure drop and service life.

Is lower face velocity always better?

Not always. Lower face velocity may help reduce resistance and improve loading behavior, but filter selection must still consider efficiency, installation space, system design, fan capacity, and cost.

What information is needed to review HVAC filter face velocity?

Useful information includes filter size, airflow per filter, total system airflow, number of filters, filter type, efficiency requirement, pressure drop data, installation depth, and operating conditions.
