Synthetic Fiber Pocket Bag Filter

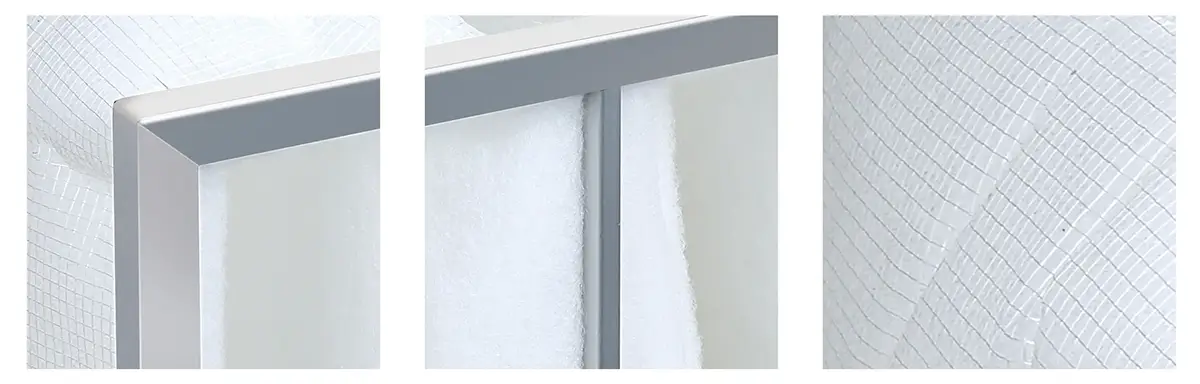

This pocket filter is crafted with special synthetic fibers that are engineered to resist fiber fracture, providing durability and enhanced filtration performance. The fibers are processed to form a graduated-density structure, optimizing the filter’s ability to capture various particle sizes. The pockets are securely sealed to the frame, ensuring no air bypass or leaks, even under high airflow conditions. This design allows for efficient airflow management, directing it for the best possible filtration effect.

The filter excels in environments with high humidity levels, offering exceptional moisture resistance. It is ideal for use in areas where moisture is present, such as industrial settings or damp environments, where traditional filters may struggle. This filter is a reliable choice for maintaining high performance and consistent air quality even in challenging conditions.

Get A Free Quote

Features

  • Filter Grade: G3, G4, M5
  • MERV Ratings: MERV5, MERV6, MERV7, MERV8, MERV9, MERV10
  • Filtration Media: Synthetic fibers
  • Frame Options: Galvanized steel or aluminum
  • Durability: Pockets made from organic synthetic fibers resistant to fracture
  • Design: Graduated-density structure to direct airflow for optimal filtration
  • Sealed Pockets: Proper sealing to prevent air bypass or leaks
  • Moisture Resistance: Capable of withstanding 100% humidity environments

Applications

  • Industrial Environments: Ideal for manufacturing facilities or warehouses where moisture and contaminants are present, providing reliable filtration in challenging conditions.
  • HVAC Systems: Used in air conditioning and ventilation systems to maintain consistent air quality in commercial buildings, even in areas with high humidity.
  • Food Processing: Suitable for food production environments where moisture levels are elevated, helping maintain hygiene and cleanliness.
  • Laboratories & Cleanrooms: Protects sensitive environments in laboratories and research facilities by efficiently capturing airborne particles and maintaining sterile conditions.
  • Automotive: Perfect for automotive workshops and paint booths, where humidity levels are high, ensuring optimal air quality and filter performance.
  • Healthcare: Used in hospitals, clinics, and other healthcare settings, particularly in areas like patient rooms and operating theaters, where moisture and contaminants need to be controlled.

Specifications

Filtration GradeDimensions (mm) W*H* DNumber of BagsFiltration Area (㎡)Rated Air Flow (m³/h)Initial Resistance (Pa)Final Resistance (Pa)
G3287*595*55031.92170030200
G3495*595*55053.28260030200
G3595*595*60064.05340030200
G4287*595*55031.92170045250
G4495*595*55053.28260045250
G4595*595*60064.05340045250

Custom Solutions

Please send us your requirements for custom sizes and thicknesses.
