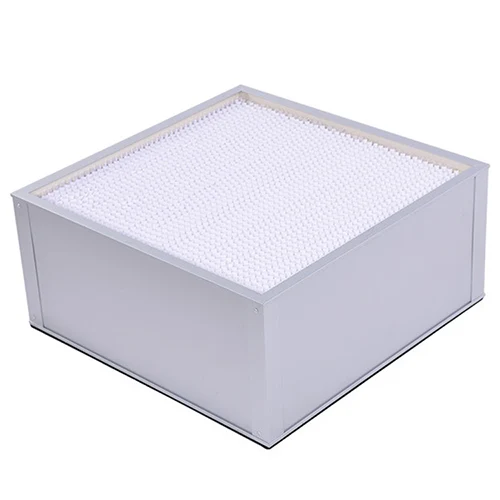

Pleated HEPA Filter

The Pleated HEPA Filter is an advanced air filtration solution, engineered to capture 99.97% of particles as small as 0.3 microns in diameter, including dust, pollen, bacteria, and other airborne contaminants. Its innovative pleated design significantly increases the filter’s surface area, enabling it to capture a larger volume of particles while maintaining optimal airflow.

This unique structure not only ensures high-efficiency filtration but also extends the filter’s lifespan by reducing the strain on the filter media.

The pleated design provides an increased surface area compared to standard filters, allowing the Pleated HEPA Filter to effectively trap more particles while minimizing pressure drop. This allows for better airflow and ensures the system operates efficiently for longer periods without compromising air quality.

Ideal for use in environments that require high air purity, such as hospitals, cleanrooms, and laboratories, the Pleated HEPA Filter delivers outstanding performance and reliability in air filtration.

Get A Free Quote

Features

  • Grade: M6, F7, F8, F9, H10, H13, H14
  • MERV Ratings: MERV11, MERV12, MERV13, MERV14, MERV15, MERV16-19
  • Filter Media: High-density paper made with ultra-fine glass fiber
  • Frame Options: Galvanized steel, aluminum, or ABS plastic
  • Pleat Design: Waviness aluminum foil pleats or paper pleats for optimal use of filtration material
  • Aluminum Foil Specifications: Thickness of 0.03 mm, pleat height of 4 mm, maximizing filtration area and quality
  • High-Density Paper Media: Made from ultra-fine fiberglass, pleated to expand filtration area and slow down filtration speed
  • Laser Tested: Ensures high performance and reliability
  • Temperature Resistance: Up to 80°C
  • Low Resistance: Ensures minimal energy consumption
  • Long Service Life: Designed for extended use with low maintenance requirements

Applications

  • Cleanrooms: Essential for maintaining high air purity in pharmaceutical, biotechnology, and electronics manufacturing.
  • Healthcare Facilities: Ideal for hospitals and clinics, ensuring sterile conditions and preventing airborne contaminants.
  • Laboratories: Used in research and development labs to maintain controlled environments free from particles.
  • Industrial Settings: Suitable for factories and manufacturing plants, offering superior filtration in air handling units and HVAC systems.
  • Food Processing: Helps maintain a clean air environment in food production, preventing contamination.
  • Commercial Buildings: Ensures clean, breathable air in offices, schools, and public spaces.

Specifications

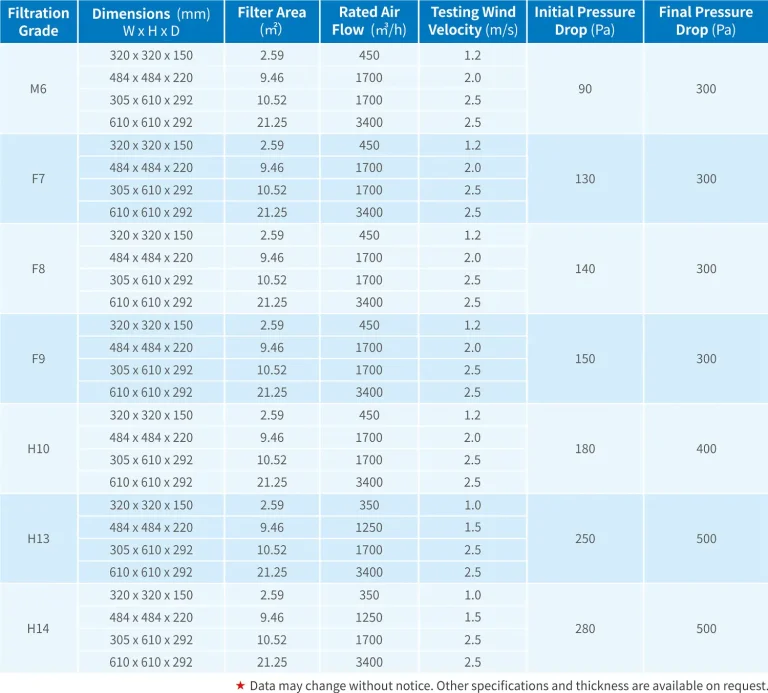

Pleated HEPA Filter data sheet

Technical Data

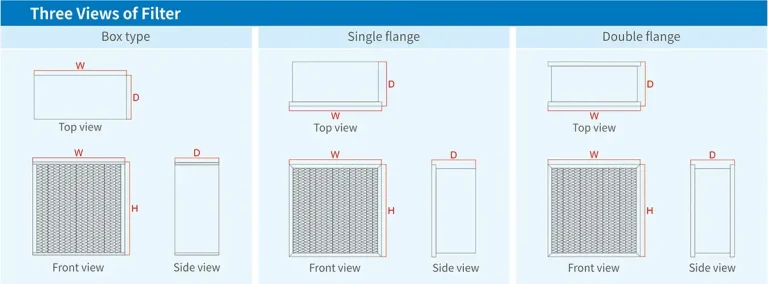

Pleated HEPA Filter data sheet

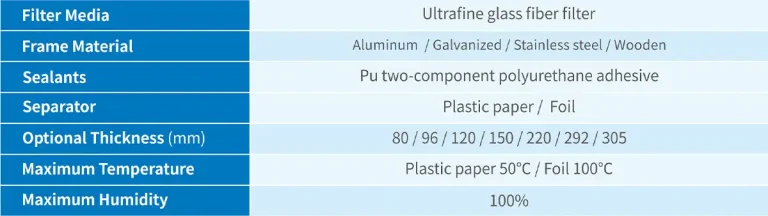

Pleated HEPA Filter data sheet

Document Download

Custom Solutions

Please send us your requirements for custom sizes and thicknesses.
