Paint Pocket Filter Media

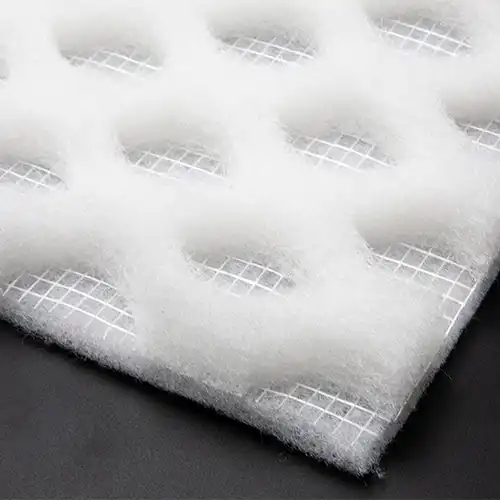

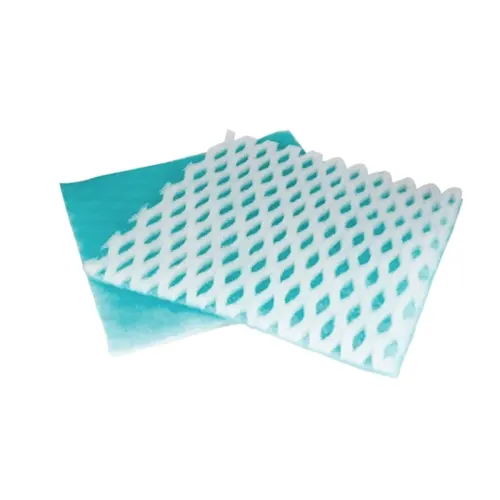

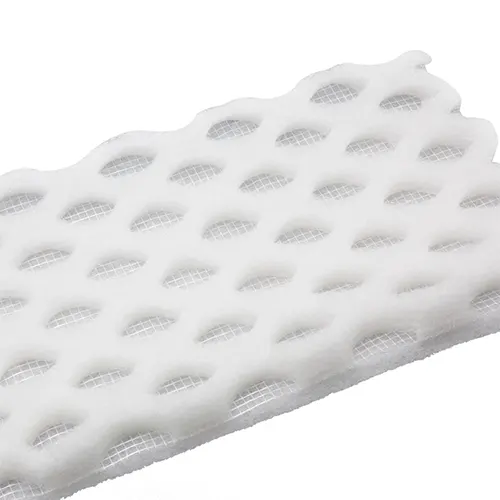

Paint Pocket Filters are made from 100% synthetic fibers and are specially designed to capture paint spray and powder coating overspray in industrial and automotive applications. Featuring a unique three-dimensional diamond-shaped structure, these filters provide more than double the surface area compared to flat-designed filters, increasing their ability to capture and hold overspray.

This expanded surface area prevents premature saturation, extending the service life of the filter and improving arrestance performance before airflow is restricted. The filter’s high-density fiber layers at the bottom efficiently trap even the smallest overspray particles, providing an impressive 99.5% arrestance efficiency.

Get A Free Quote

Features

  • Grades: G2, G3, G4; MERV5, MERV6, MERV7, MERV8
  • Materials: Made from 100% synthetic fibers
  • Efficiency: Exceptional overspray arrestor with high capture capacity
  • Increased Surface Area: The 3D structure more than doubles the filter area
  • Multi-Layered Design: High-density layers effectively capture even the smallest particles
  • Reduced Maintenance: Decreases filter replacement frequency by up to 80%

Applications

  • Automotive Industry: Used to capture paint and coating overspray in automotive manufacturing and repair shops, protecting secondary filters and improving air quality.
  • Industrial Manufacturing: Ideal for paint booths and coating operations in factories, preventing contamination and improving filtration efficiency.
  • Powder Coating Applications: Effectively captures powder coating overspray in industrial environments, reducing system wear and filter replacement frequency.
  • Commercial and Industrial Facilities: Used in various applications where overspray or fine particulates need to be captured to protect equipment and improve air quality.

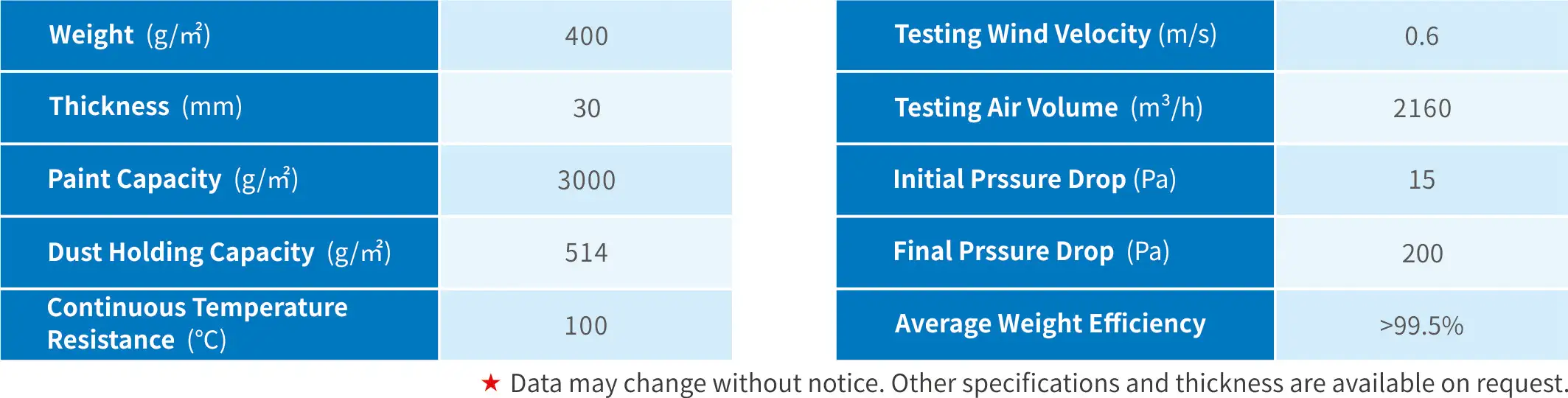

Specifications

Paint Pocket Filter Media data sheet

Custom Solutions

Please send us your requirements for custom sizes and thicknesses.
