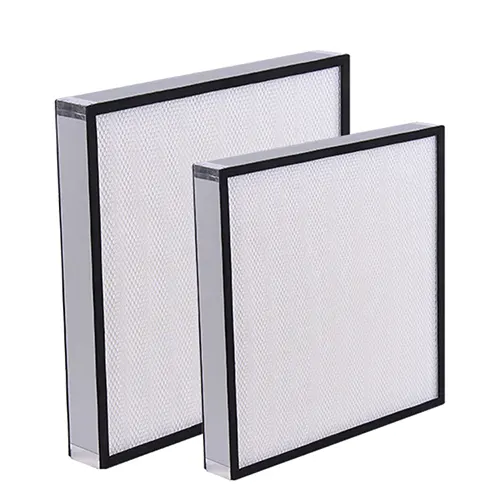

Mini-Pleat HEPA Filter

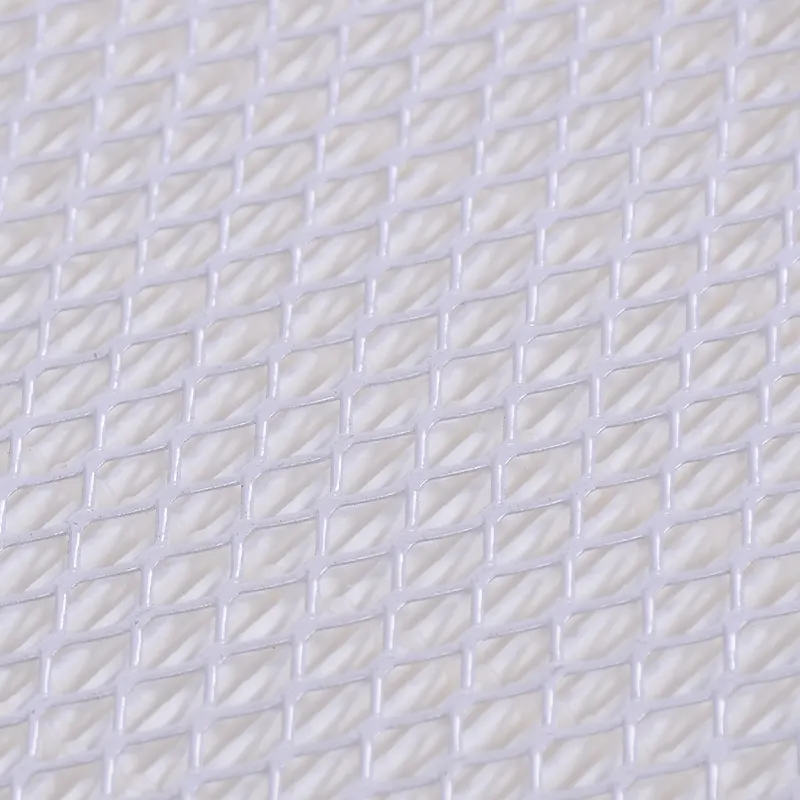

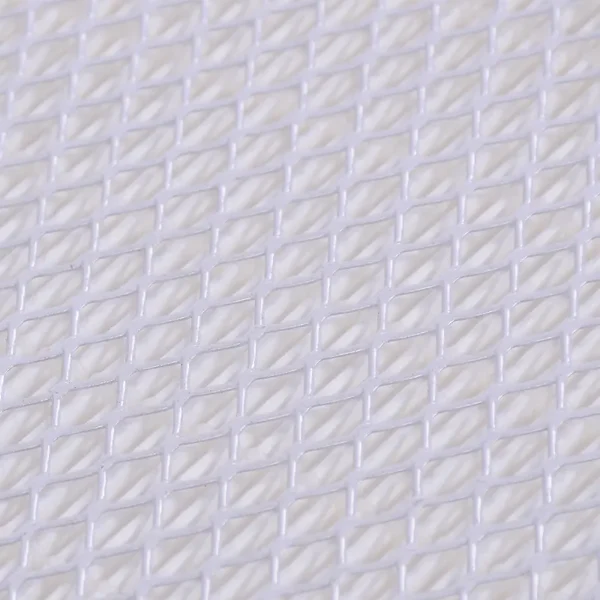

A mini-pleated air filter is designed with tightly packed pleats, significantly increasing its surface area and filtration efficiency. Clean-Link’s mini-pleat filters are constructed using high-efficiency PP paper or fiberglass filter media, both of which are waterproof and flame-retardant. This design not only makes the filter compact but also enhances its dust-holding capacity, ensuring superior performance in high-demand environments.

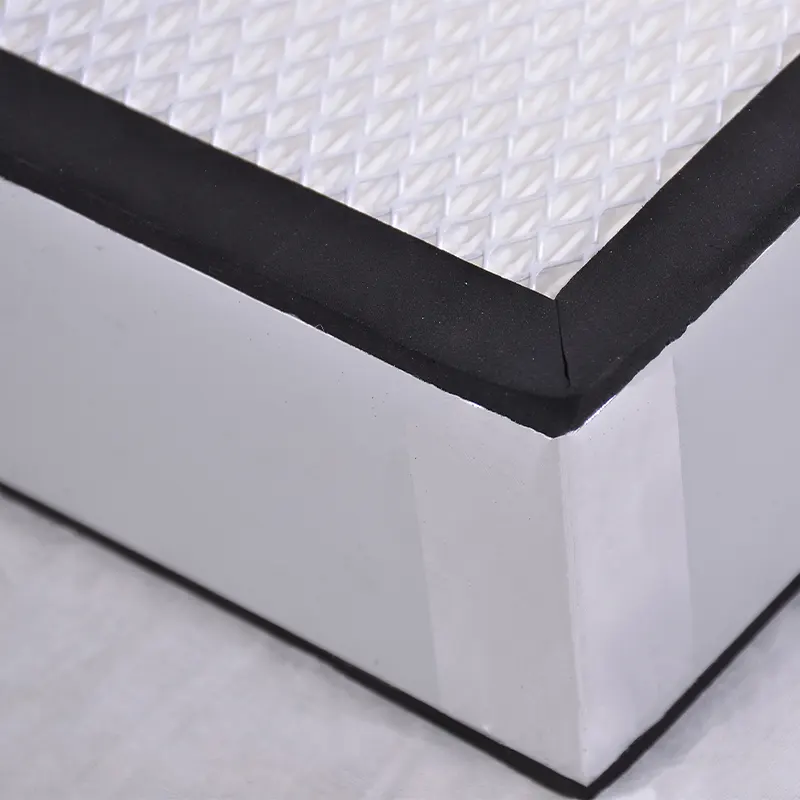

To ensure the integrity of the filter, an adhesive is applied to eliminate air bypass and form a rigid structure, preventing any gaps between the media and the frame. Each filter is laser-tested to guarantee heat resistance up to 80°C, ensuring reliable performance under varying conditions. The optimized aerodynamics structure of the filter also ensures a low pressure drop, promoting strong airflow and better ventilation, even in demanding HVAC systems.

As a trusted supplier of mini-pleat HEPA filters, Clean-Link has heavily invested in improving filter performance. These filters offer multiple times the surface area of traditional filters, which results in better filtration, higher performance, and a longer service life—allowing for less frequent filter replacements.

Get A Free Quote

Features

  • Grade: H13, H14, U15, U16; UH17, UH18, UH19, UH20
  • MERV: 17, 18, 19, 20
  • Efficiency: 99.9995% particle capture for particles as small as 0.3 microns
  • Material: Ultrafine glass fibers or HE PP paper
  • Heat-Resistant: Up to 80°C
  • Frame Options: Aluminum, stainless steel, and galvanized steel
  • Customizable Sizes and Specifications for specific requirements.

Applications

  • Hospitals and Healthcare: Ensures clean air in operating rooms, patient rooms, and ICUs, preventing airborne contamination.
  • Industrial Environments: Ideal for use in cleanrooms, manufacturing plants, and laboratories requiring stringent air quality control.
  • Electronics and Semiconductor Manufacturing: Captures fine particles that could damage sensitive components or disrupt production processes.
  • Food Processing: Maintains air cleanliness in food production areas by capturing contaminants that could affect product quality.
  • Commercial and Public Buildings: Improves indoor air quality in offices, malls, and public spaces, creating a healthier environment for occupants.
  • Pharmaceutical Manufacturing: Provides high-efficiency filtration to maintain contamination-free environments for drug production and packaging.

Specifications

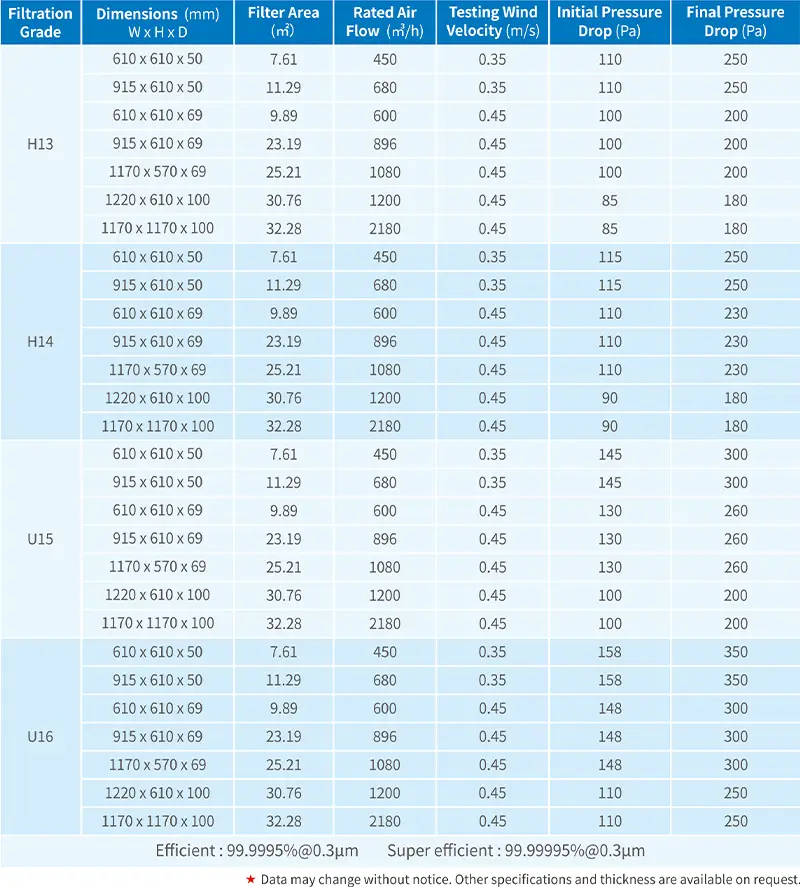

Mini-Pleat HEPA Filter data sheet 1

Technical Data

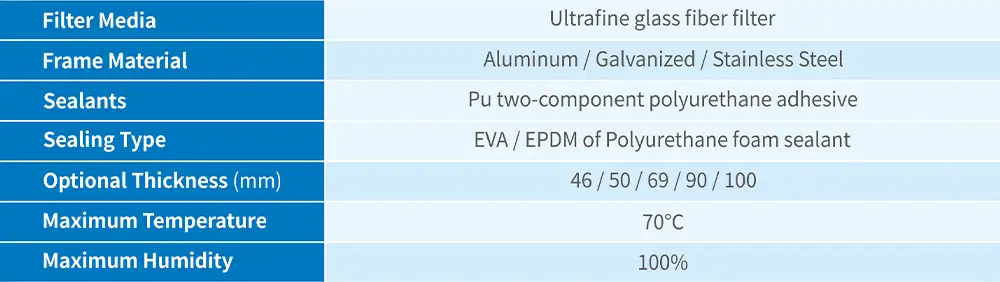

Mini-Pleated HEPA Filter data sheet

Document Download

Custom Solutions

Please send us your requirements for custom sizes and thicknesses.
