High temperature High Dfficiency Pleated Filter

High-Temperature High-Efficiency filters are the ultimate solution for air filtration in extreme conditions. These specialized filters are engineered to perform flawlessly in environments with elevated temperatures, providing exceptional filtration efficiency. Capable of capturing at least 99.97% of particles as small as 0.3 microns, they are designed to withstand temperatures ranging from 250°C to 350°C (482°F to 662°F), and even higher in some cases.

Built with durability in mind, HTHE filters feature stainless steel frames, heat-resistant gaskets, and specialized filter media that can endure thermal stress without compromising performance. These filters are indispensable in industries that demand high precision and sterility, such as aerospace, pharmaceuticals, laboratories, and manufacturing processes, ensuring that air quality remains pristine even under extreme heat conditions.

Get A Free Quote

Features

  • Grades: M5, M6, F7, F8, F9
  • MERV Ratings: MERV9, MERV10, MERV11, MERV12, MERV13, MERV14, MERV15
  • Filter Material: Ultrafine glass fibers
  • Frame Options: Galvanized steel or aluminum
  • Temperature Range: Designed to operate at elevated temperatures between 250-350°C (482-662°F) or higher
  • Durable Construction: Withstands extreme heat without compromising structural integrity
  • Secure Seals & Gaskets: Prevent air bypass and leaks for consistent performance
  • Efficiency: 99.97% or higher for particles as small as 0.3 microns in diameter

Applications

  • Aerospace: Ensures air quality in high-heat environments during aircraft manufacturing and maintenance.
  • Pharmaceuticals: Critical in maintaining sterile air in drug production areas and cleanrooms.
  • Laboratories: Protects sensitive experiments by filtering contaminants in high-temperature lab settings.
  • Manufacturing: Ideal for industrial processes where high heat and particle removal are necessary, such as metal processing and electronics.
  • Food Processing: Maintains hygiene and prevents contamination in high-temperature food production environments.
  • Semiconductor Manufacturing: Filters airborne particles in cleanrooms to protect sensitive semiconductor components during production.

Specifications

Filtration GradeDimensions (mm) W*H* DFilter Area (㎡)Rated Air Flow (m³/h)Wind Velocity Test (m/s)Initial Resistance (Pa)
H13610*610*1207.047500.56190
H13610*610*29221.2522001.64
H13610*1220*29245.544501.66
H14610*610*1207.047500.56220
H14610*610*29221.2522001.64
H14610*1220*29245.544501.66

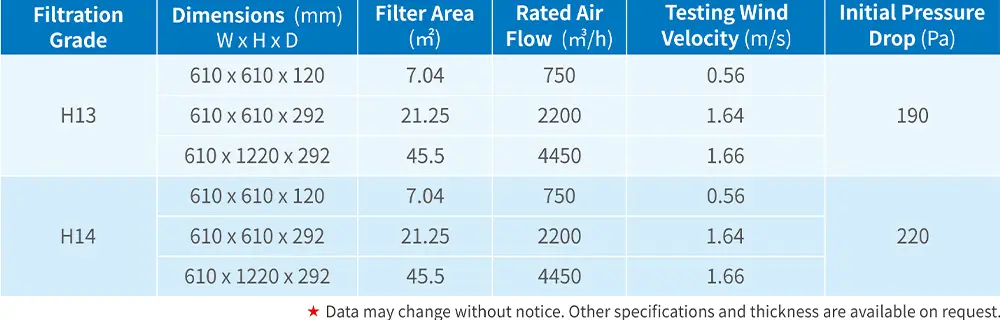

High Temperature High Efficiency Filter data sheet

Technical Data

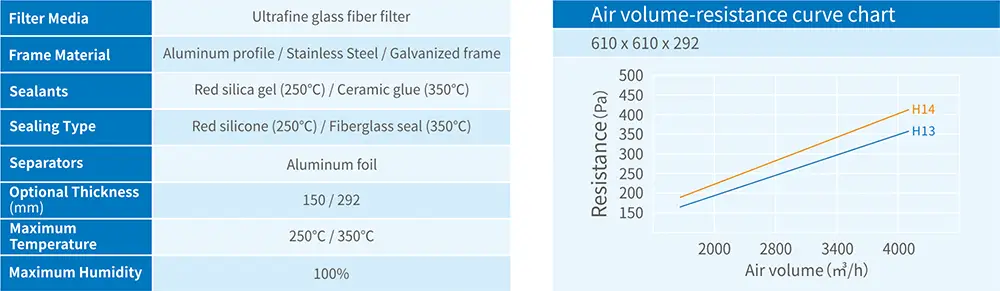

High Temperature High Efficiency Filter data sheet1

Custom Solutions

Please send us your requirements for custom sizes and thicknesses.
