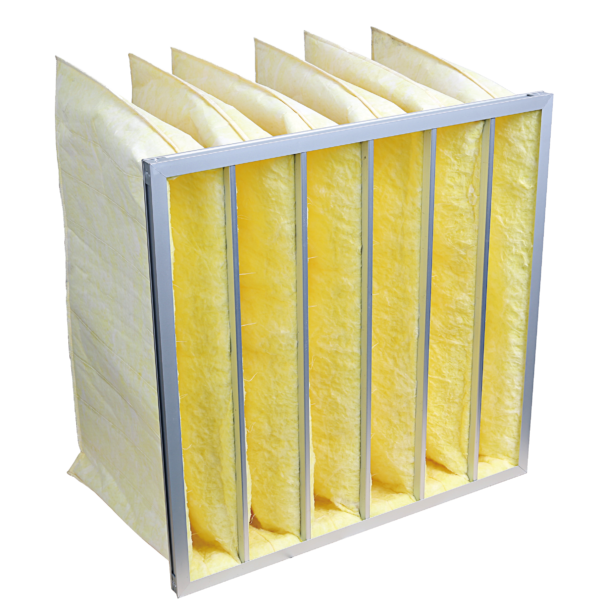

Fiberglass Pocket/Bag Filter

Fiberglass pocket/bag filters are designed with multiple pockets made from high-quality fiberglass filter media, offering exceptional particle capture efficiency. These filters are highly effective in removing dust, pollen, mold spores, and other airborne contaminants, making them ideal for various industrial and commercial applications.

The pocket design provides a large surface area, which not only increases the filter’s dust-holding capacity but also extends its service life. This design ensures that the filter can maintain its performance for longer periods, reducing the frequency of replacements.

Moreover, fiberglass pocket filters maintain minimal airflow resistance, promoting energy-efficient operation within HVAC systems. The combination of their durable construction and long service life makes them an excellent choice for maintaining clean and healthy indoor air, while also helping to reduce long-term maintenance costs.

Get A Free Quote

Features

  • Superior Filtration Efficiency: Highly effective at removing dust, pollen, mold spores, and other airborne contaminants.
  • Durable Construction: Made from high-quality fiberglass media to ensure long-lasting performance.
  • Ample Surface Area: Pocket design increases dust-holding capacity and extends filter life.
  • Energy Efficiency: Maintains minimal airflow resistance, optimizing HVAC system performance.
  • Low Maintenance Costs: Designed to reduce the frequency of filter replacements, cutting down overall maintenance costs.

Applications

  • HVAC Systems: Ideal for use in commercial, industrial, and residential HVAC systems to maintain clean indoor air.
  • Air Quality Control: Used in various industries to filter airborne pollutants, including dust, allergens, and mold spores.
  • Hospitals and Healthcare: Ensures clean and healthy air in healthcare facilities by removing harmful particles.
  • Manufacturing Plants: Effective in industrial environments to maintain air quality by filtering dust and other contaminants.
  • Offices and Commercial Spaces: Enhances indoor air quality in offices, shopping malls, and other commercial buildings.
  • Educational Institutions: Helps maintain clean air in schools, colleges, and universities, promoting a healthier environment for students and staff.

Specifications

Filtration GradeDimensions (mm) W*H* DNumber of BagsFiltration Area (㎡)Rated Air Volume (m³/h)Initial Resistance (Pa)Final Resistance (Pa)
M5287*595*55032.12100055200
M5595*595*55063.86200055
M5595*595*60085.68295055
M6287*595*55032.12100070250
M6595*595*55063.86200070
M6595*595*60085.68250070
F7287*595*55032.121000100300
F7595*595*55063.862000100
F7595*595*60085.682950100
F8287*595*55032.121000130450
F8595*595*55063.862000130
F8595*595*60085.682950130
F9287*595*55032.121000145450
F9595*595*55063.862000145
F9595*595*60085.682950145
Fiberglass Pocket bag air Filter data sheet

Custom Solutions

Please send us your requirements for custom sizes and thicknesses.
