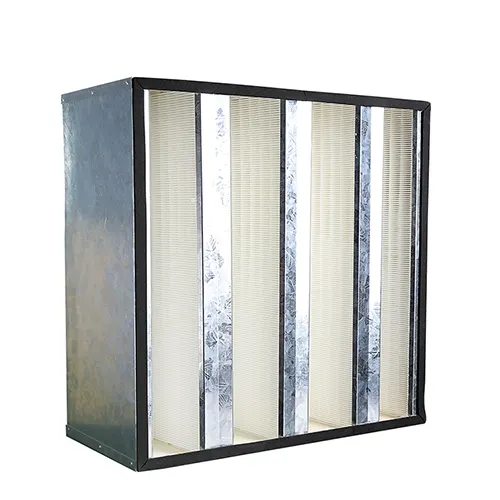

Compact High-Efficiency V-Bank Filter

V-Bank filters are engineered to deliver top-tier air filtration solutions. The unique V-shaped design substantially increases the available filter media surface area, making them exceptionally effective at capturing a wide range of airborne particles.

These filters are known for their exceptional filtration efficiency, capable of trapping contaminants such as dust, pollen, mold spores, bacteria, and even fine particulate matter (PM2.5).

You can also find V-Bank high-efficiency filters in the exhaust air and recirculation applications to better protect air handling units.
With these filters, airflow won’t be changed in the HVAC systems, except those designed for turbulent air systems.

Get A Free Quote

Applications

·V-Bank style high-efficiency filters are great serving as the second filter stage or can be the prefilters for cleanroom applications where a high level of cleanliness is required in the air conditioning system. V-bank filters can help improve the air quality further protecting the main or final filters in HVAC.

· V-Bank style high-efficiency filters are also used in industrial, commercial, animal husbandry, pharmaceutical, semi-conductor, electronics, healthcare facilities, and food process applications.

Features

  • Grade: M6, F7, F8, F9, H10, H11, H12, H13, H14; H15, H16, UH17, UH18, UH19
  • MERV11, MERV12, MERV13, MERV14, MERV15, MERV16-19
  • Frame options: Galvanized steel, aluminum, stainless steel or ABS plastic
  • Filtration material: fiberglass or polypropylene
  • The V-shaped design maximizes the available surface area
  • High efficiency, allowing a high airflow rate
  • Low operation and maintenance cost, convenient for installation
  • High dust-holding capacity
  • Temp. Resistance: Up to 80℃
  • Humidity Resistance: Up to 80%
