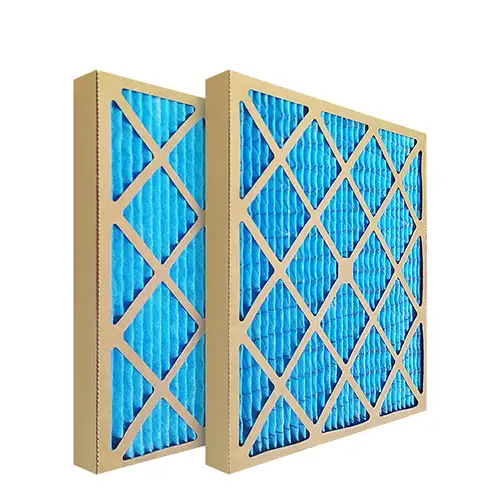

Cardboard Frame Pleated Panel Filter

The Cardboard Frame Pleated Panel Filter is a cost-effective and reliable air filtration solution designed to enhance air quality across diverse applications, from pig farms to industrial settings.

Crafted with a sturdy imported cardboard frame and PET fiber filter material, this filter is reinforced with a metal mesh for added durability and structural integrity, ensuring long-lasting performance even in demanding environments.

Its pleated design maximizes the filtration area, providing high dust-holding capacity and efficient pre-filtration to capture larger particles like dust, pollen, and debris before they reach advanced filtration systems.

Features

High Dust Capacity: Designed with a large filtration area, ideal for capturing dust and extending the lifespan of downstream medium- and high-efficiency filters.
Durable Materials: Features an imported cardboard frame and PET fiber filter material, supported by a metal mesh for added stability and longevity.
Flexible Thickness Options: Available in 22mm, 44mm, or 90mm, allowing customization for various ventilation systems.
Cost-Effective Pre-Filtration: Primarily used for pre-filtration, it removes larger particles like dust and debris, reducing the load on advanced filters.

Applications

Pig Farms (ASF Prevention): Perfect for ventilation systems in pig farms, ensuring cleaner air intake. In Southeast Asia’s ASF-prone regions like Vietnam and Thailand, it acts as an initial barrier, filtering dust and debris to protect high-efficiency filters (e.g., HEPA or V-bank) targeting ASF aerosols.
Industrial Ventilation Systems: Used in factory workshops (e.g., manufacturing, textile, or food processing) to remove dust and particles, protecting equipment and improving air quality for workers.
Commercial Buildings: Ideal for pre-filtration in central air conditioning systems of offices and malls, capturing dust and pollen to enhance indoor air quality.
Medical Facilities: Applied in non-sterile hospital areas (e.g., waiting rooms, corridors) to reduce dust and bacteria spread, supporting hygiene standards.
Agricultural Greenhouses: Employed in greenhouses or plant factories to filter external air, removing dust and insects to protect crops in tropical climates like Southeast Asia.

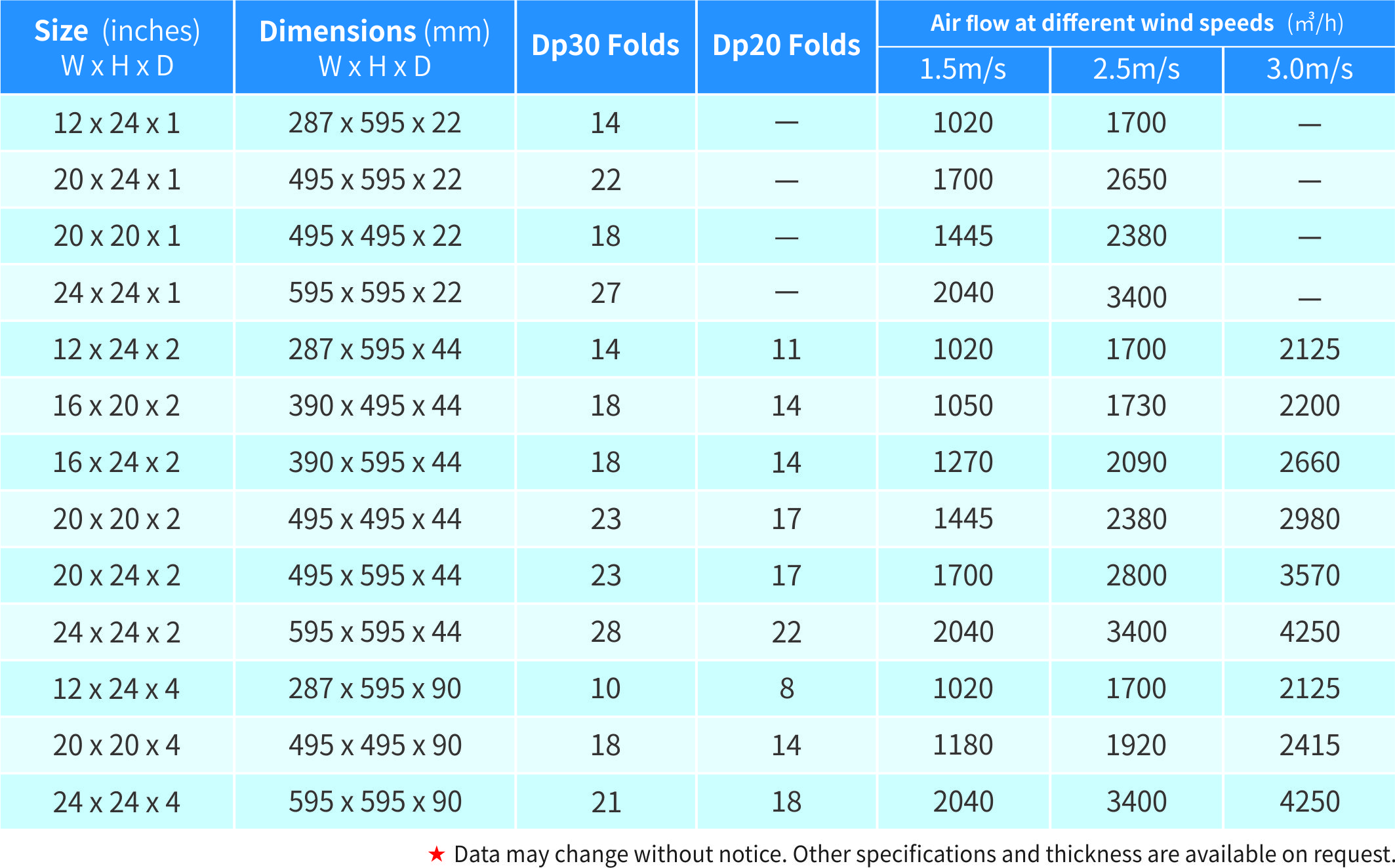

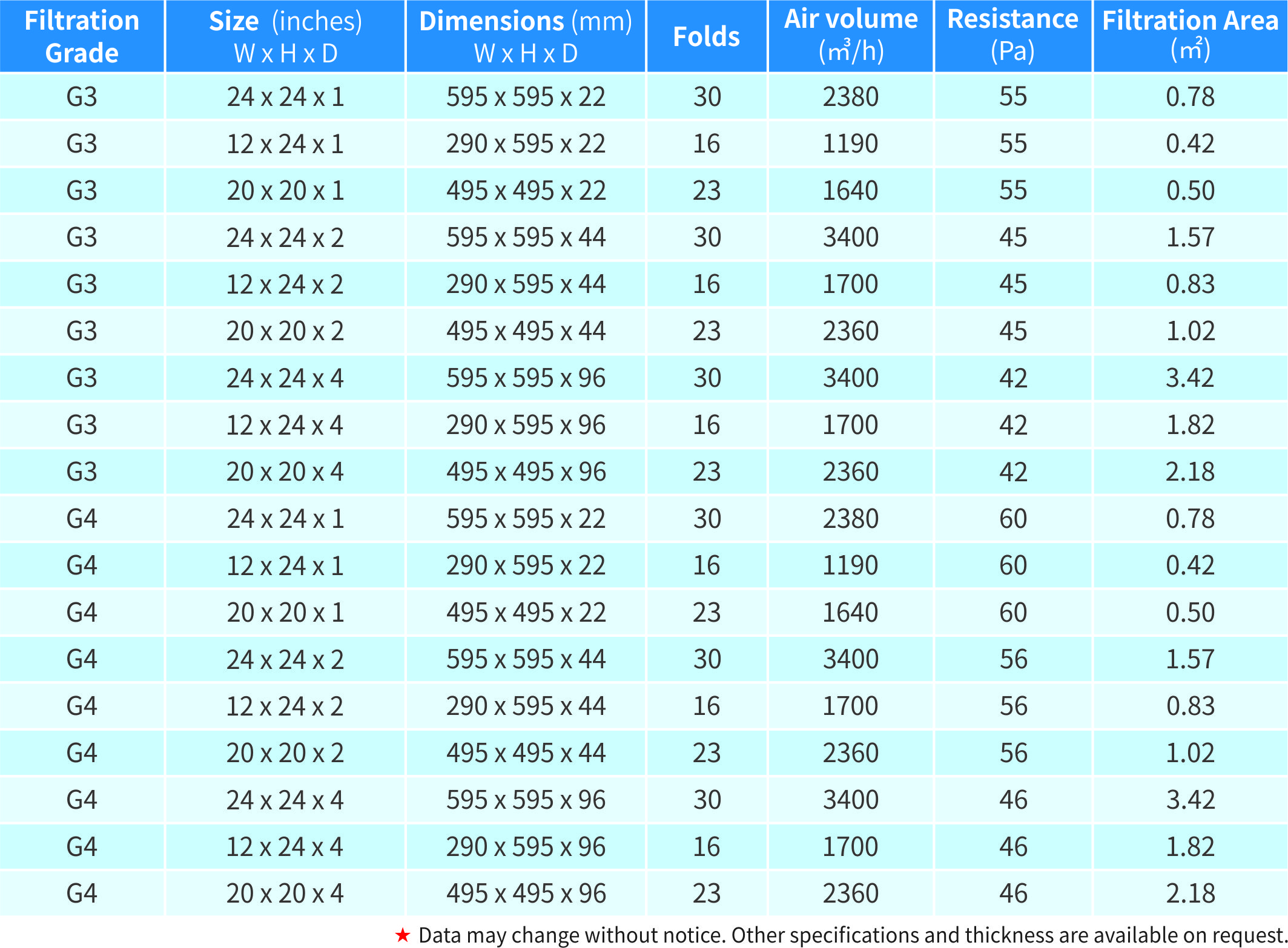

Specifications

Cardboard Frame Pleated Panel Filter data sheet

Document Download

Custom Solutions

Please send us your requirements for custom sizes and thicknesses.
